- Page 1 Diffustik User Manual Version 1.2.2 Date 17th October, 2014...
-
Page 2: Table Of Contents
User Manual Diffustik ..............3 ELCOME TO HERRY ..................4 IFFUSTIK ............ 4 ESCRIPTION AND COPE OF ELIVERY 2.1.1 ..................4 ESCRIPTION 2.1.2 ................5 COPE OF ELIVERY ....................6 ETUP 2.2.1 ................8 LECTRONIC 2.2.2 ..................9 HUTTER 2.2.3 ............. -
Page 3: Welcome To Blue Cherry
The copyright for Blue Cherry is owned by Geratherm Respiratory. Permission is given to use the Blue Cherry software provided on the installation CD upon acceptance of the EULA. (see appendix) Blue Cherry™... -
Page 4: Diffustik

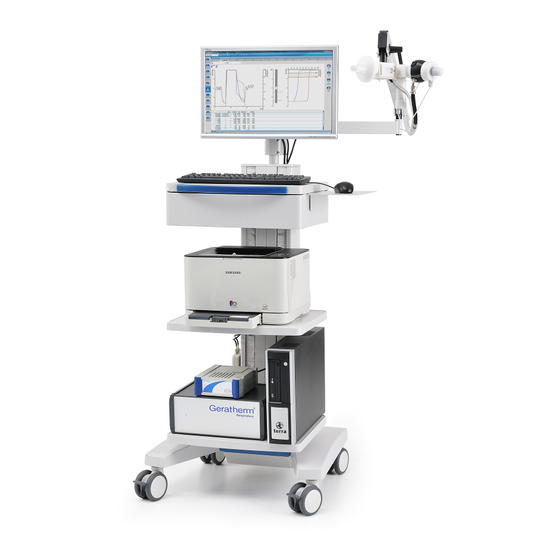

Description and Scope of Delivery 2.1.1 Description The medical device Diffustik is a PC based system, which is used for the determination of the diffusion capacity in lung function measurements. It could be used as a single device or in combination with other products of Geratherm Respiratory. -
Page 5: Scope Of Delivery
Diffustik graphical data can be displayed and printed. The main application of the Diffustik is PFT measurement used in clinical environment. 2.1.2 Scope of Delivery The standard scope of supply for the Diffustik includes the following components: Item Description Diffustik... -
Page 6: Setup
It is recommended to the operator to perform all described methods to clean, setup, sterilize and disinfect the device. The connectors of the Diffustik are located at the back side of the device. Connect a grounded power supply cable to the AC 230V input (1). Now connect one of the bus connector (2) with the bus connector of the gas analyser and the remaining bus connector with the flow electronic. - Page 7 Extension cords must not be used. On request Geratherm Respiratory provides diagrams, parts lists, descriptions, setting instructions as well as other documents, which could help the operator to setup, maintain and repair the device.
-
Page 8: Electronic Unit
User Manual Diffustik 2.2.1 Electronic Unit Connect the closing head (2) of the shutter unit to the dovetail groove at the holder plate of the stand (3). After this plug the body of the electric unit (1) as far as it will go onto the closing head and connect the connection cable of the electric unit with the jack at the bottom of the stand. -
Page 9: Shutter Unit
User Manual Diffustik 2.2.2 Shutter Unit Now move the shutter (1) as far as it will go into the closing head (2). After that, connect the junction cable to the jack of the electric unit. 2.2.3 Installation of the demand valve If the Bodystik includes the option CO Diffusion the demand valve has to be connected additionally. -
Page 10: Flow Sensor Installation
User Manual Diffustik At last connect the gas sample hose (1) with the Luer Connection of the closing head and after that the gas supply hose (2) with the compressed air supply of the stand. Ensure that all connections are connected accurately and without too much power. -
Page 11: Connection On Diffustik
(2). 2.2.5 Connection on Diffustik Connect the provided power supply to the jack of the Diffustik. Now connect the Diffustik via the provided RS232 cable to a free RS232 port at your computer. 2.2.6 Power on the Diffustik First connect the power supply to an unused jack of the multiple socket outlet of the medical cart. -
Page 12: Security
Geratherm Respiratory is responsible for the security and reliability of function of the Diffustik, as such only authorized personnel should perform changes or repairs to the system. Please consult your Geratherm Respiratory specialist service centre for any repairs. This... -
Page 13: Electromagnetic Compatibility
2.3.2 Secure use of Diffustik The Diffustik is a medical device to perform CO-Diffusion tests. It is highly recommend that the user observes all warning notices in order to ensure a safe use of the device. Following parts of the measurement... - Page 14 The Diffustik should not be used in conjunction with multiple connection plug sockets or extension leads. Diffustik must only be used with the tool and gear wagon provided by Geratherm Respiratory. The tool and gear wagons multiple connection plug socket may be loaded with up to 1000 VA.
-
Page 15: Cleaning And Disinfecting The Flow Sensor And Shutter
Remove excess fluids using a dry cloth. A surface and/or wisp disinfection is designated for the Diffustik. Please attend to the additional details in the chapter disinfection. The device should not be exposed to rain or other humidity and should not be operated in wet environments. -
Page 16: Combination With Other Devices
User Manual Diffustik 2.3.4 Combination with other devices Connecting additional USB devices and high processor load can reduce the sample rate and therefore cause an error. We strongly recommend not connecting additional USB devices except mouse, keyboard and printer and not installing additional software. - Page 17 User Manual Diffustik Situation Medical used room Non-medical Possible Within patient Out of used room solution area patient area resource A and B within patient area IEC 60601 IEC 60601 resource A and B for B: additional within patient area...
-
Page 18: Disposal
2013. The identifier |8|401| is a product specific code. The remaining digits define the device number of the Diffustik. In this example number 1. REF: designates the part number for the Diffustik 40 700. DIFFUSTIK_MAN_ENG_V1.2.2_REV01.DOCX... -
Page 19: Product Labelling Analyzer
User Manual Diffustik 2.3.7 Product labelling analyzer Example of typical product labelling: SN: designates the serial number for the device. The first 2 digits define the manufacturing year. The example 13 shows the device was manufactured in 2013. The identifier |8|402| is a product specific code. The remaining digits define the device number of the analyser. -
Page 20: Used Symbols
Separate collection of electro and electronic devices IPX0 Indicates no protection against dripping water Manufactured according RoHS directive 2002/95/EC Geratherm Respiratory devices carry this CE no according to directive 93/42 ECC for medical devices and fulfil the requirements of annex II of 0494 the directive DIFFUSTIK_MAN_ENG_V1.2.2_REV01.DOCX... -
Page 21: Maintenance
User Manual Diffustik Maintenance The Diffustik has been designed to ensure it is a low maintenance device. Only minor maintenance is required to ensure trouble free operation. Interval Maintenance work Once a day Flow sensor, flow sensor housing and shutter unit cleaning and disinfect... -
Page 22: Warranty
Geratherm Respiratory, and respectively equal to installation date if purchased from a sales partner. All service must be provided by Geratherm Respiratory or an authorized service partner of Geratherm Respiratory. Geratherm Respiratory will not accept warranty claims on any unauthorised repairs. -
Page 23: Technical Data Diffustik
User Manual Diffustik Technical Data Diffustik Modifications are not permitted with this device Technical Data: Dimensions: 210 mm x 175mm x 75mm (L x w x h) Weight: 1120 g Electrical data: IP protection type: IPX0 IEC 529 Protection class: Classification according to MDD: IIa 93/42/EWG date 14.06.93 Appendix IX... -
Page 24: Technical Data Analyser
IIa 93/42 EWG date 14th June, 1993 Appendix IX MDD: Application component type : BF according to VDE 0750 (DIN EN60601-1) PC interface: Geratherm Respiratory spezifisches Bus System Power supply: 230V AC Power consumption ca. 25VA CO Analyser:...
