FRONTALS
INFINITY PLUS

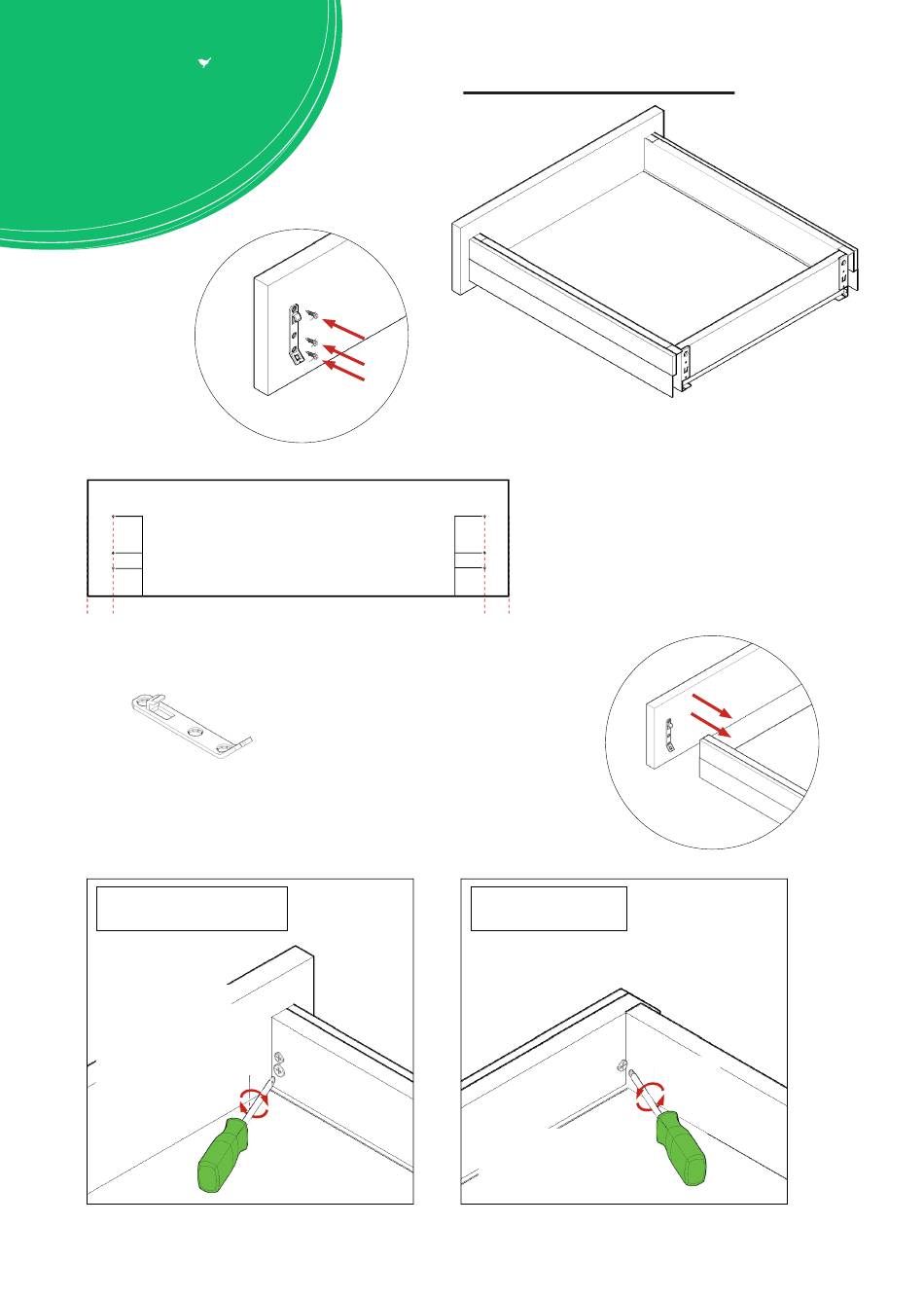

Attachment
Guide
4 1/2"
2 7/8"
2 13/16"
1 1/2"
Frontal Fixings
DRAWER FRONTAL
ADJUSTMENT
Loosen top screw.
Turn bottom screw
to adjust drawer
frontal height, once
in desired position
re-tighten the top
screw.
Page 1
B
B
B
4 1/2"
Standard
Drawer
2 7/8"
2 13/16"
Step 2.
Attach the draw front by pushing the
frontal onto the sides, aligning the
mechanism with the fixings.
For Internal Use:50-WKIN00143_INFINITY+_DRAWER_ATTACHMENT_GUIDE_Rev1

STANDARD DRAWER

Step 1.
Attach the frontal fixings to the draw front
using 3 x
5/8"
the spiked positions.
1 1/2"
DRAWER REAR
ADJUSTMENT
Turn screw to adjust
rear elevation of
drawer.
STANDARD DRAWER
screws (B) per bracket using
