I N F I N I T Y P L U S
Base Unit

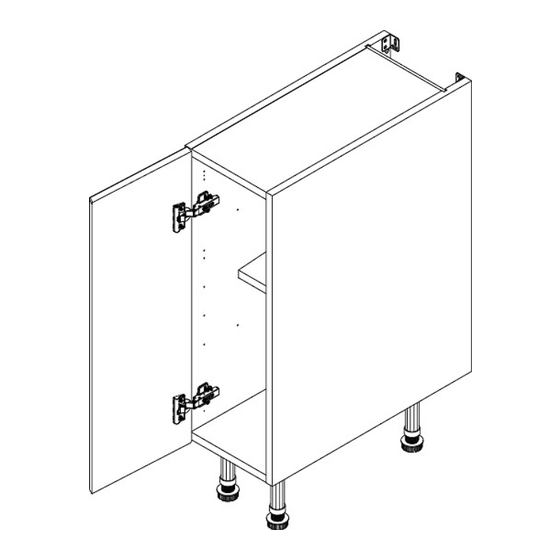

150 - 250 Base (Door, Solid Top, 4 Legs) - Fitting Guide
150

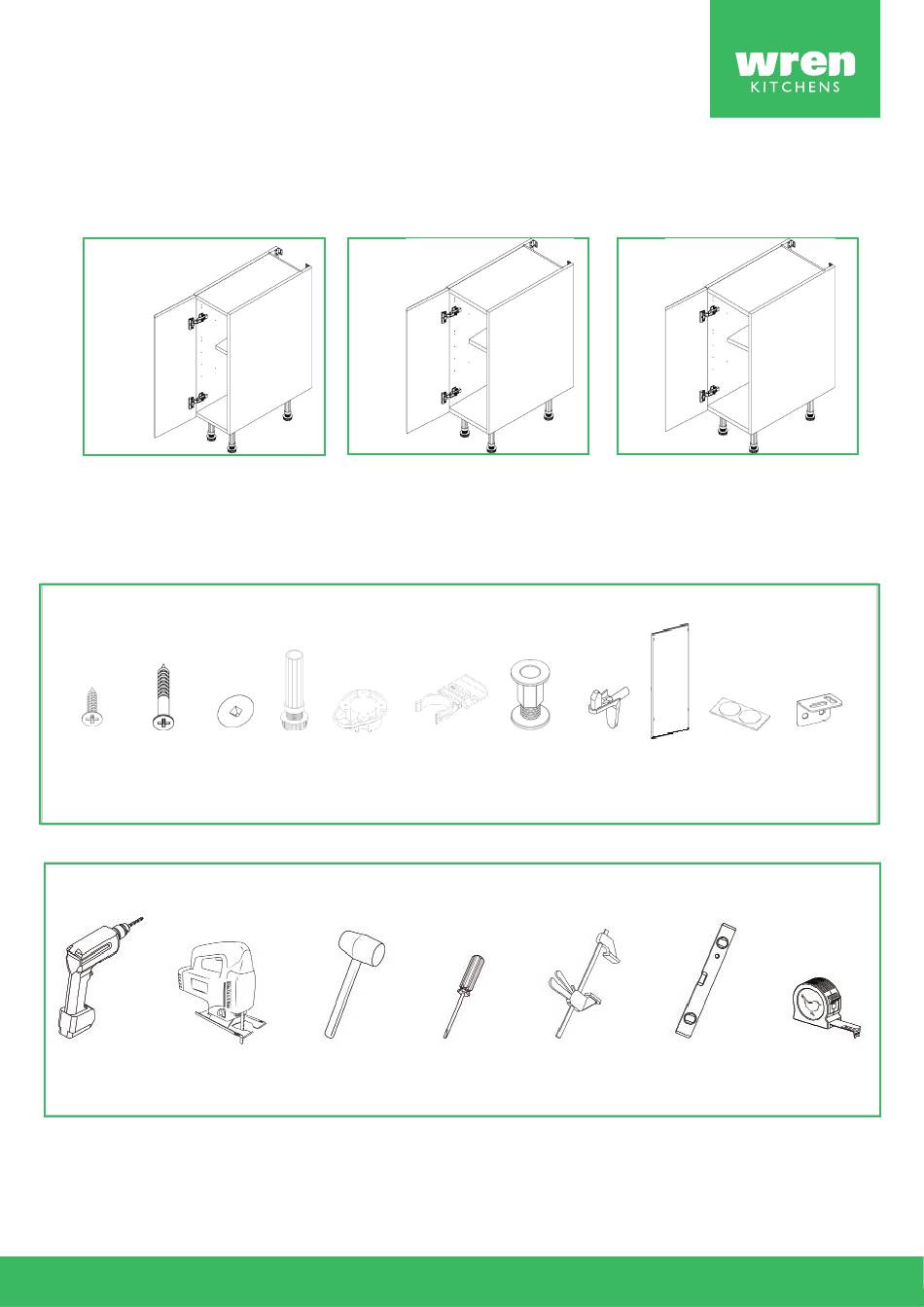

Unit Parts
32x 15mm
6X 30mm
18x Cover
screws
screws
Caps
Tools Required
Drill
Jigsaw
200
4x Legs
4x Leg
2x Plinth
Brackets
Clips
Mallet
Screwdriver
250
1x Space
4x Shelf
1x Shelf
Plug
Pegs
Clamp
Spirit Level
2x L-Brackets
5x Door Buffers
Tape Measure
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren Kitchens INFINITY PLUS 150
Summary of Contents for Wren Kitchens INFINITY PLUS 150
- Page 1 I N F I N I T Y P L U S Base Unit 150 - 250 Base (Door, Solid Top, 4 Legs) - Fitting Guide Unit Parts 32x 15mm 6X 30mm 18x Cover 4x Legs 4x Leg 2x Plinth 2x L-Brackets 1x Space 4x Shelf...
- Page 2 Remember to take care when unpacking. Please keep your workspace clean, clear and tidy when working. This will help keep all items safe from any damages. Any waste cardboard or plastic should be flattened down and placed in the bin. A minimum of two people will be needed to lift the unit.
- Page 3 Fixing the leg bases Secure each of the leg brackets into place with 4x15mm screws per bracket. Inserting the legs Push each leg firmly down into the leg bracket. Adjusting each leg to 155mm. You can adjust the legs to the correct height by turning the foot of the leg clockwise or anti-clockwise.
- Page 4 Lifting the unit into place When lifting the unit into place do not tilt as this can damage the legs. Place the unit against the wall and align it with the wall markings that will have been drawn during the room preparation stage. Use a spirit level to ensure the unit is level from front to back, left to right, and diagonally.
- Page 5 Finding the shelf height Position the shelf pegs into the pre-drilled holes. The shelf can be positioned at 3 different heights, as shown in the diagram. Place the shelf into position so the pin of the View of shelf peg is inserted into the pre-drilled holes. the inside of the unit Inserting the shelf into position...
- Page 6 Removing the hinge cover cap Use a flathead screwdriver to remove the hinge cover cap by inserting it into the slot of the cover cap and twisting. Adjusting the hinge To adjust the hinges, use a screwdriver as required at points 1 and 2. Point 1 -Will adjust the frontals left and right.
- Page 7 Cleaning the unit Finally, the unit should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the plinth clips and the remaining 15mm screws. These will be used later when attaching the plinth. Page 7...
