Setting - SMC Networks E-MY2B Series Operation Manual

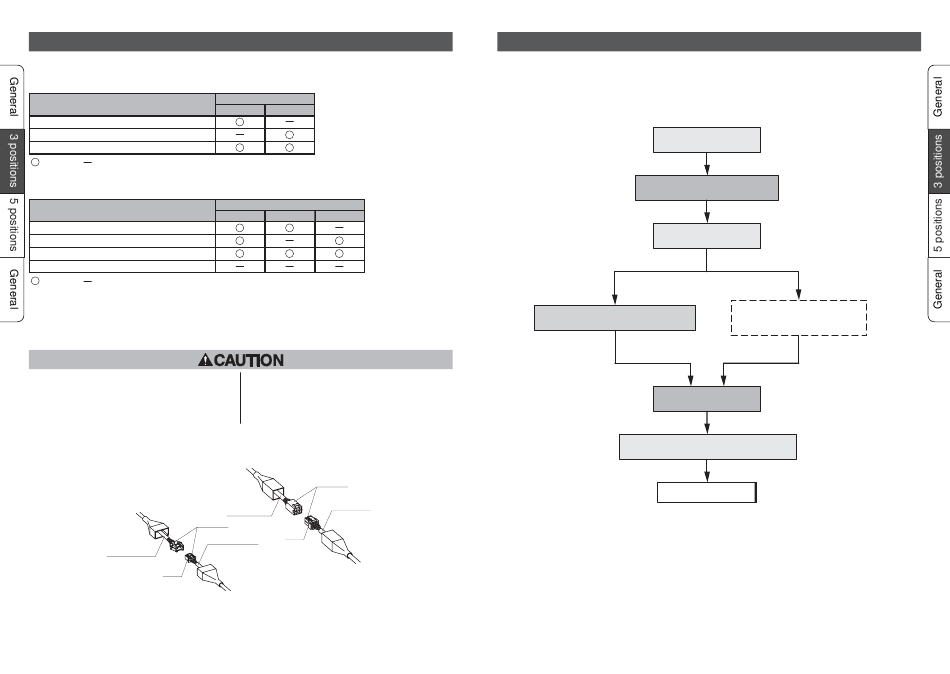

Example of Internal Circuit and Wiring (continue)
Signal through I/O cable
Input signal
Command
Command to operate motor side
Command to operate end side
Command to operate intermediate stop
means ON, means OFF
Output signal
Actuator condition
When motor side positioning completed
When end side positioning completed
When Intermediate stop positioning completed
During actuating
means ON, means OFF
Connection of the motor and the controller
(When controller separated type is used)
Do not pull the cable forcefully when
removing attaching / detaching the
connector.
Cable might be disconnected.
•Mind the direction of the connector and insert them until they click when connecting the cable.
•When pulling out the cable, pull them out while pressing connector lever.
Connector
Encoder cable of
the actuator
Lever
14
Symbol
IN1 IN2
Symbol
OUT1 OUT2 OUT3
Turn off the power during connecting.
The slider may run suddenly.
Connector
Motor cable of
Motor cable of the controller
the actuator
Encoder cable of Lever
the controller

Setting

Setting Procedures
Confirm the product is installed and connected properly and perform setting in the following
procedure.
1. troke adjustment
2.Application of power supply
3. troke learning
etting of intermediate
position is required
4. etting of intermediate position
5.Trial operation
6. etting of speed and acceleration
etting completed
etting of intermediate
position is not required
Intermediate position is set
to the center of stroke
15
