Installation (continue)
Connection with external guide
Connect an external guide by using the floating
structure.
Keep the resistance of the external guide not
more than the allowable resistance.
When the floating bracket is used
Installation of a holding bolt.
Install the pin and the conical spring washer in the slider with a holding bolt.
Slider Pin
Floating Bracket
(MYAJ25)
Application
Mounting direction 1
(to minimize the installation width)
Work
Guide
E-MY2B Series
Floating bracket
Note) Refer to tha catalog for adjustable range.
8
Allowable external resistance
Nominal size Allowable external resistance
16 10N
25 20N
Conical spring washer Holding bolt
Tightening torque 3 to 3.2N•m
Mounting direction 2
(to minimize the installation hight)
Work
Guide
E-MY2B Series
Floating bracket
Mounting controller (When controller separated type is used)
How to remove controller
Loosen M4 mounting screw shown in fig. 1 and
remove the controller.
Direct mounting
Use M4 mounting screw shown in fig. 1 or M5
tap hole to mount the controller.
Mounting by L type bracket
Mount the optional L type bracket on the main
unit using the two mounting screws M5X8L and
install on the facility using hexagon socket head
cap screws as shown in fig. 2.
Mounting by DIN rail bracket
Use set screw to mount optional DIN rail mount
bracket to the body.
When mounting, lower the clamp bracket as in
fig. 3.
Please be noted that some tools may interfere
with clamp bracket.
When setting to DIN rail, place A of fig. 3 into
DIN rail.
While pushing it, fix it by the clamp of screw in fig.
4.
Inadequate pushing may cause falling of parts.

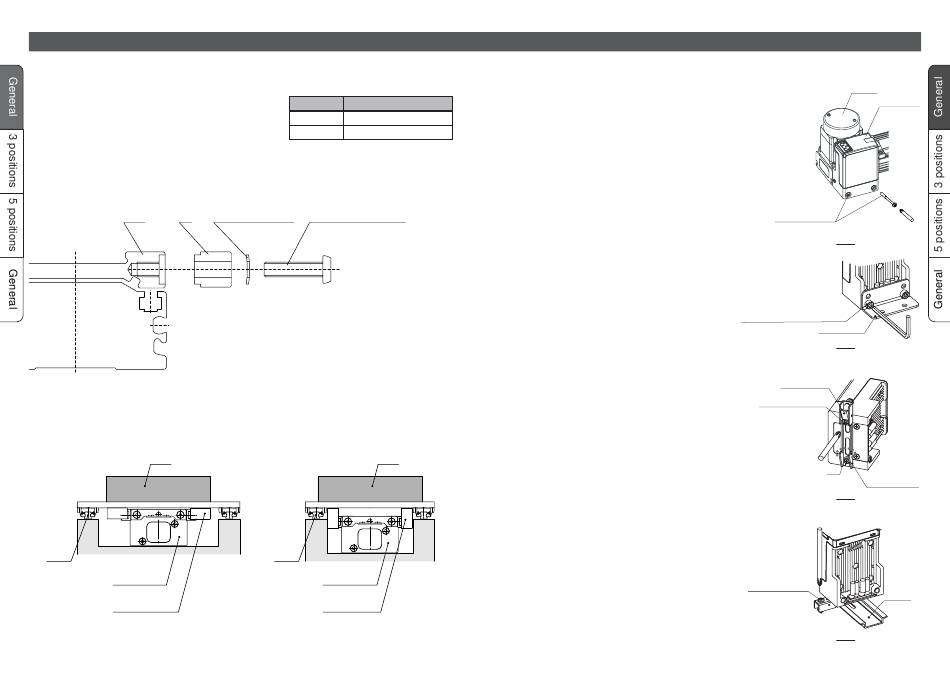

Motor
Controller
Mounting screw
(M4)
fig. 1
Mounting screw (M5)
Tightening torgue 1.3 to 1.4N･m
L type bracket
fig. 2
Clamp bracket
Mounting screw(M3)
Tightening torgue
0.5 to 0.7N m
•
A
DIN rail
mount bracket
fig. 3
Clamp screw(M4)
Tightening torgue
DIN rail
0.4 to 0.6N m
•
fig. 4
