SAFETY (continue)
NOTE
Follow the instructions given below when handling your actuator. Otherwise, the switch may be
damaged or may fail, thereby resulting in malfunction.
•Do not use at voltage over specified voltage.
•Do not apply the load over max.
•Keep the space for maintenance.
•Do not drop and collide the product or give excessive impact to it.
•Hold the body for handling.
•Keep tightening torque.
•Do not install the actuator to the place used as foot base for work.
•Keep flatness of mounting face for actuator within 0.1/500mm.
•Do not give repeated bending and tensile force to the connected cable to prevent the breakage of
the cable.
•Connect wiring properly.
•Do not energize the product during wiring.
•Do not use in the place with dust, particle and splash of water, chemicals and oil to prevent
breakage and malfunction of the product.
•Do not use in the place creating magnetic field to prevent the malfunction of the actuator.
•Do not use in the environment subject to temperature cycle.
•Do not use where close to surge generating source.
•Do not short the load. Short of the load of the controller is indicated as error, but it may cause
over current and break the actuator.
•Do not push setting buttons with the pointed staff to avoid the damage of the buttons.
•Perform maintenance for the product periodically.
4

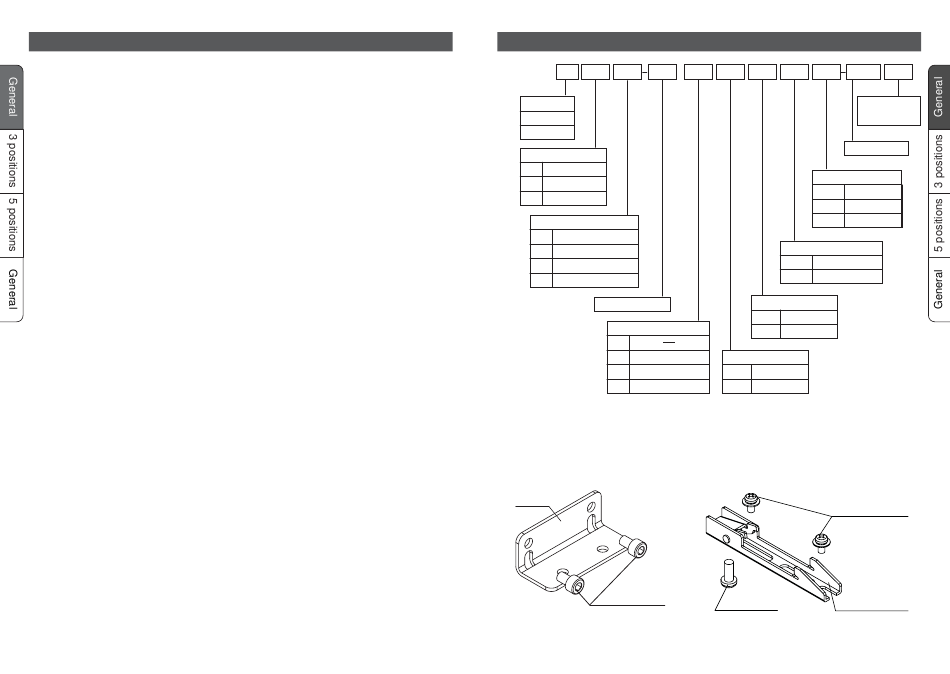

Model Indication Method

E-MY2B 16
100
Nominal size
16
25
Speed type
L Low speed
M Middle speed
Nil Standard speed
Load type
Q Heavy load
Nil Standard load
E Midium load
D Light load
Stroke
Stroke adjusting unit
Nil
M Motor side
E End side
W Double-side
Note) Refer to the catalog for Stroke, Auto switch and Number of auto switches.
Options
•Controller mount bracket
•L type bracket MYE-LB Hexagon socket head screw M5 x 8 (2)
••••••
•DIN rail bracket •••• MYE-DB Cross recessed panhead screw M3 x 6.5 (2)
Clamp screw M4 x 10 (1)
Bracket
Hexagon socket
head screw
L type bracket
(MYE-LB)
T N M M9B
Number of
auto switches
Auto switch
Cable length
M 1m
L 3m
Z 5m
Positioning stop number
Nil 3 positions
A 5 positions
Output type
N NPN
P PNP
Motor placement
T On the top
D On the bottom
Cross recessed
panhead screw
Clamp screw
Bracket
DIN rail bracket
(MYE-DB)
