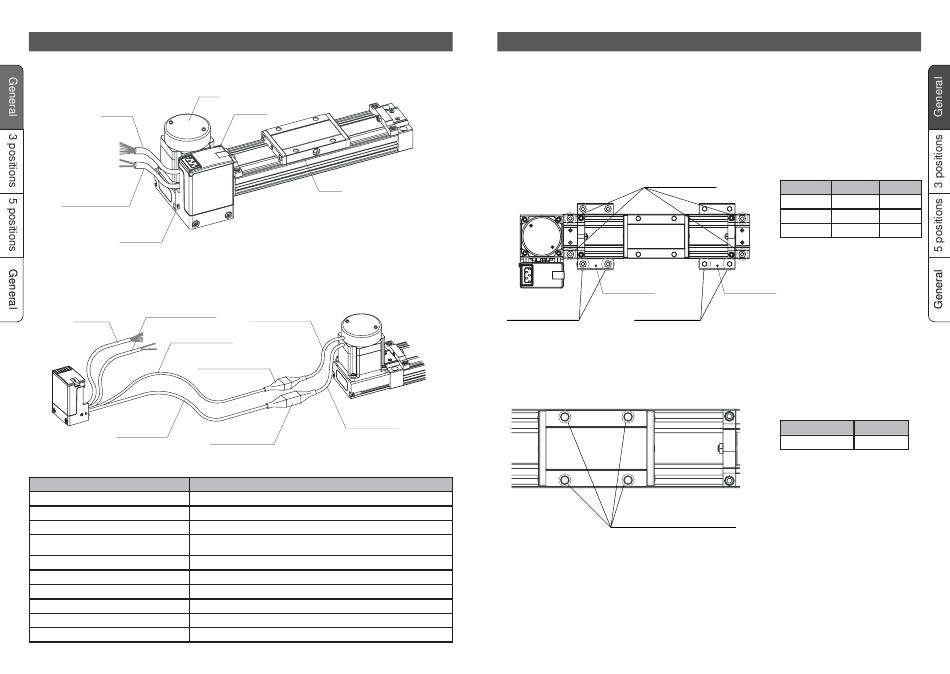

Names and Functions of Individual Parts

Controller integrated type
Motor
I/O cable
Power supply cable
FG terminal
Controller separated type
Power supply cable
I/O cable
Encoder cable of
the controller
Encoder connecting
connector
Motor cable of
the controller
Description
Slider The parts which can move in the actuator
Motor The motor to move the actuator
Power supply cable The power supply line to drive the actuator
The signal line to transmit signal of positioning
I/O cable
completion and command for drive
Controller The unit to control, set and indicate the actuator
FG terminal The terminal to connect FG cable
Encoder cable of the actuator Encoder cable connecting the actuator and the controller
Motor cable of the actuator Motor cable connecting the actuator and the controller
Encoder cable of the controller Encoder cable to separate the controller
Motor cable of the controller Motor cable to separate the controller
6
Controller
Slider
Encoder cable of
the actuator
Motor cable of
the actuator
Motor connecting
connector
Content/Function

Installation

Read "Precautions for Handling" of safety Instruction and "How to install" of this chapter with care
to provide safe and exact measurement for installation of the actuator.
Installation of body
Use 4 mounting holes on the top of the body or nuts inside 2 T slots on the bottom of the body for
installation.
Front view
Mounting holes
Side support A
MY-S25A
Mounting holes Mounting taps
Installation of work
Use 4 taps on the top of slider for installation of work.
Taps hole to installation of work
Precautions for installation
•Do not operate the actuator outside operating temperature range.
•Do not install the actuator in the place which may be used as foot base.
•Keep flatness following mechanical accuracy or equivalent reference for the face where the
actuator is installed.
Also, confirm the flatness is within 0.1/500mm
Mounting holes on the top
Name Type Theread size
Main body Mounting hole M5
Side Support A Mounting hole M5
Side Support B Mounting Tap M6 x1
Side support B
MY-S25B
Installation of work tap
Threaded hole dimension Effective length
M5 depth 8mm 5 to 8mm
•Select screw which
enables effective length of
thread to enter.
