SMC Networks EX250-SMJ2 Installation & Maintenance Manual

EX250-TFI74GB-A
Installation & Maintenance Manual
SI unit - CC-Link compatible
Type EX250-SMJ2
Safety Instructions
The unit and this manual contain essential information to protect
users and others from possible injury and property damage and to
ensure correct handling.
Please confirm that you fully understand the meaning of the
following messages (signs) before reading the text, and always
follow the instructions.
Please read the Installation & Maintenance Manual for related
apparatus and understand it before operating the actuator.
IMPORTANT MESSAGES
Read this manual and follow the instructions.
Signal words such as WARNING, CAUTION and NOTE, will be
followed by important safety information that must be reviewed
carefully.
Indicates a potentially hazardous situation
which could result in death or serious
injury if you do not follow instructions.
Indicates a potentially hazardous situation
which if not avoided, may result in minor
injury or moderate injury.
Provides you helpful information.
Do not disassemble, modify (including change of printed
circuit board) or repair.
An injury or failure can result.
Do not operate outside of the specification range.
Fire, malfunction or damage can result.
Please use it after confirming the specification.
Do not use the product in environments with possible
presence of flammable, explosive or corrosion gas.
Otherwise fire, explosion or corrosion can result.
The product is not designed to be explosion proof.
Do not apply voltages exceeding 250V between a lead
wire and a metal fitting.
Pay attention to perform an insulation test because it could damage
the insulation of the lead wire and cause failure.
These instructions must be followed when using the
product in an interlocking circuit:
• Provide double interlocking through another system
such as mechanical protection.
• Check the product regularly to ensure proper operation.
Otherwise malfunction can cause an accident.
These instructions must be followed when performing
maintenance work:
• Turn off the power supply
• Stop the air supply, exhaust the residual pressure and
verify that the air is released before performing
maintenance work.
Otherwise it can cause injury.
Safety Instructions (continue)
Perform a proper functional check after completing
maintenance work.
Stop operation when an abnormality is observed or the product is not
working properly.
Safety cannot be assured due to unexpected malfunctions.
NOTE
The direct-current power supply should be a UL authorized power
supply.
1.Limited voltage current circuit in accordance with UL508
A circuit to which power is supplied by the secondary coil of a
transformer that meets the following conditions.
• Max. voltage(with no load): less than 30Vrms (42.4V peak)
• Max. current: (1)less than 8A(including when short circuited)
(2)limited by circuit protector (such as fuse) with the
following ratings
No load voltage (V peak) Max.current rating (A)
0 to 20 [V] 5.0
20 to 30 [V] 100 / peak voltage
2.UL1310 compatible class 2 power supply unit or circuit of max.
30Vrms (42.4V peak) or less using a UL1585 compatible class 2
transformer as power supply. (Class 2 circuit)
Follow the instructions given below when handling the product.
Failure to follow instructions may damage the unit.
• Operate the product within the specified voltage range.
• Reserve a space around the unit for maintenance.
• Do not remove labels.
• Do not drop, hit or apply excessive shock to the product.
• Do not bend or apply tensile force to cables, or apply a force by
placing a heavy load on them.
• Connect wires and cables correctly.
• Do not connect wires while the power is on.
• Do not lay wires or cables with the same wiring route as a power line
or high-voltage line.
• Verify the insulation of the wiring.
• Take proper measures against noise such as a noise filter when the
product is incorporated in equipment or devices.
• Select an operation environment according to enclosure(IP67).
• Take sufficient shielding measures when installing the product at the
following place.
(1)A place where a noise due to static electricity etc. is generated
(2)A place of high electric field strength
(3)A place possibly exposed to radioactivity
(4)A place near power cable
• Do not use the product nearby a place where an electric surge is
generated.
• Use the product equipped with a surge absorber when a surge-
generating load such as a solenoid valve is driven directly.
• Prevent foreign matter such as remnant of wires from entering the
product.
• Do not expose the product to vibration and impact.
• Keep the specified ambient temperature range (+5 to +45
• Do not expose the product to heat radiation from a heat source
located nearby.
• Use a precision screw driver with small flat blade when setting rotary
switch and DIP switch.
• Perform maintenance and check at regular intervals.
• Perform a proper functional check.
• Do not clean the product with chemicals such as benzine and thinner.
Specification
General specification
Item
Operating ambient temp. +5 to +45 o C
Operating ambient humidity 35 to 85% RH (No dew condensation)
Storage ambient temp. -20 to +60 o C
10 to 57Hz 0.35mm (Constant amplitude)
Vibration proof
57 to 150Hz 50m/s
150m/s (peak), 11ms three times in each
2
Impact proof
direction ± X, Y and Z
Normal mode : ±1500V Pulse duration 1us
Noise immunity Common mode : ±1500V Pulse duration 1us
Radiation : ±1000V Pulse duration 1us
Withstand voltage 500V AC for 1min.
Insulation resistance 500V DC min10M ohm
Operating environment No corrosive gas and no dust
Electrical and network
Item
19.2 to 28.8V DC
Power for SI/Input Max. 1.1A or less
Block Current Depending on the number of Input
consumption Block stations and sensor
Power voltage
specifications
range Current
consumption
22.8 to 26.4V DC
Power for solenoid
Max 2.0A or less
valve Current
Depending on the number of solenoid
consumption
valve stations and specifications
Output type N-ch MOS-FET Open drain type
Solenoid valve with protection circuit
Solenoid valve
Connection load for 24V DC and 1.5W or less surge
connection
voltage (made by SMC)
spec.
Insulation type Opto coupler type
Residual voltage 0.3V DC or less
station No. 1 to 63
assignment range (assigend by the rotary switch)
o C).
156kbps, 625kbps, 2.5Mbps, 5Mbps,
Baud rate setting
10Mbps,
Solenoid valve
range
(Assigned by the rotary switch)
connection
spec.
Applicable system CC-Link Ver.1.10
Occupied station 2 stations
Station type Remote device station
I/O points Input/32 points Output/32 points

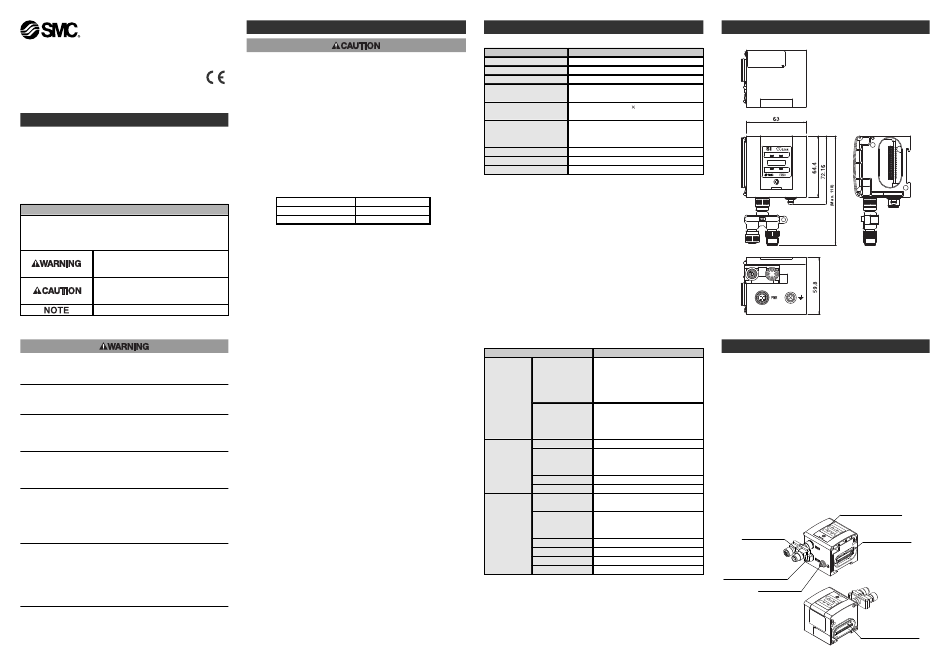

Outline with Dimensions (in mm)
Specification
(Constant acceleration)
2
Names and Functions of Individual Parts
Specification
Body
• Communication connector
To send and receive communication signals through CC-Link line.
• Power supply connector for output equipment, SI unit and Input
block
To supply power to the output equipment such as a solenoid
valve, and output block, SI unit and Input block.
• Output equipment connector
To connect the output equipment such as a solenoid valve and
output block.
• Input block connector
To connect the Input block.
• Indication and address setting panel
To provide LED's to indicate the condition of the unit and the
address setting.
• Ground terminal
To be connected to the ground.
Communication
connector
Power supply connector
for output equipment,
SI unit and Input block
Ground terminal
Indication and address
setting panel
Output equipment
connector
Input block connector
