AUMA SAEx 07.2 Operation Instructions Manual
  1. Manuals
  2. Brands
  3. AUMA Manuals
  4. Controller
  5. SAEx 07.2
  6. Operation instructions manual

AUMA SAEx 07.2 Operation Instructions Manual

Multi-turn actuators
Hide thumbs Also See for SAEx 07.2:
Table of Contents

Advertisement

Quick Links

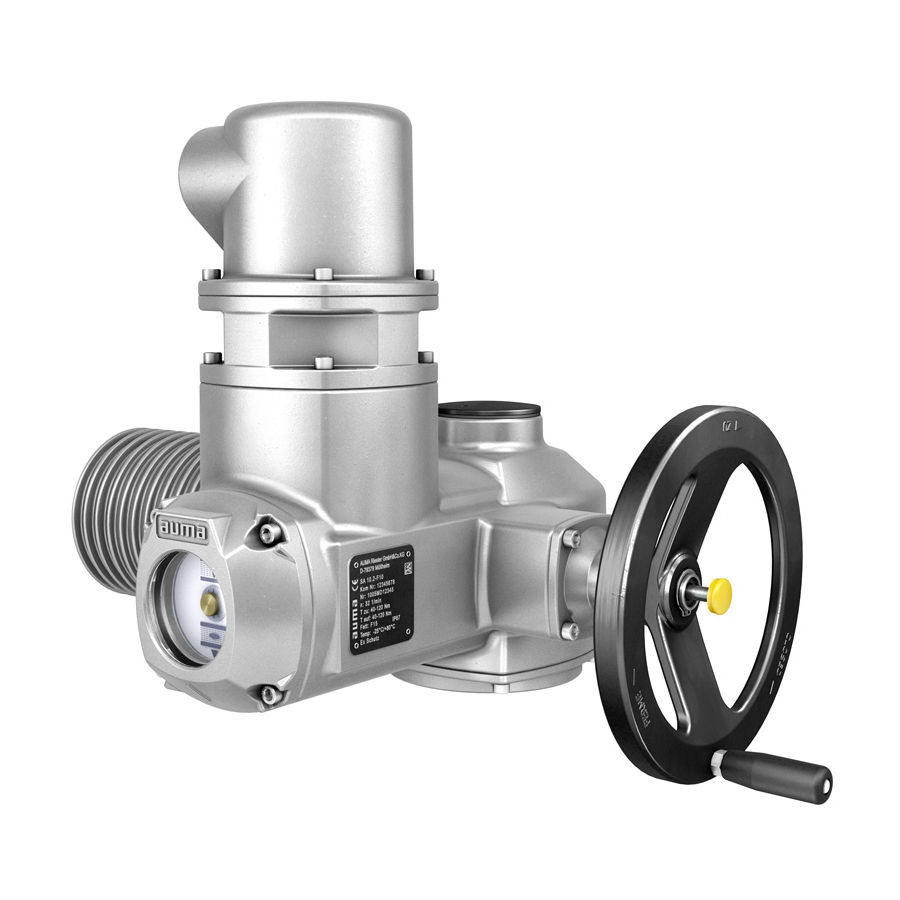

Multi-turn actuators
SAEx 07.2
SAEx 16.2
SAREx 07.2
SAREx 16.2
AUMA NORM (without controls)
Operation instructions
Assembly, operation, commissioning

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAEx 07.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AUMA SAEx 07.2

Summary of Contents for AUMA SAEx 07.2

  • Page 1 Multi-turn actuators SAEx 07.2 SAEx 16.2 SAREx 07.2 SAREx 16.2 AUMA NORM (without controls) Operation instructions Assembly, operation, commissioning...
