DASH PANEL INSTALLATION INSTRUCTIONS

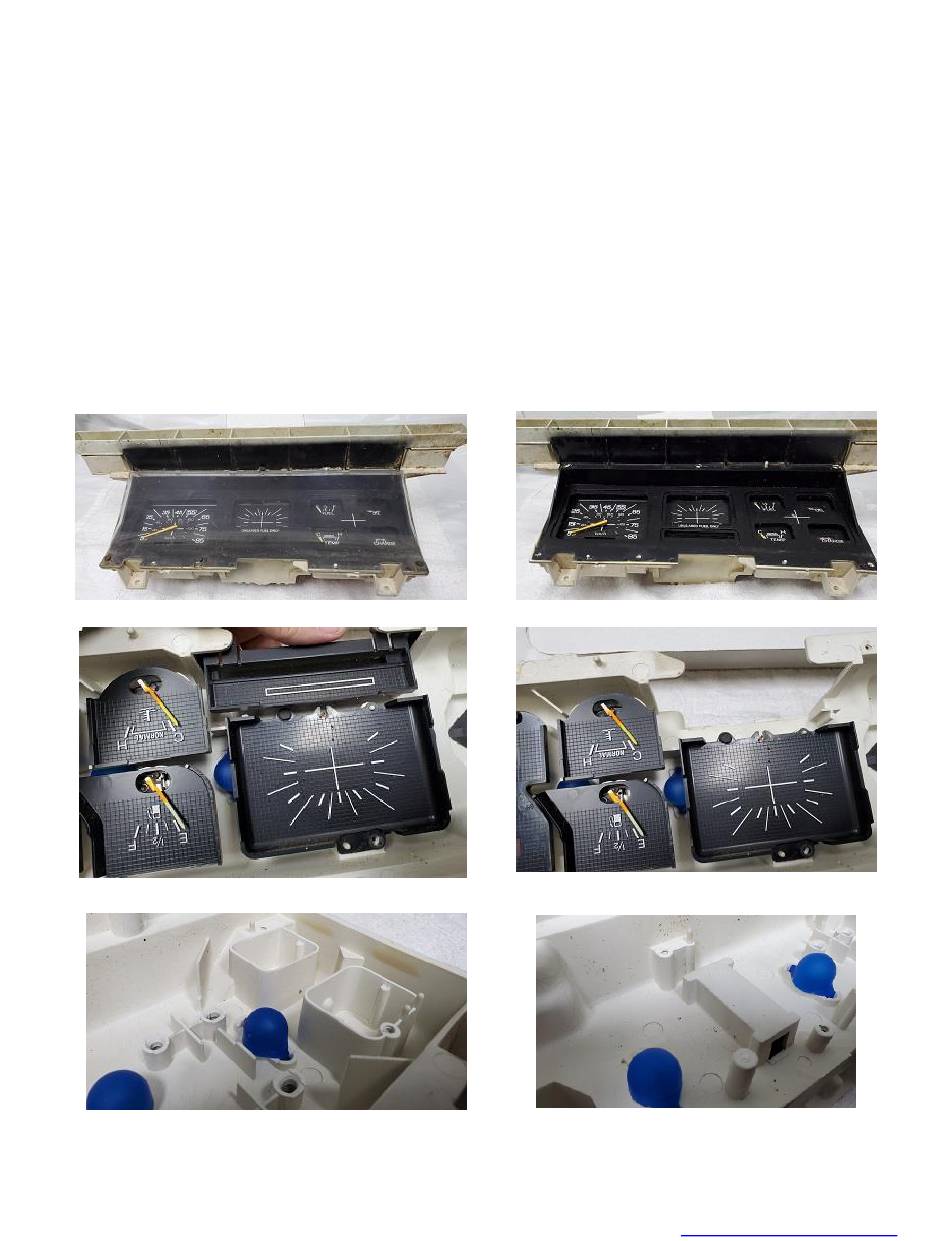

1. Remove stock bezel and housing. Remove all six screws from lens.(Save these screws to reuse
them) remove face plate then remove all the gauges. If not, automatic you will need to remove
block off plate before removing gauges
2. Remove all the Gauge lights but reinstall light holders. The factory warning and turn signal lights
are going to be reused through factory wiring and flexible circuit board. You will be cutting any
needed wires off plug and make connection.
3. Remove four nuts to remove fuel and volt gauges.
4. You will need cut off 5-line up pines to allow dash cluster to set flat.
5. You need to assumable Bolt, Acrylic Lens, spacer , Circuit Board then nylon washer and Nylock
6. Place the new circuit board into the stock gauge housing. Secure into place with stock hardware.
7. Follow the wiring instructions in the next section and wire the circuit boards.
