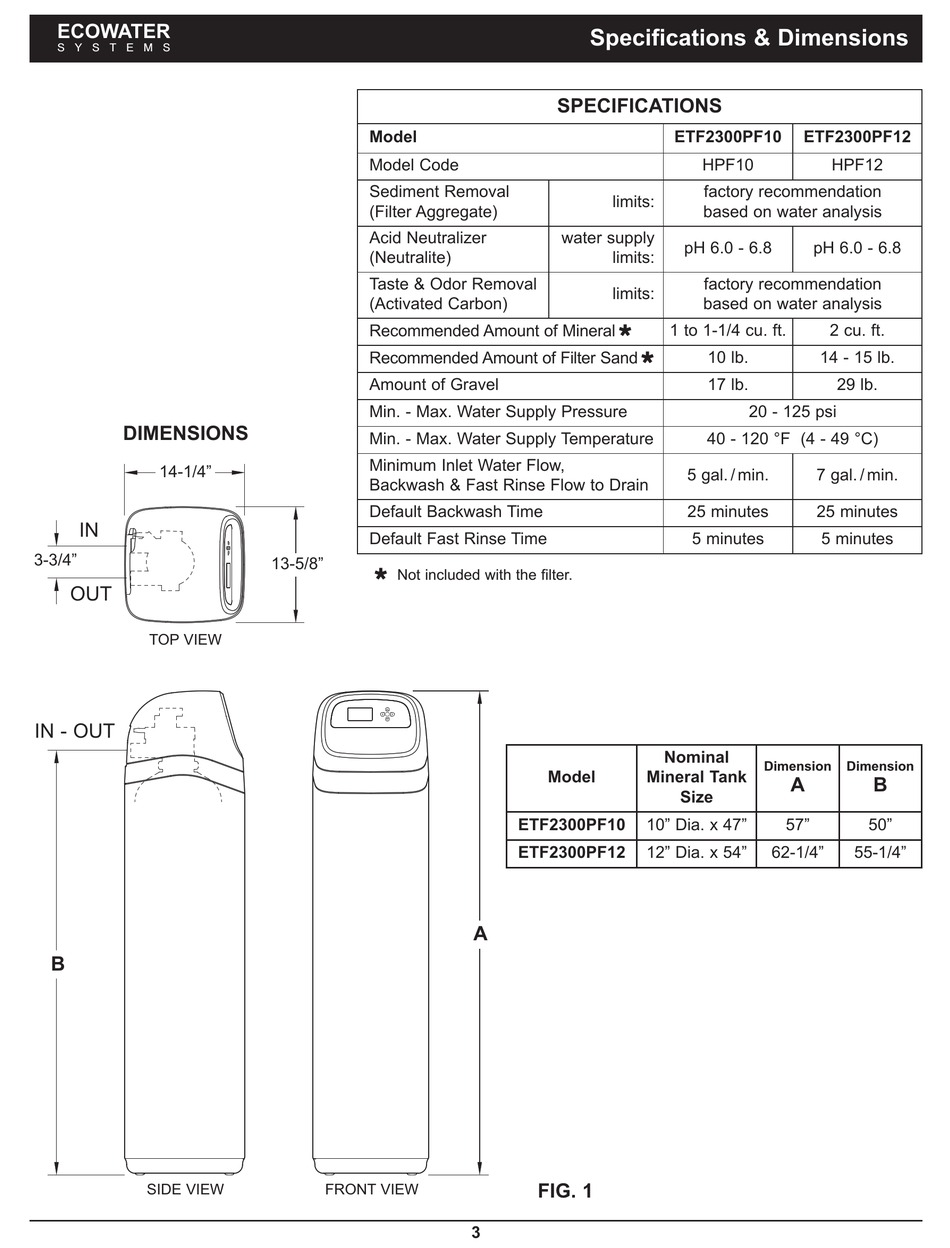

Specifications & Dimensions - EcoWater ETF2300PF10 Owner's Manual

ECOWATER
S Y S T E M S
DIMENSIONS
14-1/4"
14-1/4"
IN
IN
3-3/4"
3-3/4"
OUT OUT
TOP VIEW
TOP VIEW
IN - OUT
IN - OUT
B B
SIDE VIEW SIDE VIEW
Model
Model Code
Sediment Removal
(Filter Aggregate)
Acid Neutralizer
(Neutralite)
Taste & Odor Removal
(Activated Carbon)
Recommended Amount of Mineral Ù
Recommended Amount of Filter Sand Ù
Amount of Gravel
Min. - Max. Water Supply Pressure
Min. - Max. Water Supply Temperature
Minimum Inlet Water Flow,
Backwash & Fast Rinse Flow to Drain
Default Backwash Time
Default Fast Rinse Time
13-5/8"
13-5/8"
Ù
Not included with the filter.
FRONT VIEW
FRONT VIEW
Specifications & Dimensions
SPECIFICATIONS
limits:
water supply
limits:
limits:
Model Mineral Tank
ETF2300PF10 10" Dia. x 47"
ETF2300PF12 12" Dia. x 54"
A A
FIG. 1
3
ETF2300PF10 ETF2300PF12
HPF10 HPF12
factory recommendation
based on water analysis
pH 6.0 - 6.8 pH 6.0 - 6.8
factory recommendation
based on water analysis
1 to 1-1/4 cu. ft. 2 cu. ft.
10 lb. 14 - 15 lb.
17 lb. 29 lb.
20 - 125 psi
40 - 120 °F (4 - 49 °C)
5 gal. / min. 7 gal. / min.
25 minutes 25 minutes
5 minutes 5 minutes
Nominal
Dimension
A
Size
57"
62-1/4"
Dimension
B
50"
55-1/4"
