EcoWater ETF2300PF10 Owner's Manual page 35

ECOWATER
S Y S T E M S
Key
Part No.
No.
50 7224087 Screw, #8-32 x 1" (2 req.)
51 7286039 Motor (incl. 2 ea. of Key No. 50)
52 7231393 Motor Plate
53 0900857 Screw, #6-20 x 3/8" (3 req.)
54 7171250 Bearing
55 7283489 Cam & Gear
56 7169180 Clip, Drain
57 7172793 Drain Hose Adaptor
7170288 O-Ring, 15/16" x 1-3/16", single
58
7336402 O-Ring, 15/16" x 1-3/16", pack of 20
7178189 Flow Plug, 5 gpm, ETF2300PF10
59
7178202 Flow Plug, 7 gpm, ETF2300PF12
– 7185487 Seal Kit (includes Key Nos. 60-65)
60 O-Ring, 5/8" x 13/16"
á
61 O-Ring, 1-1/8" x 1-1/2"
á
62 á O-Ring, 4-1/2" x 4-7/8"
63 á Rotor Seal
64 á Seal
65 Seal, Nozzle & Venturi
á
66 7174313 Bearing, Wave Washer
67 7185500 Rotor & Disc
68 7171187 Plug, Drain Seal
69 7129889 Spring

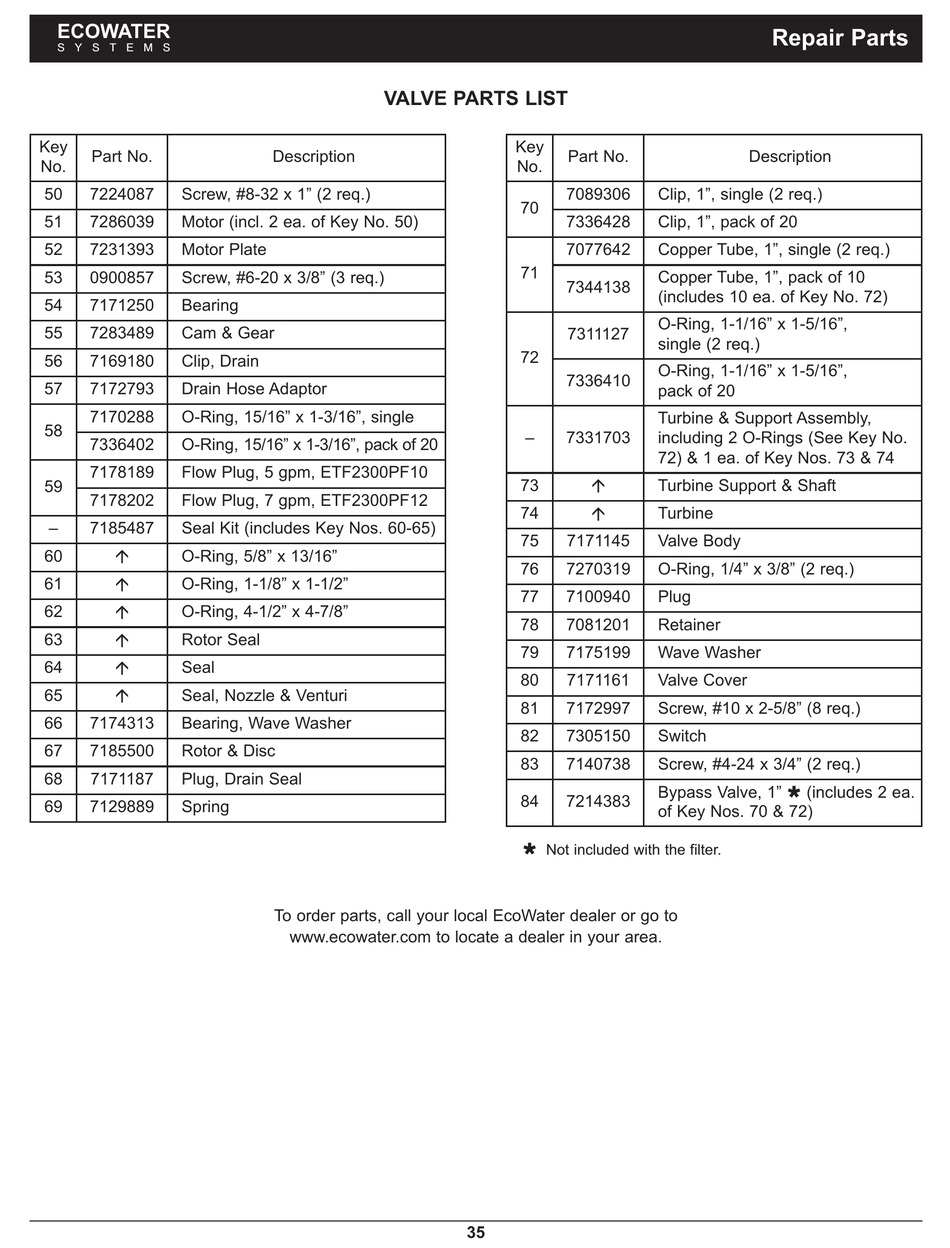

VALVE PARTS LIST
Description
To order parts, call your local EcoWater dealer or go to
www.ecowater.com to locate a dealer in your area.
Key
Part No.
No.
7089306
70
7336428
7077642
71
7344138
7311127
72
7336410
– 7331703
73 á
74 á
75 7171145
76 7270319
77 7100940
78 7081201
79 7175199
80 7171161
81 7172997
82 7305150
83 7140738
84 7214383
Ù
Not included with the filter.
35
Repair Parts
Description
Clip, 1", single (2 req.)
Clip, 1", pack of 20
Copper Tube, 1", single (2 req.)
Copper Tube, 1", pack of 10
(includes 10 ea. of Key No. 72)
O-Ring, 1-1/16" x 1-5/16",
single (2 req.)
O-Ring, 1-1/16" x 1-5/16",
pack of 20
Turbine & Support Assembly,
including 2 O-Rings (See Key No.
72) & 1 ea. of Key Nos. 73 & 74
Turbine Support & Shaft
Turbine
Valve Body
O-Ring, 1/4" x 3/8" (2 req.)
Plug
Retainer
Wave Washer
Valve Cover
Screw, #10 x 2-5/8" (8 req.)
Switch
Screw, #4-24 x 3/4" (2 req.)
Bypass Valve, 1" Ù (includes 2 ea.
of Key Nos. 70 & 72)
