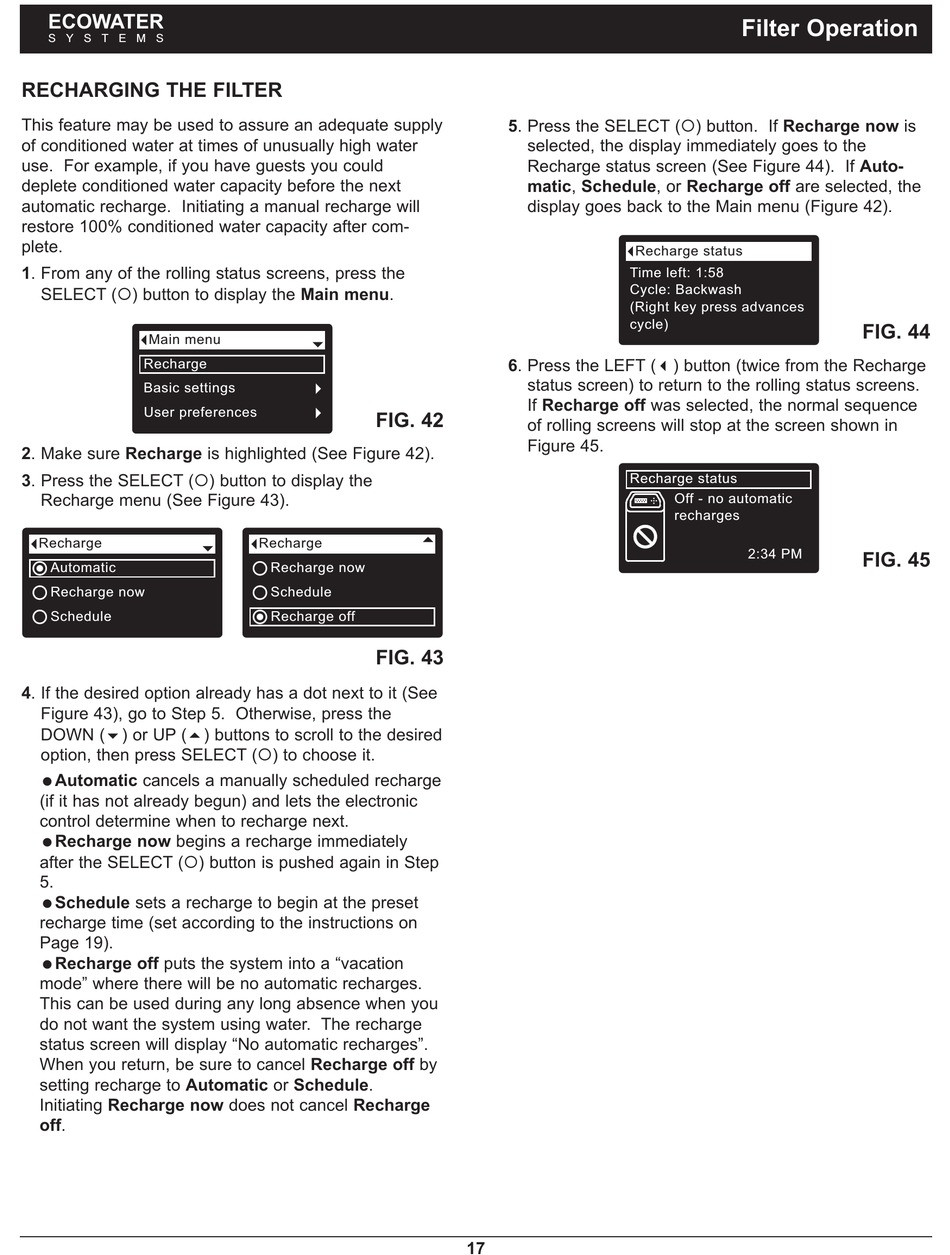

EcoWater ETF2300PF10 Owner's Manual page 17

ECOWATER
S Y S T E M S
RECHARGING THE FILTER
This feature may be used to assure an adequate supply
of conditioned water at times of unusually high water
use. For example, if you have guests you could
deplete conditioned water capacity before the next
automatic recharge. Initiating a manual recharge will
restore 100% conditioned water capacity after com-
plete.
1. From any of the rolling status screens, press the
SELECT ( ) button to display the Main menu.
Main menu
Recharge
Basic settings
User preferences
2. Make sure Recharge is highlighted (See Figure 42).
3. Press the SELECT ( ) button to display the
Recharge menu (See Figure 43).
Recharge
Automatic
Recharge now
Schedule
4. If the desired option already has a dot next to it (See
Figure 43), go to Step 5. Otherwise, press the
DOWN (6) or UP (5) buttons to scroll to the desired
option, then press SELECT ( ) to choose it.
Automatic cancels a manually scheduled recharge
=
(if it has not already begun) and lets the electronic
control determine when to recharge next.
Recharge now begins a recharge immediately
=
after the SELECT ( ) button is pushed again in Step
5.
Schedule sets a recharge to begin at the preset
=
recharge time (set according to the instructions on
Page 19).
Recharge off puts the system into a "vacation
=
mode" where there will be no automatic recharges.
This can be used during any long absence when you
do not want the system using water. The recharge
status screen will display "No automatic recharges".
When you return, be sure to cancel Recharge off by
setting recharge to Automatic or Schedule.
Initiating Recharge now does not cancel Recharge
off.
FIG. 42
Recharge
Recharge now
Schedule
Recharge off
FIG. 43
5. Press the SELECT ( ) button. If Recharge now is
selected, the display immediately goes to the
Recharge status screen (See Figure 44). If Auto -
matic, Schedule, or Recharge off are selected, the
display goes back to the Main menu (Figure 42).
Recharge status
Time left: 1:58
Cycle: Backwash
(Right key press advances
cycle)
6. Press the LEFT (3) button (twice from the Recharge
status screen) to return to the rolling status screens.
If Recharge off was selected, the normal sequence
of rolling screens will stop at the screen shown in
Figure 45.
Recharge status
17
Filter Operation
Off - no automatic
recharges
2:34 PM
FIG. 44
FIG. 45
