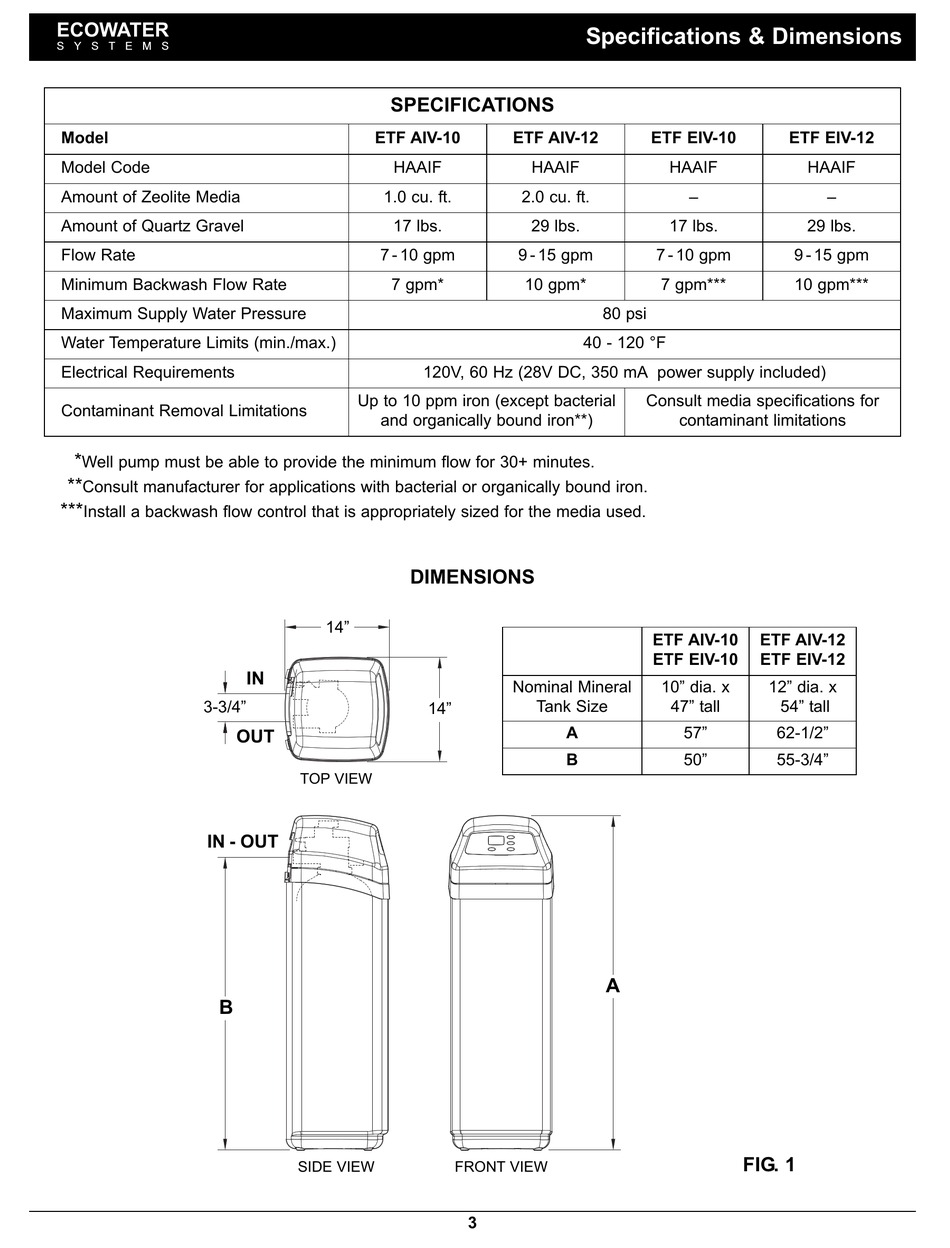

Specifications & Dimensions - EcoWater ETF AIV-10 Owner's Manual

ECOWATER
S Y S T E M S
Model
Model Code
Amount of Zeolite Media
Amount of Quartz Gravel
Flow Rate
Minimum Backwash Flow Rate
Maximum Supply Water Pressure
Water Temperature Limits (min./max.)
Electrical Requirements
Contaminant Removal Limitations
*
Well pump must be able to provide the minimum flow for 30+ minutes.
**
Consult manufacturer for applications with bacterial or organically bound iron.
***
Install a backwash flow control that is appropriately sized for the media used.
3-3/4"
3-3/4"
IN - OUT
IN - OUT
B
39-1/4"
SPECIFICATIONS
ETF AIV-10
HAAIF
1.0 cu. ft.
17 lbs.
7 - 10 gpm
7 gpm*
Up to 10 ppm iron (except bacterial
and organically bound iron**)
DIMENSIONS
14"
14"
IN
IN
OUT
OUT
TOP VIEW
TOP VIEW
SIDE VIEW
SIDE VIEW
Specifications & Dimensions
ETF AIV-12
HAAIF
2.0 cu. ft.
29 lbs.
9 - 15 gpm
10 gpm*
40 - 120 °F
120V, 60 Hz (28V DC, 350 mA power supply included)
Nominal Mineral
Tank Size
14"
14"
A
B
44-3/4"
FRONT VIEW
FRONT VIEW
3
ETF EIV-10
HAAIF
–
17 lbs.
7 - 10 gpm
7 gpm***
80 psi
Consult media specifications for
contaminant limitations
ETF AIV-10 ETF AIV-12
ETF EIV-10 ETF EIV-12
10" dia. x 12" dia. x
47" tall 54" tall
57" 62-1/2"
50" 55-3/4"
A
FIG. 1
ETF EIV-12
HAAIF
–
29 lbs.
9 - 15 gpm
10 gpm***
