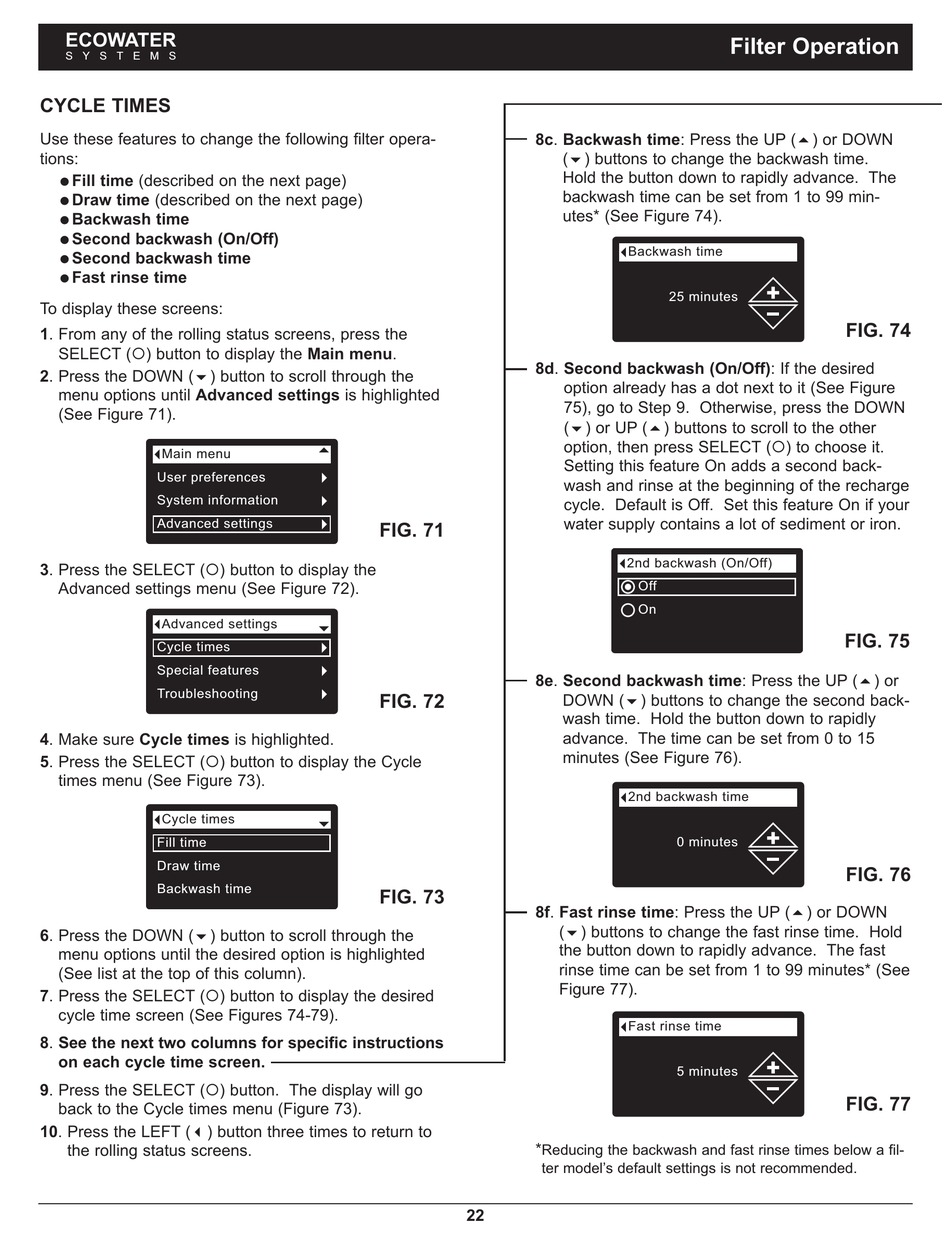

CYCLE TIMES
Use these features to change the following filter opera-
tions:
Fill time (described on the next page)
=
Draw time (described on the next page)
=
Backwash time
=
Second backwash (On/Off)
=
Second backwash time
=
Fast rinse time
=
To display these screens:
1. From any of the rolling status screens, press the
SELECT ( ) button to display the Main menu.
2. Press the DOWN (6) button to scroll through the
menu options until Advanced settings is highlighted
(See Figure 71).
Main menu
User preferences
System information
Advanced settings
3. Press the SELECT ( ) button to display the
Advanced settings menu (See Figure 72).
Advanced settings
Cycle times
Special features
Troubleshooting
4. Make sure Cycle times is highlighted.
5. Press the SELECT ( ) button to display the Cycle
times menu (See Figure 73).
Cycle times
Fill time
Draw time
Backwash time
6. Press the DOWN (6) button to scroll through the
menu options until the desired option is highlighted
(See list at the top of this column).
7. Press the SELECT ( ) button to display the desired
cycle time screen (See Figures 74-79).
8. See the next two columns for specific instructions
on each cycle time screen.
9. Press the SELECT ( ) button. The display will go
back to the Cycle times menu (Figure 73).
10. Press the LEFT (3) button three times to return to
the rolling status screens.
8c. Backwash time: Press the UP (5) or DOWN
8d. Second backwash (On/Off): If the desired
FIG. 71
8e. Second backwash time: Press the UP (5) or
FIG. 72
FIG. 73
8f. Fast rinse time: Press the UP (5) or DOWN
*
Reducing the backwash and fast rinse times below a fil-
ter model's default settings is not recommended.
22
Filter Operation
(6) buttons to change the backwash time.
Hold the button down to rapidly advance. The
backwash time can be set from 1 to 99 min-
utes* (See Figure 74).
Backwash time
25 minutes
option already has a dot next to it (See Figure
75), go to Step 9. Otherwise, press the DOWN
(6) or UP (5) buttons to scroll to the other
option, then press SELECT ( ) to choose it.
Setting this feature On adds a second back-
wash and rinse at the beginning of the recharge
cycle. Default is Off. Set this feature On if your
water supply contains a lot of sediment or iron.
2nd backwash (On/Off)
Off
On
DOWN (6) buttons to change the second back-
wash time. Hold the button down to rapidly
advance. The time can be set from 0 to 15
minutes (See Figure 76).
2nd backwash time
0 minutes
(6) buttons to change the fast rinse time. Hold
the button down to rapidly advance. The fast
rinse time can be set from 1 to 99 minutes* (See
Figure 77).
Fast rinse time
5 minutes
FIG. 74
FIG. 75
FIG. 76
FIG. 77
