Safety Guides
Installation
Operation
System tested and certified by NSF International
against NSF/ANSI Standards 42 and 53.
See performance data sheet for details.
System tested and certified by WQA against
NSF/ANSI Standards 42, 53 and USEPA
microbiological guide for the reduction of the
claims specified on the performance data sheet.
Designed, Engineered &
Assembled in the U.S.A.
Maintenance
Repair Parts
EcoWater Systems LLC
1890 Woodlane Drive
Woodbury, MN 55125
www.ecowater.com
EcoWater

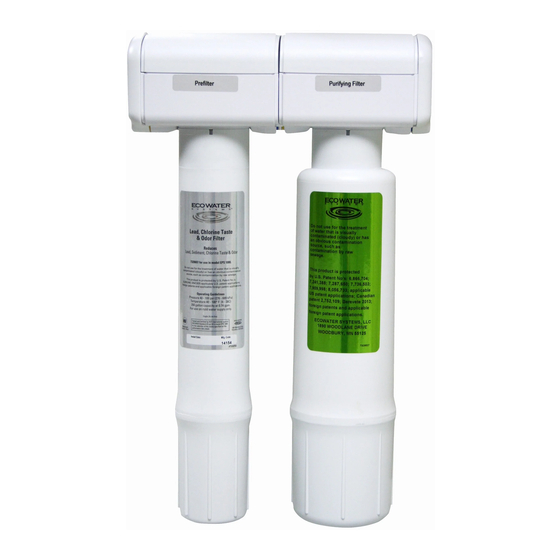

Purification System
EPS 1000
C
US
7307445 (Rev. M 6/17/15)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EcoWater EPS 1000
Summary of Contents for EcoWater EPS 1000
-

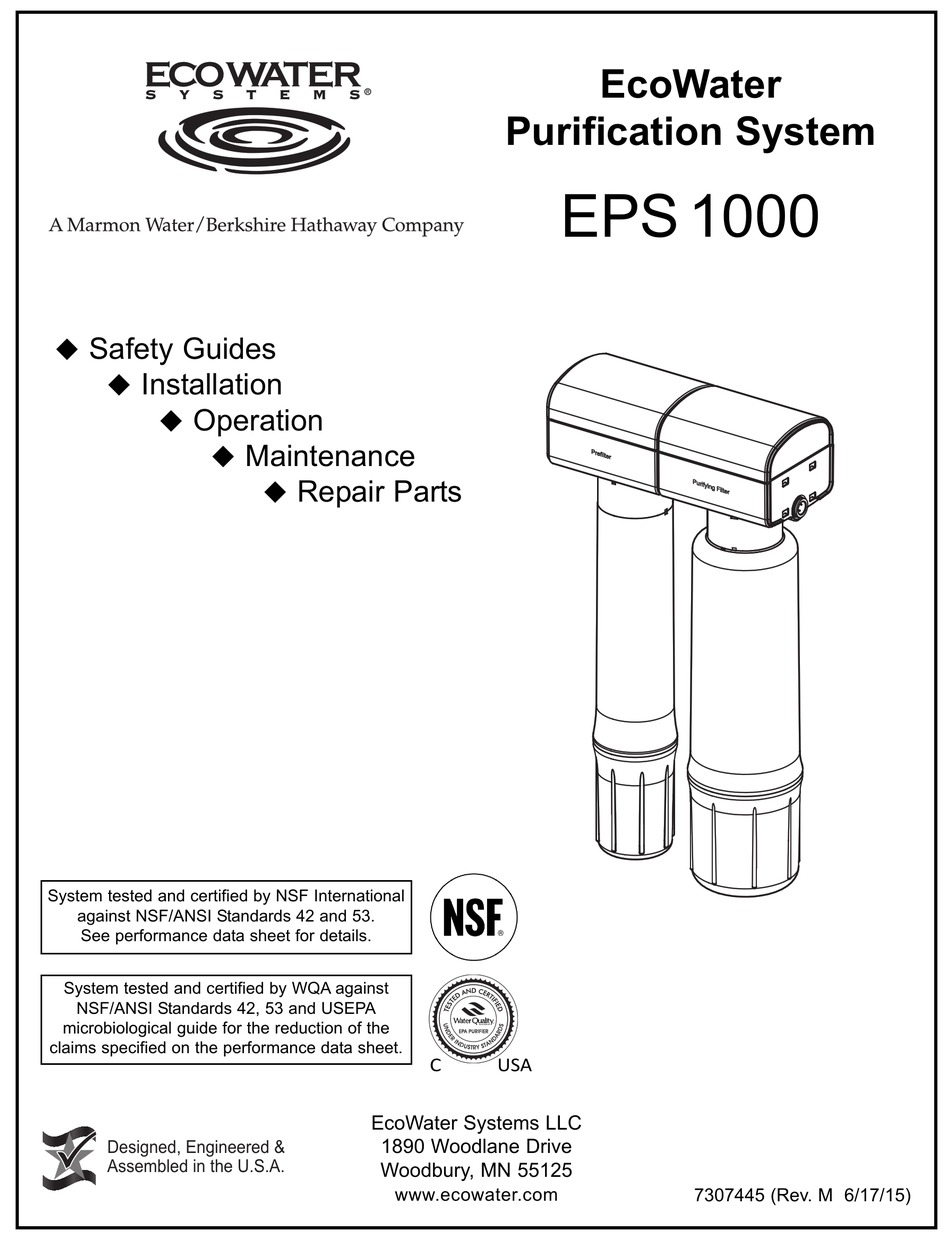

Page 1: Repair Parts
EcoWater Purification System EPS 1000 Safety Guides Installation Operation Maintenance Repair Parts System tested and certified by NSF International against NSF/ANSI Standards 42 and 53. See performance data sheet for details. System tested and certified by WQA against NSF/ANSI Standards 42, 53 and USEPA microbiological guide for the reduction of the claims specified on the performance data sheet. -
Page 2: Table Of Contents
LIMITED 5 YEAR WARRANTY EcoWater Systems LLC, guarantees to the original owner that, for a period of five (5) years from from the date of purchase, the drinking water system will be free from defects in material and workmanship. The prefilter and purifying filter cartridges, which are expendable, are not covered under this warranty. -
Page 3: What The Drinking Water System Will Do
What the Drinking Water System will Do The EPS 1000 is a water purification treatment system. This system uses a dual filter configuration to remove undesirable elements in your water. These elements may include chlorine taste and odor, par- ticulates, lead, virus, bacteria, cysts, and many organic compounds. At the same time, the system allows the minerals found in water to remain, for great tasting water. -
Page 4: Components Of The System
Components of the System • Filter system assembly • Color coded 3/8” OD tubing to make all needed connections • Parts bag containing mounting washers and screws • Filtered water faucet assembly, packaged separately Installer Provides • Fitting(s) to tap the cold water pipe for a feed water source to the filter assembly . -
Page 5: Installation Steps
Comply with plumbing code 248-CMR for installations in the state of Massachusetts. Please consult your local plumber. A. Water supply typical connection B. Water supply typical connection using EcoWater P/N 7228536 using compression fitting water supply fitting - not included - parts not included -... -
Page 6: Step C - Install Faucet
Installation Steps Step C - Install Faucet (packaged separately) 1. Slide the chrome base over the faucet stud so that it will sit below the faucet body (See Fig. 3). 2. Remove the hex nut from the end of the stud. Slide the spacer and lock washer onto the stud. Place the hex nut back onto the stud. -
Page 7: Step E - Install Filter Cartridges
Installation Steps continued from the previous page Connect Tubing: 1. Use a sharp cutter or knife to cut the end of tubing square. 2. Inspect the end (about 1") of the tubing to be sure there are no nicks, scratches or other rough spots. If needed cut the tubing again. -
Page 8: Filter Cartridges
EcoWater Undersink Drinking Water Filter system model EPS 1000 with replacement elements 7320697 and 7308069 conforms to NSF/ANSI 42 and 53 for the specific performance claims as verified and sub- stantiated by test data. -
Page 9: Troubleshooting The System
Troubleshooting the System Problem: No water flow or decreased water flow. Cause: Prefilter is clogged. Correction: Replace the prefilter cartridge. Cause: Flow through the purifying filter will decrease and Correction: Replace all filter cartridges. eventually clog when exposed to an excess of microbiological loading materials in the water. -
Page 10: Exploded View
Exploded View... -
Page 11: Repair Parts
Owner’s Manual Faucet Options & Accessories not included 7272959 Faucet, Chrome 7277187 Faucet, Brushed Nickel 7228536 Tee, Feed Adaptor Not illustrated. For repair parts call your local EcoWater dealer or go to www.ecowater.com to locate a dealer in your area.
