Repair Parts - EcoWater ETF2300PF10 Owner's Manual

ECOWATER
S Y S T E M S

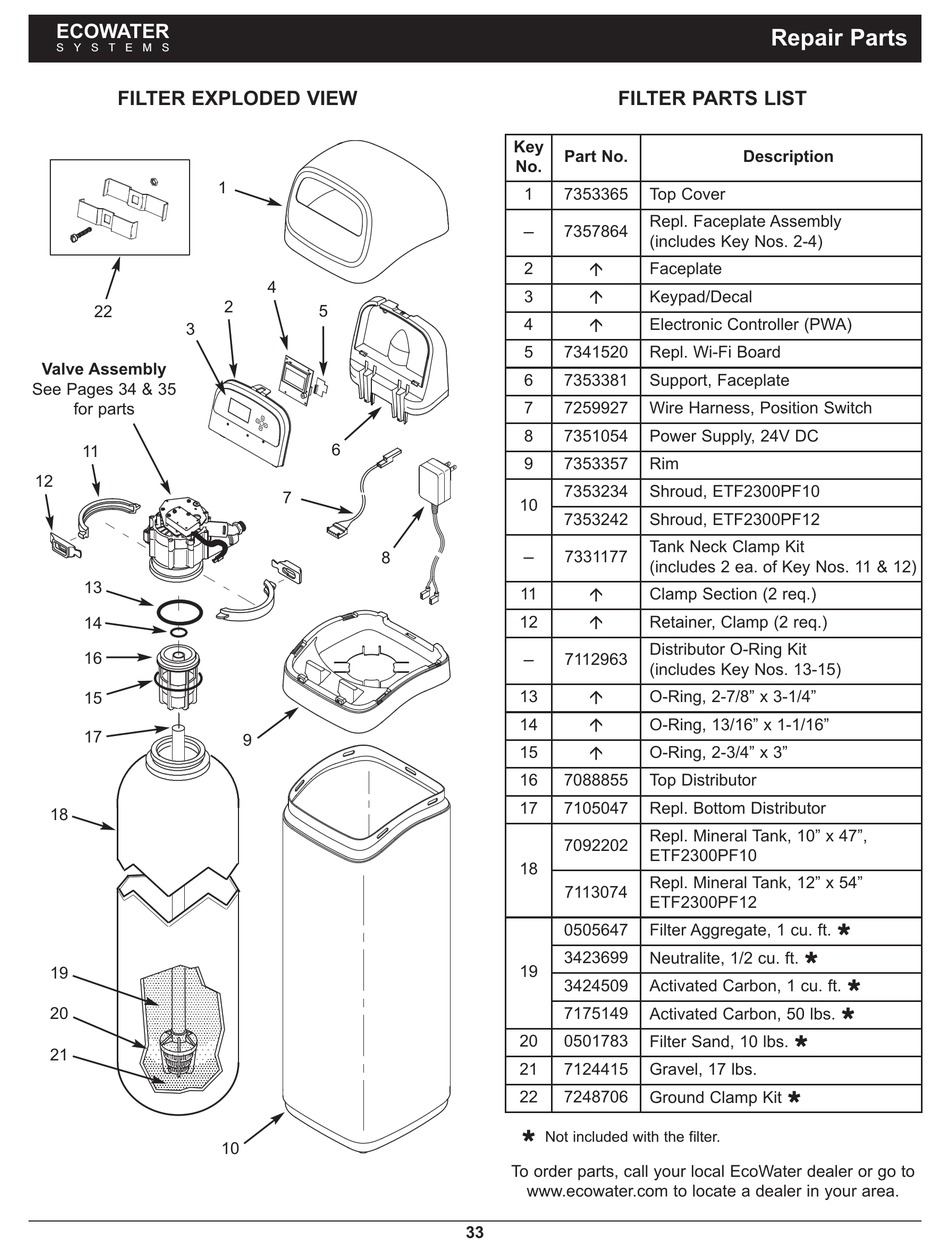

FILTER EXPLODED VIEW
22
3
Valve Assembly
See Pages 34 & 35
for parts
11
12
13
14
16
15
17
18
19
20
21
1
4
2
5
6
7
8
9
10
FILTER PARTS LIST
Key
Part No.
No.
1 7353365
–
7357864
2
á
3
á
4
á
5 7341520
6 7353381
7 7259927
8 7351054
9 7353357
7353234
10
7353242
–
7331177
11
á
12
á
– 7112963
13 á
14 á
15
á
16 7088855
17 7105047
7092202
18
7113074
0505647
3423699
19
3424509
7175149
20 0501783
21 7124415
22 7248706
Ù
Not included with the filter.
To order parts, call your local EcoWater dealer or go to
www.ecowater.com to locate a dealer in your area.
33

Repair Parts

Description
Top Cover
Repl. Faceplate Assembly
(includes Key Nos. 2-4)
Faceplate
Keypad/Decal
Electronic Controller (PWA)
Repl. Wi-Fi Board
Support, Faceplate
Wire Harness, Position Switch
Power Supply, 24V DC
Rim
Shroud, ETF2300PF10
Shroud, ETF2300PF12
Tank Neck Clamp Kit
(includes 2 ea. of Key Nos. 11 & 12)
Clamp Section (2 req.)
Retainer, Clamp (2 req.)
Distributor O-Ring Kit
(includes Key Nos. 13-15)
O-Ring, 2-7/8" x 3-1/4"
O-Ring, 13/16" x 1-1/16"
O-Ring, 2-3/4" x 3"
Top Distributor
Repl. Bottom Distributor
Repl. Mineral Tank, 10" x 47",
ETF2300PF10
Repl. Mineral Tank, 12" x 54"
ETF2300PF12
Filter Aggregate, 1 cu. ft. Ù
Neutralite, 1/2 cu. ft. Ù
Activated Carbon, 1 cu. ft. Ù
Activated Carbon, 50 lbs. Ù
Filter Sand, 10 lbs. Ù
Gravel, 17 lbs.
Ground Clamp Kit Ù
