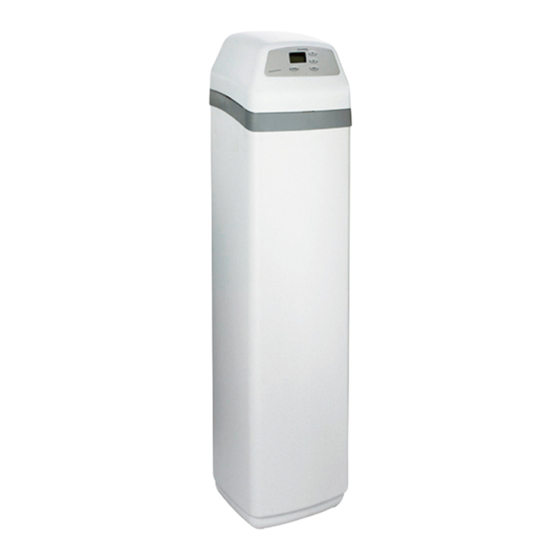

EcoWater ETF2100 PF series Owner's Manual

Multi-purpose
Hide thumbs Also See for ETF2100 PF series:
Table of Contents

Advertisement

Quick Links

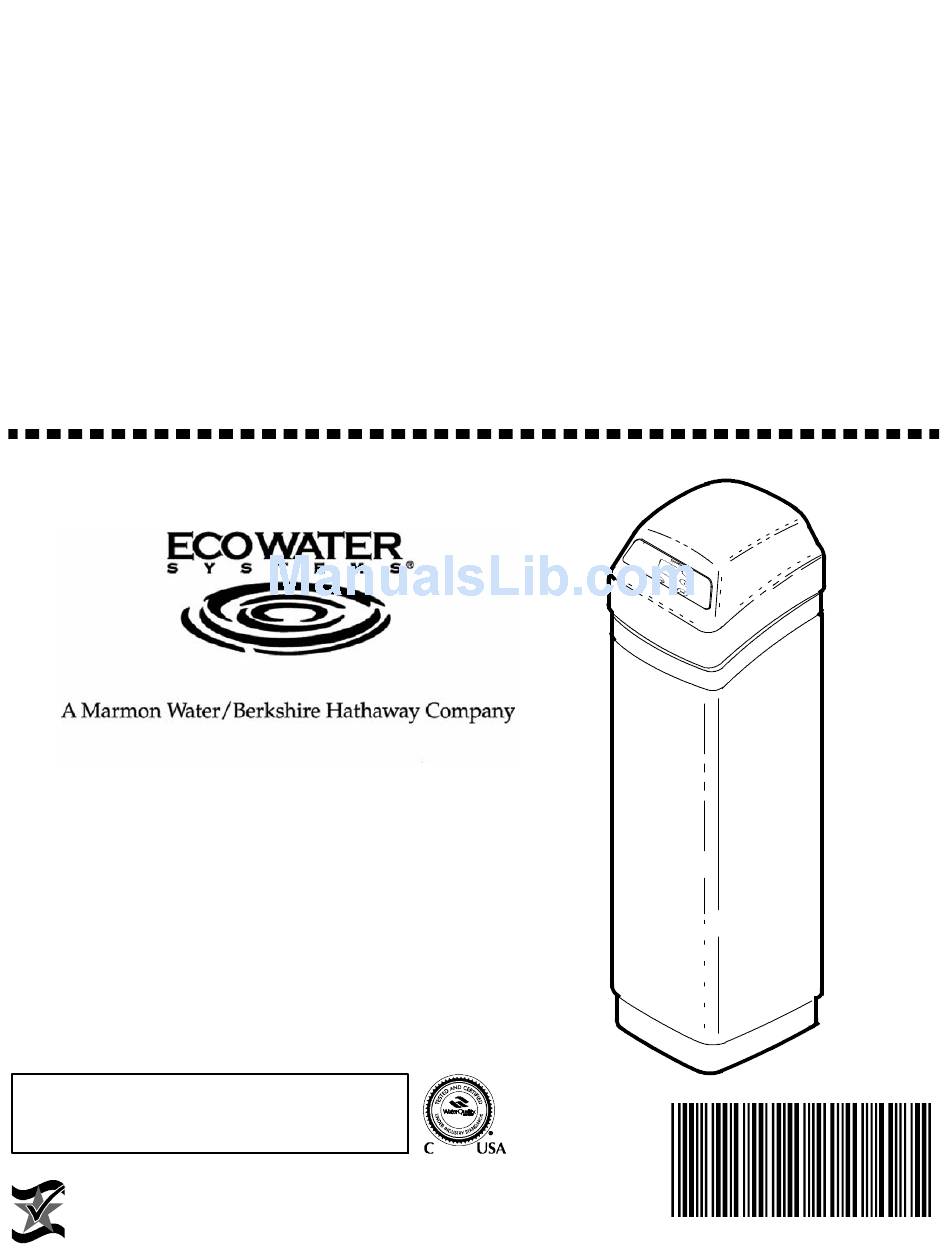

OWNERS
MANUAL
How to maintain and operate your
EcoWater multi- - purpose filter
SERIES
ETF2100 PF
ETF2100PF10 and ETF2100PF12 are tested and
certified without media by the Water Quality Association
against CSA B483.1, NSF/ANSI Standard 61,
and NSF/ANSI Standard 372 for low lead content
.
EcoWater Systems LLC
Designed, Engineered &
P.O. Box 64420, St. Paul, MN 55164--0420
Assembled in the U.S.A.
www.ecowater.com
Part No. 7283536 (Rev. L 7/9/15)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETF2100 PF series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EcoWater ETF2100 PF series

Summary of Contents for EcoWater ETF2100 PF series

  • Page 1 OWNERS MANUAL How to maintain and operate your EcoWater multi- - purpose filter SERIES ETF2100 PF ETF2100PF10 and ETF2100PF12 are tested and certified without media by the Water Quality Association against CSA B483.1, NSF/ANSI Standard 61, and NSF/ANSI Standard 372 for low lead content EcoWater Systems LLC Designed, Engineered &...

  • Page 2: Table Of Contents

    Notify the trans- European Directive 2002/96/EC requires all portation company if damage is present. EcoWater electrical and electronic equipment to be dis- is not responsible for in--transit damages. posed of according to Waste Electrical and Electronic Equipment (WEEE) requirements.

  • Page 3: Specifications / Dimensions

    ECOWATER Specifications / Dimensions Y S T ETF2100PF10 ETF2100PF12 10” DIA x 47” 12” DIA x 54” RESIN TANK RESIN TANK FILTER TYPE, Mineral ¡ factory recommendation SEDIMENT REMOVAL based on water analysis Filter Aggregate limits ACID NEUTRALIZER water supply 6.0 to 6.8...

  • Page 4: Assembly Instructions

    ECOWATER Assembly Instructions Y S T FILL THE MINERAL TANK 3. Thoroughly clean all sand and mineral from the tank top opening. 1. Remove the tank clamps, Figure 1, valve assem- bly, o--ring seals (3), and the top distributor. 2. Using a funnel, add the specified amount of filter sand, then the mineral.

  • Page 5: Planning Installation

    (1” male) supplied with the filter, or obtain approved AND SPLASHING TO PREVENT WATER DAMAGE compression adaptors. The following special fittings TO SURROUNDING AREA. are available from EcoWater. Be sure to comply with all local plumbing codes. 5. A 120V, 60Hz, grounded, continuously “live”, elec- OPTIONAL INLET/OUTLET FITTINGS trical outlet is needed, in a dry location near the filter.
  • Page 6 ECOWATER Planning Installation Y S T TOOLS YOU MAY NEED SELECT INSTALLATION LOCATION Consider all of the following when selecting an D common screwdriver D pliers installation location for the filter selected. D cross--point screwdriver D tape measure S To filter all water in the home, install the filter close...
  • Page 7 FREE SOLDER as required by federal and State codes. Use pipe joint compound on outside pipe NOTE: If installing the EcoWater bypass valve, see threads. separate instructions included with it. 4. MOVE FILTER INTO PLACE b.
  • Page 8 If SOLDERING TO INLET AND OUTLET grounds. TUBES, observe steps (1) through (4) above. a. Use the EcoWater ground clamp kit (not included) c. CPVC PLASTIC PIPE to make a jumper across the inlet and outlet pipes Figure 6a.

  • Page 9: Wiring Schematic

    ECOWATER Installation Y S T NOTE: In addition to a floor drain, you can use a b. Attach the male connector, on the valve motor laundry tub or stand pipe as a good drain point for leadwire, the the matching female connector on the this hose.

  • Page 10: Programming Face Plate Timer

    ECOWATER Programming Face Plate Timer Y S T FIGURE 9 UP keypad DOWN keypad display VACATION NOW (HOLD) RECHARGE keypad SELECT keypad When the power supply is plugged in, the model 2. Press the SELECT keypad once to set the present code HPF shows in the face plate display for the first time and advance to the next set up screen.
  • Page 11 ECOWATER Programming Face Plate Timer Y S T Iron (parts per million) Number of People 1 -- 2 3 -- 4 5 -- 7 8 -- 20 4 days 3 days 2 days 1 day 4 days 3 days 2 days...
  • Page 12 ECOWATER Programming Face Plate Timer Y S T The default settings for fill (0 minutes), brine draw (0 ADJUSTABLE BACKWASH -- Press and hold the minutes), backwash (25 minutes) and fast rinse (5 SELECT button until the display shows “000----”,...
  • Page 13 ECOWATER Programming Face Plate Timer Y S T AUXILIARY OUTPUT CONTROL -- The electronic controller’s auxiliary output may be used to operate various types of external equipment, such as a chlorine generator or chemical feeder. It provides a 28V DC, up to 300 mA, current from terminal J4 on the electronic control board (see Schematic on Page 3.

  • Page 14: Filter Operation

    ECOWATER Filter Operation Y S T GENERAL INFORMATION mineral bed, dissolves some of the mineral. This raises the pH above 6.8, to neutralize the acid. Be- ...SEDIMENT FILTERS -- A sediment filter removes, cause the mineral does dissolve, the filter eventually sand, clay, silt, or fine organic matter from water.

  • Page 15: Service / Backwash / Fast Rinse

    ECOWATER Filter Operation Y S T SERVICE, BACKWASH AND FAST RINSE SERVICE (Figure 10): Unfiltered water enters the Water is routed down and out the bottom distributor, valve inlet port. Internal valve porting routes the wa- up through the mineral bed, and out the top distribu- ter down and out the top distributor, into the mineral tor to the drain.

  • Page 16: Service Information

    ECOWATER Service Information Y S T NEUTRALIZING FILTER - - CHECKING THE MIN- 8. Use a yard stick or steel tape measure to find the ERAL LEVEL IN THE TANK: As explained on page distance down to the top of the mineral bed, see Fig- 14, the mineral dissolves in the water to neutralize ure 13.

  • Page 17: Troubleshooting

    ECOWATER Service Information Y S T TROUBLESHOOTING Use the RECHARGE keypad to manually advance the valve into each cycle and check correct switch ALWAYS MAKE THESE INITIAL CHECKS FIRST operation. 1. Does the time display show the correct time of...
  • Page 18 ECOWATER Service Information Y S T MANUAL ADVANCE DIAGNOSTIC NOTE: Be sure household water pressure (well sys- tem) is maintained at a minimum of 20 psi. Adjust the Use the following procedures to advance the filter pump switch upward, if needed.
  • Page 19 ECOWATER Notes Y S T...
  • Page 20 ECOWATER Notes Y S T...

  • Page 21: Repair Parts

    ECOWATER Repair Parts Y S T PART DESCRIPTION 7337482 Power Supply, 28V DC 7259927 Wire Harness 7218670 Top Cover 7336363 Rep’l PWA 7210509 Face Plate (order following decal) 7308970 Decal 7291212 Face Plate Support Tank Neck Clamp Kit 7331177 (includes 2 ea. of Key Nos. 7 & 8) Clamp Section (2 req.)
  • Page 22 ECOWATER Repair Parts Y S T flow plug assembly assembled view wear- -strip seal cross- -section view 26 16...
  • Page 23 ECOWATER Repair Parts Y S T PART PART DESCRIPTION DESCRIPTION 7129889 Spring 7224087 Screw, #8-32 x 1” (2 req.) 7089306 Clip, 1”, single (4 req.) 7286039 Motor (incl. 2 ea. of Key No. 1) 7336428 Clip, 1”, pack of 20...

  • Page 24: Warranty

    EcoWater Systems LLC, is excused if failure to perform its warranty obligations is the result of strikes, government regulation, materi- als shortages, or other circumstances beyond its control.
