Specifications & Dimensions - EcoWater ECWS Owner's Manual

ECOWATER
S Y S T E M S
Model Code
Nominal Mineral Tank Size
Rated Service Flow Rate
Pressure Drop at Rated Service Flow
Pressure Drop at 12 gpm
Water Pressure Limits (minimum / maximum)
Water Temperature Limits (minimum / maximum)
Rated Capacity at Chlorine Concentration** of: 1.0 ppm
Backwash Time, default (length is adjustable)
Fast Rinse Time, default (length is adjustable)
Drain Flow Rate (during Backwash & Fast Rinse)
Amount of Activated Carbon
Amount of Filter Sand
Amount of Gravel
*
From independent laboratory test data.
**
Typical residential chlorine concentration is 0.5 to 1.0 ppm.

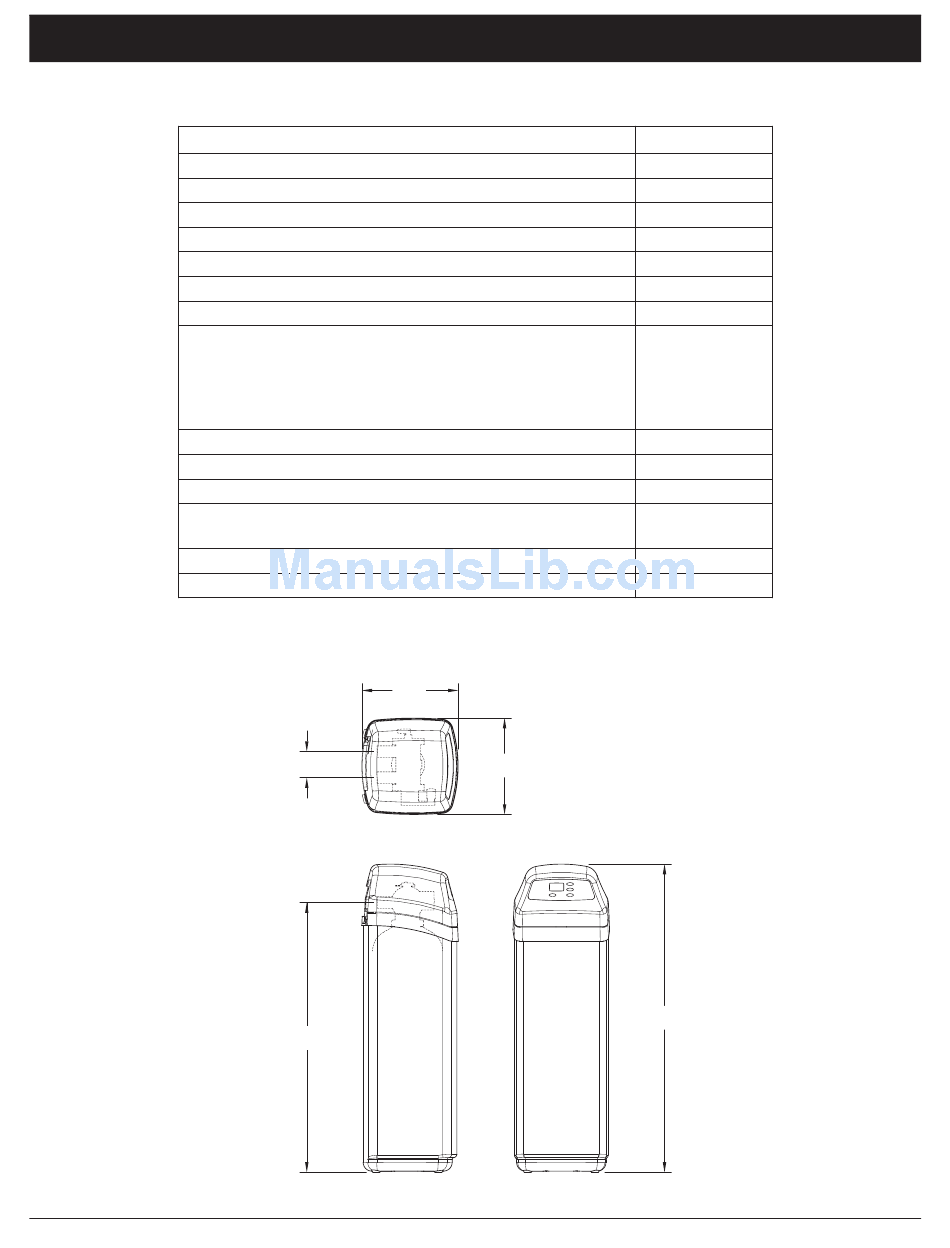

SPECIFICATIONS
14" 14"
IN
IN
3-3/4"
3-3/4"
OUT
OUT
TOP VIEW
TOP VIEW
IN - OUT
IN - OUT
39-1/4"
39-1/4"
SIDE VIEW
SIDE VIEW
Specifications & Dimensions
0.50 ppm
0.75 ppm
1.5 ppm
2.0 ppm
14"
14"
44-3/4"
44-3/4"
FRONT VIEW
FRONT VIEW
3
Model ECWS
EC
8" dia. x 35"
6.0 gpm
*
4 psig
*
9 psig
30 - 125 psi
40 - 120 °F
2,780,000 gal.*
1,850,000 gal.*
1,390,000 gal.*
925,000 gal.*
695,000 gal.*
2 minutes
1 minute
3.0 gpm
12 pounds
(0.40 cu. ft.)
5 pounds
6 pounds
FIG. 1
