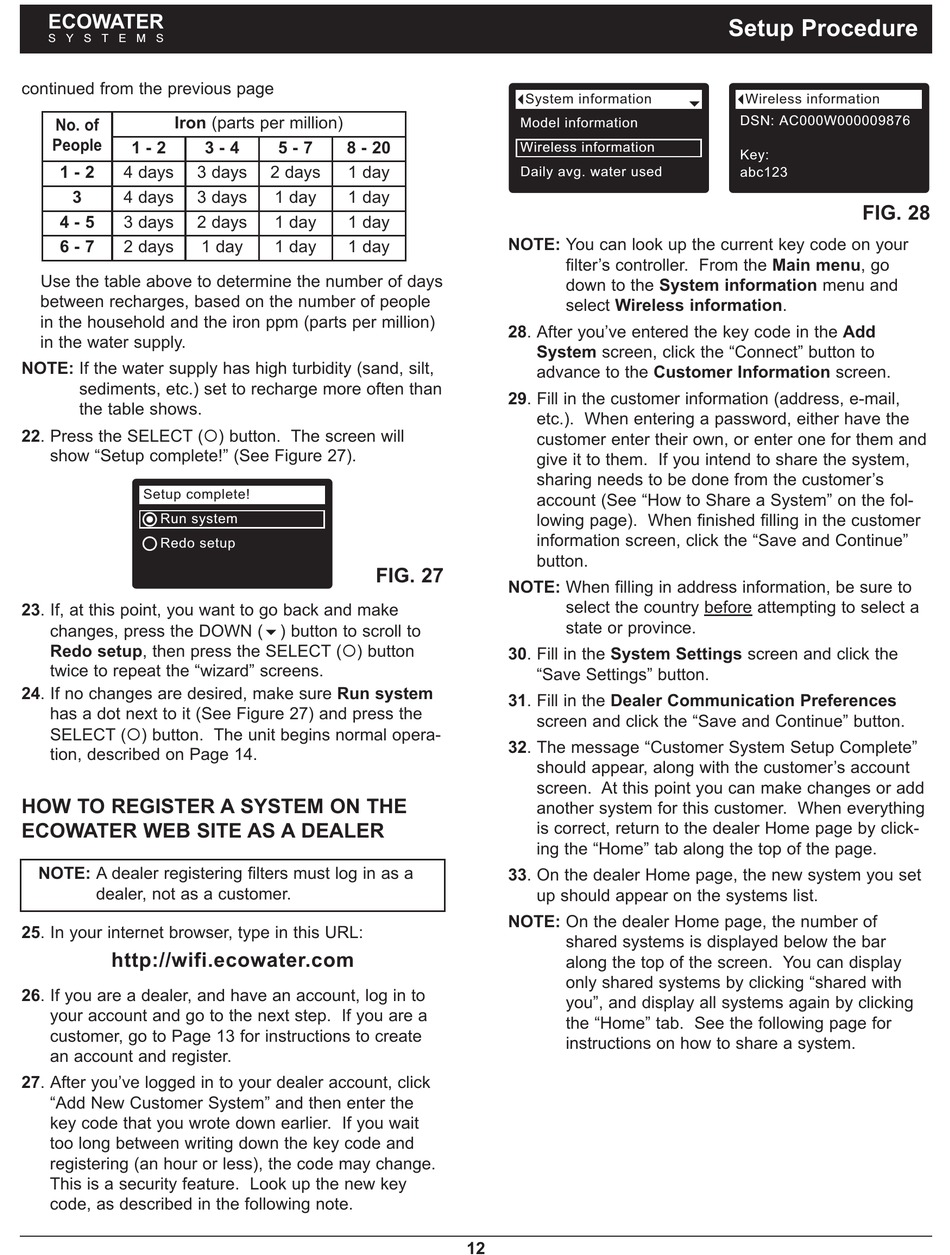

EcoWater ETF2300PF10 Owner's Manual page 12

ECOWATER
S Y S T E M S
continued from the previous page
Iron (parts per million)
No. of
People
1 - 2
1 - 2 4 days 3 days
3 4 days 3 days
4 - 5 3 days 2 days
6 - 7 2 days 1 day
Use the table above to determine the number of days
between recharges, based on the number of people
in the household and the iron ppm (parts per million)
in the water supply.
NOTE: If the water supply has high turbidity (sand, silt,
sediments, etc.) set to recharge more often than
the table shows.
22. Press the SELECT ( ) button. The screen will
show "Setup complete!" (See Figure 27).
Setup complete!
Run system
Redo setup
23. If, at this point, you want to go back and make
changes, press the DOWN (6) button to scroll to
Redo setup, then press the SELECT ( ) button
twice to repeat the "wizard" screens.
24. If no changes are desired, make sure Run system
has a dot next to it (See Figure 27) and press the
SELECT ( ) button. The unit begins normal opera-
tion, described on Page 14.
HOW TO REGISTER A SYSTEM ON THE
ECO WATER WEB SITE AS A DEALER
NOTE: A dealer registering filters must log in as a
dealer, not as a customer.
25. In your internet browser, type in this URL:
http://wifi.ecowater.com
26. If you are a dealer, and have an account, log in to
your account and go to the next step. If you are a
customer, go to Page 13 for instructions to create
an account and register.
27. After you've logged in to your dealer account, click
"Add New Customer System" and then enter the
key code that you wrote down earlier. If you wait
too long between writing down the key code and
registering (an hour or less), the code may change.
This is a security feature. Look up the new key
code, as described in the following note.
3 - 4 5 - 7 8 - 20
2 days 1 day
1 day 1 day
1 day 1 day
1 day 1 day
FIG. 27
System information
Model information
Wireless information
Daily avg. water used
NOTE: You can look up the current key code on your
filter's controller. From the Main menu, go
down to the System information menu and
select Wireless information.
28. After you've entered the key code in the Add
System screen, click the "Connect" button to
advance to the Customer Information screen.
29. Fill in the customer information (address, e-mail,
etc.). When entering a password, either have the
customer enter their own, or enter one for them and
give it to them. If you intend to share the system,
sharing needs to be done from the customer's
account (See "How to Share a System" on the fol-
lowing page). When finished filling in the customer
information screen, click the "Save and Continue"
button.
NOTE: When filling in address information, be sure to
select the country before attempting to select a
state or province.
30. Fill in the System Settings screen and click the
"Save Settings" button.
31. Fill in the Dealer Communication Preferences
screen and click the "Save and Continue" button.
32. The message "Customer System Setup Complete"
should appear, along with the customer's account
screen. At this point you can make changes or add
another system for this customer. When everything
is correct, return to the dealer Home page by click-
ing the "Home" tab along the top of the page.
33. On the dealer Home page, the new system you set
up should appear on the systems list.
NOTE: On the dealer Home page, the number of
shared systems is displayed below the bar
along the top of the screen. You can display
only shared systems by clicking "shared with
you", and display all systems again by clicking
the "Home" tab. See the following page for
instructions on how to share a system.
12
Setup Procedure
Wireless information
DSN: AC000W000009876
Key:
abc123
FIG. 28
