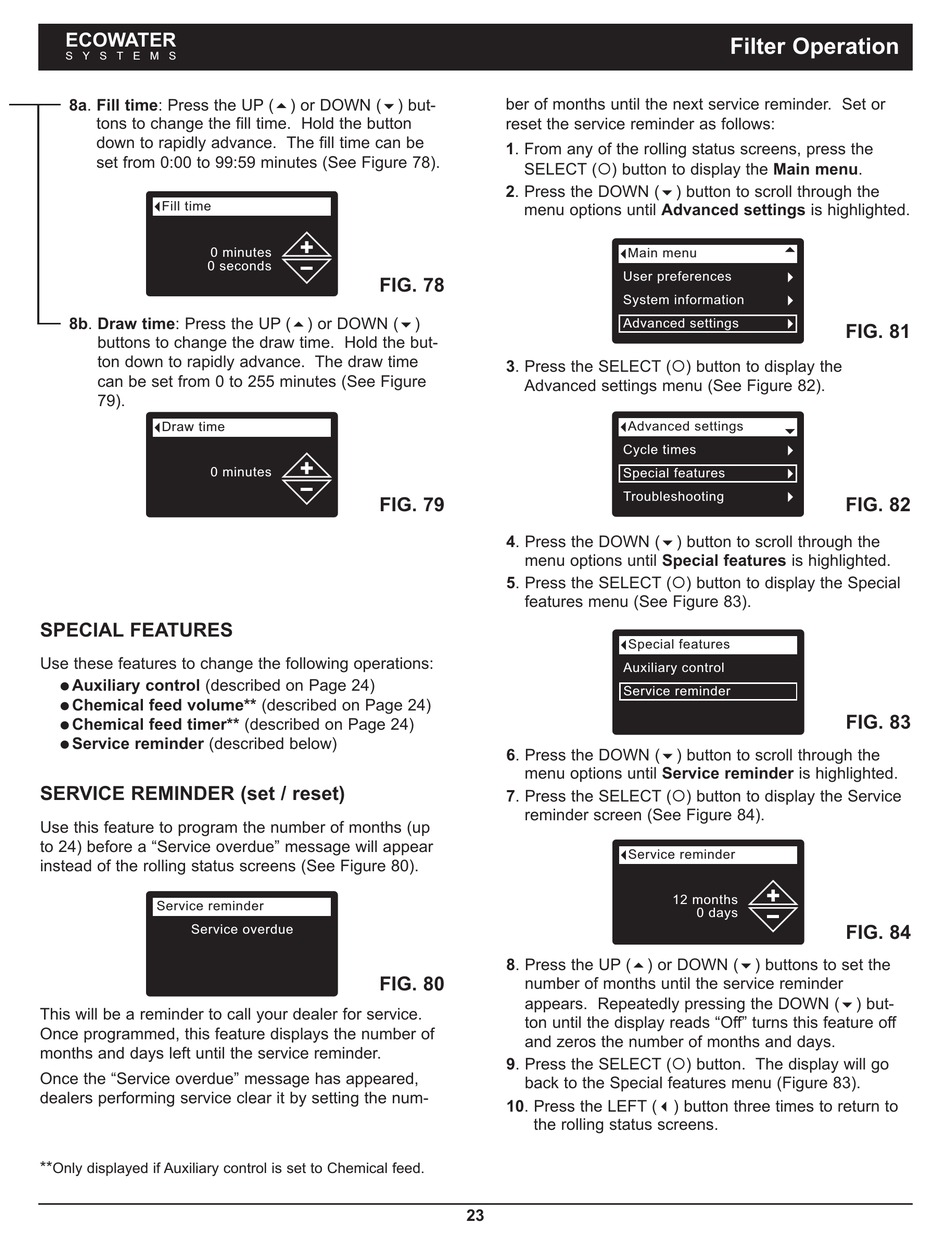

EcoWater ETF2300PF10 Owner's Manual page 23

ECOWATER
S Y S T E M S
8a. Fill time: Press the UP (5) or DOWN (6) but-
tons to change the fill time. Hold the button
down to rapidly advance. The fill time can be
set from 0:00 to 99:59 minutes (See Figure 78).
Fill time
0 minutes
0 seconds
8b. Draw time: Press the UP (5) or DOWN (6)
buttons to change the draw time. Hold the but-
ton down to rapidly advance. The draw time
can be set from 0 to 255 minutes (See Figure
79).
Draw time
0 minutes
SPECIAL FEATURES
Use these features to change the following operations:
Auxiliary control (described on Page 24)
=
Chemical feed volume** (described on Page 24)
=
Chemical feed timer** (described on Page 24)
=
Service reminder (described below)
=
SERVICE REMINDER (set / reset)
Use this feature to program the number of months (up
to 24) before a "Service overdue" message will appear
instead of the rolling status screens (See Figure 80).
Service reminder
Service overdue
This will be a reminder to call your dealer for service.
Once programmed, this feature displays the number of
months and days left until the service reminder.
Once the "Service overdue" message has appeared,
dealers performing service clear it by setting the num-
**
Only displayed if Auxiliary control is set to Chemical feed.
ber of months until the next service reminder. Set or
reset the service reminder as follows:
1. From any of the rolling status screens, press the
SELECT ( ) button to display the Main menu.
2. Press the DOWN (6) button to scroll through the
menu options until Advanced settings is highlighted.
FIG. 78
3. Press the SELECT ( ) button to display the
Advanced settings menu (See Figure 82).
FIG. 79
4. Press the DOWN (6) button to scroll through the
menu options until Special features is highlighted.
5. Press the SELECT ( ) button to display the Special
features menu (See Figure 83).
6. Press the DOWN (6) button to scroll through the
menu options until Service reminder is highlighted.
7. Press the SELECT ( ) button to display the Service
reminder screen (See Figure 84).
8. Press the UP (5) or DOWN (6) buttons to set the
FIG. 80
number of months until the service reminder
appears. Repeatedly pressing the DOWN (6) but-
ton until the display reads "Off" turns this feature off
and zeros the number of months and days.
9. Press the SELECT ( ) button. The display will go
back to the Special features menu (Figure 83).
10. Press the LEFT (3) button three times to return to
the rolling status screens.
23
Filter Operation
Main menu
User preferences
System information
Advanced settings
Advanced settings
Cycle times
Special features
Troubleshooting
Special features
Auxiliary control
Service reminder
Service reminder
12 months
0 days
FIG. 81
FIG. 82
FIG. 83
FIG. 84
