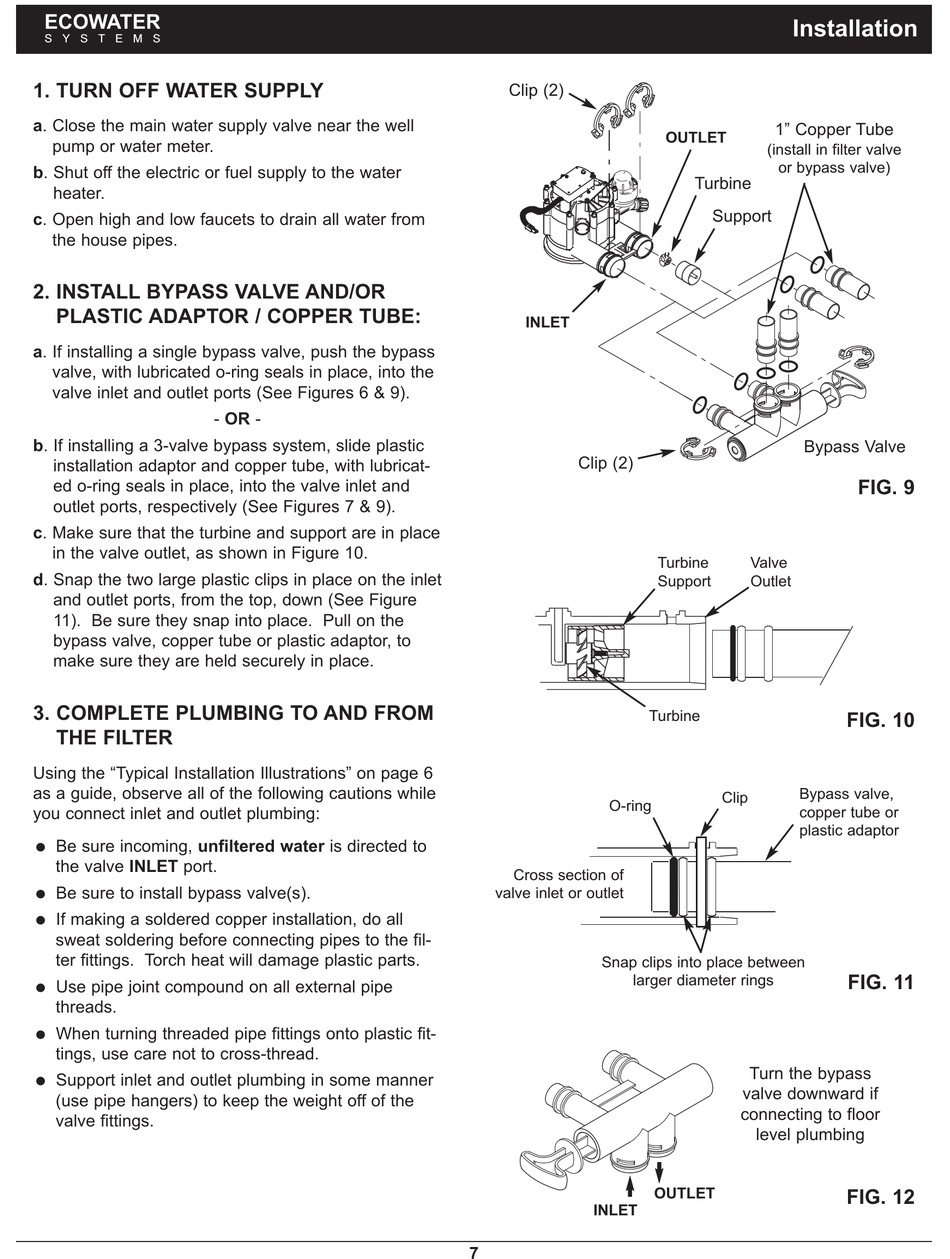

1. TURN OFF WATER SUPPLY
a. Close the main water supply valve near the well
pump or water meter.
b. Shut off the electric or fuel supply to the water
heater.
c. Open high and low faucets to drain all water from
the house pipes.
2. INSTALL BYPASS VALVE AND/OR
PLASTIC ADAPTOR / COPPER TUBE:
a. If installing a single bypass valve, push the bypass
valve, with lubricated o-ring seals in place, into the
valve inlet and outlet ports (See Figures 6 & 9).
b. If installing a 3-valve bypass system, slide plastic
installation adaptor and copper tube, with lubricat-
ed o-ring seals in place, into the valve inlet and
outlet ports, respectively (See Figures 7 & 9).
c. Make sure that the turbine and support are in place
in the valve outlet, as shown in Figure 10.
d. Snap the two large plastic clips in place on the inlet
and outlet ports, from the top, down (See Figure
11). Be sure they snap into place. Pull on the
bypass valve, copper tube or plastic adaptor, to
make sure they are held securely in place.
3. COMPLETE PLUMBING TO AND FROM
THE FILTER
Using the "Typical Installation Illustrations" on page 6
as a guide, observe all of the following cautions while
you connect inlet and outlet plumbing:
Be sure incoming, unfiltered water is directed to
=
the valve INLET port.
Be sure to install bypass valve(s).
=
If making a soldered copper installation, do all
=
sweat soldering before connecting pipes to the fil-
ter fittings. Torch heat will damage plastic parts.
Use pipe joint compound on all external pipe
=
threads.
When turning threaded pipe fittings onto plastic fit-
=
tings, use care not to cross-thread.
Support inlet and outlet plumbing in some manner
=
(use pipe hangers) to keep the weight off of the
valve fittings.
- OR -
Clip (2)
INLET
Clip (2)
Turbine
O-ring
Cross section of
valve inlet or outlet
Snap clips into place between
larger diameter rings
INLET
7
Installation
1" Copper Tube
OUTLET
(install in filter valve
or bypass valve)
Turbine
Support
Bypass Valve
Turbine
Valve
Support
Outlet
Bypass valve,
Clip
copper tube or
plastic adaptor
Turn the bypass
valve downward if
connecting to floor
level plumbing
OUTLET
FIG. 9
FIG. 10
FIG. 11
FIG. 12
