Crestron Isys i/O
TPMC-15/17-QM in Lectern Application
Operations Guide - DOC. 6344
TPMC-15/17 Tilt Series
For more information on QM networks, refer to "QM Network Wiring (QM
Versions Only)" on page 23.
Applications
The TPMC-15-QM and TPMC-17-QM are part of the Crestron MediaManager line
of integrated presentation solutions. It is ideally suited to work with Crestron's
MediaManager wall plate media centers, FlipTop media centers, receivers and
control processors to allow quick switching of multiple A/V sources in a presentation
system. MediaManager devices are designed for conference room, auditorium, and
lecture hall applications, or anywhere else where audio, video, or computer
equipment needs to be easily connected and disconnected from a presentation system
or room control system.

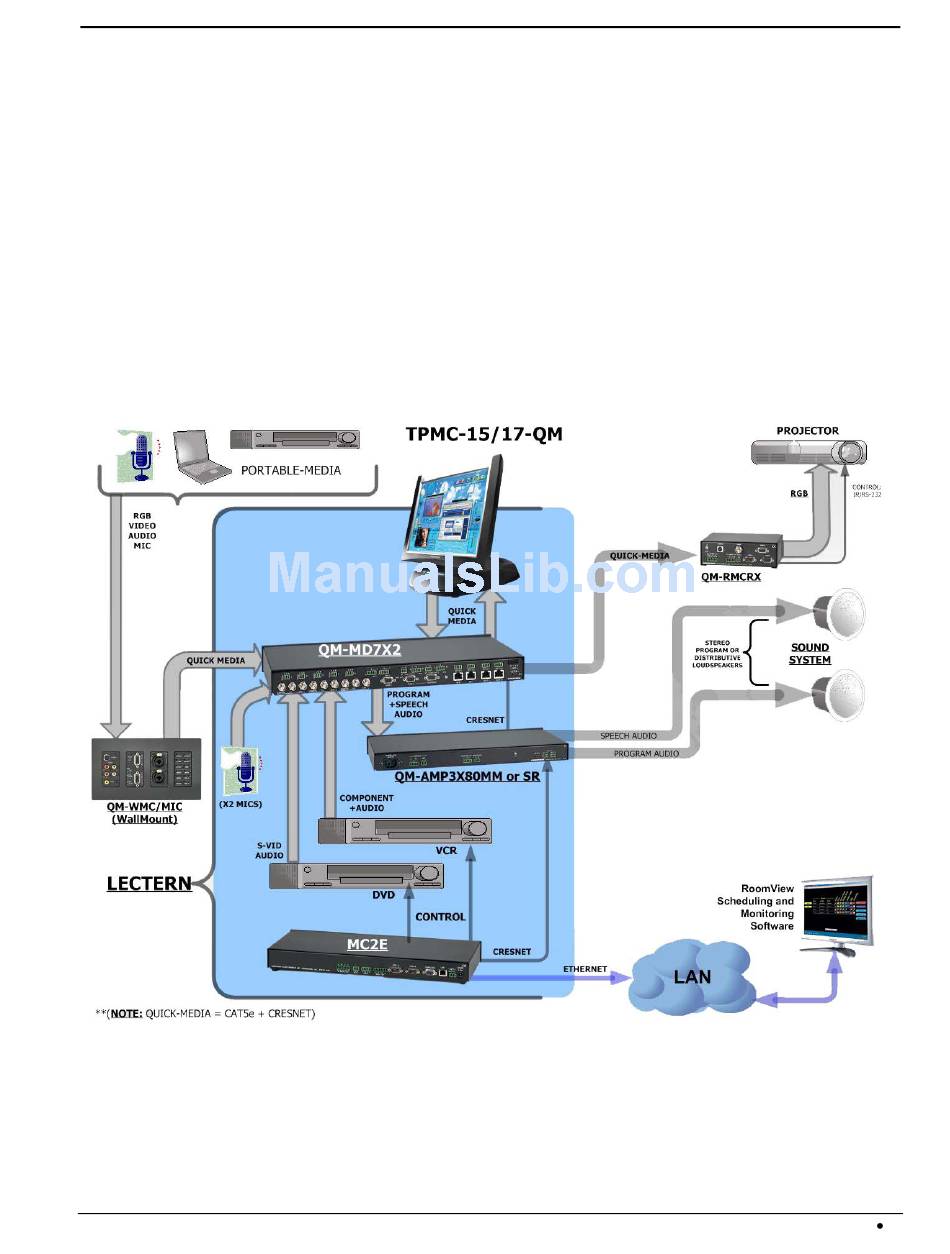

The following diagram shows a TPMC-17-QM in a lecture hall application.
The TPMC-15-CH and TPMC-17-CH are integral to managing a residential
audio/video distribution system. With built-in audio and video connectivity as well
as Ethernet communications, the touchpanel can be used to control complex
audio/video systems.
Touchpanel Media Centers: Crestron Isys i/O™ TPMC-15/17 Tilt Series
Touchpanel Media Centers
5
