- Page 1 Crestron TPMC-4SM ® Isys i/O 4.3” Wall Mount Touchpanel Media Center Operations & Installation Guide...
- Page 2 This device may not cause interferecne, and This device must accept any interference, including interference that may cause undesired operation of the device. All brand names, product names and trademarks are the property of their respective owners. ©2009 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
® Crestron TPMC-4SM Isys i/O Wall Mount Touchpanel Media Center Contents ® Isys i/O 4.3” Wall Mount Touchpanel Media Center: TPMC-4SM Introduction ..........................1 Features and Functions ....................1 Applications......................... 4 Specifications ......................5 Physical Description....................7 Setup ............................10 Network Wiring...................... -
Page 5: Isys I/O ® 4.3" Wall Mount Touchpanel Media Center: Tpmc-4Sm

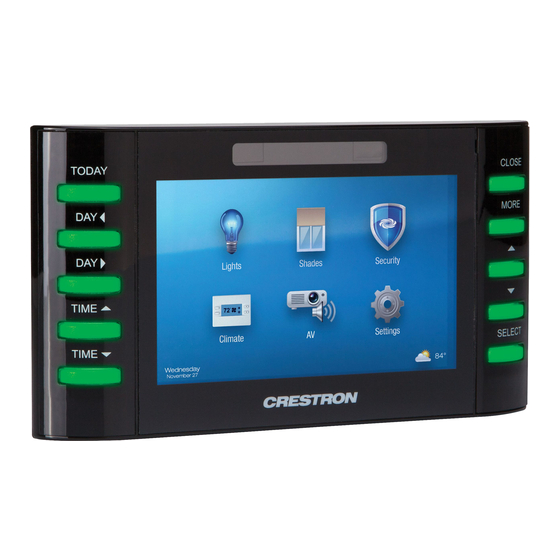

An incredibly thin profile and small footprint allow the TPMC-4SM to be installed in places other touchpanels just cannot go, providing the choice of mounting to a standard electrical box or to virtually any flat surface, even glass, granite or marble. - Page 6 Dual Color Backlit Buttons The TPMC-4SM comes standard with 10 programmable “hard key” pushbuttons for quick access to commonly used functions. Discrete red and green LEDs behind each translucent button afford enhanced multi-state feedback capability for clear status indication of each button function.
- Page 7 TPMC-4SM features an integrated microphone and speaker for clear speech communication. Audio Feedback Customized WAV files can be loaded on the TPMC-4SM to add dimension to its touchscreen graphics using personalized sounds, button feedback and voice prompts. Single Wire Connectivity...
-
Page 8: Applications
Crestron TPMC-4SM inch from the wall surface. For impenetrable surfaces, such as decorative glass, granite, marble, plaster, smooth stone and masonry, Crestron offers the MSMK-4SM Multi-Surface Mount Kit (sold separately), providing a very versatile mounting solution complete with a low-profile rear shell enclosure, adhesive mounting plate, optional angle bracket and wire raceway. -
Page 9: Specifications
® Crestron TPMC-4SM Isys i/O Wall Mount Touchpanel Media Center Specifications Specifications for the TPMC-4SM are listed in the following table. TPMC-4SM Specifications SPECIFICATION DETAILS Touchscreen Display Display Type TFT active matrix color LCD Size 4.3 inch (109 mm) diagonal... - Page 10 Crestron through firmware updates. 2. Refer to “Identity Code” on page 10 for details. 3. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes.
-
Page 11: Physical Description
Wall Mount Touchpanel Media Center Physical Description This section provides information on the connections, controls and indicators available on your TPMC-4SM. TPMC-4SM Physical View ® Wall Mount Touchpanel Media Center: TPMC-4SM • 7 Operations & Installation Guide – DOC. 6845A Isys i/O... - Page 12 ® Isys i/O Wall Mount Touchpanel Media Center Crestron TPMC-4SM TPMC-4SM Overall Dimensions (Front, Bottom and Rear Views) 3.47 in (89 mm) 6.20 in (158 mm) 0.75 in (19 mm) 1.21 in (31 mm) 0.46 in (12 mm) 1.70 in (44 mm) 2.36 in...
- Page 13 3. The pin out table indicates signal connections. DC power applied by Ethernet power sourcing equipment (PSE) can connect to either signal pins or N/C pins. ® Wall Mount Touchpanel Media Center: TPMC-4SM • 9 Operations & Installation Guide – DOC. 6845A Isys i/O...
-
Page 14: Setup
The IP ID is set within the TPMC-4SM’s table using Crestron Toolbox™. For information on setting an IP table, refer to the Crestron Toolbox help file. The IP IDs of multiple TPMC-4SM devices in the same system must be unique. -
Page 15: Configuring The Touchpanel
The “Panel Setup Options” screen will appear. The functions provided by each button are detailed in subsequent paragraphs. “Panel Setup Options” Screen ® Wall Mount Touchpanel Media Center: TPMC-4SM • 11 Operations & Installation Guide – DOC. 6845A Isys i/O... - Page 16 For example, touching the IP Address / Hostname field will open the keyboard illustrated on the following page. ® 12 • Isys i/O Wall Mount Touchpanel Media Center: TPMC-4SM Operations & Installation Guide – DOC. 6845A...
- Page 17 “Edit Control System Settings” screen, touch Save to keep the new setting or Cancel to cancel it. On the TPMC-4SM, DHCP is enabled by default. To switch to a static IP address, touch IP Address Settings on the “Ethernet Setup” screen, to access the “Edit IP Address Settings”...
-
Page 18: Audio Setup
Wave Volume, Mute controls for all three and a Play Test Wave button. Touch Back to return to the “Panel Setup Options” screen. “Audio Settings” Screen ® 14 • Isys i/O Wall Mount Touchpanel Media Center: TPMC-4SM Operations & Installation Guide – DOC. 6845A... -
Page 19: Display Settings
Left LED Color Settings, LCD Wake Options and Right LED Color Settings submenus. Touch Back to return to the “Panel Setup Options” screen. “Display Settings” Screen ® Wall Mount Touchpanel Media Center: TPMC-4SM • 15 Operations & Installation Guide – DOC. 6845A Isys i/O... - Page 20 Wakes LCD and Proximity Sensor Wakes LCD functions ON or OFF. Touch Back to return to the main “Display Settings” screen. “LCD Wake Options” Screen ® 16 • Isys i/O Wall Mount Touchpanel Media Center: TPMC-4SM Operations & Installation Guide – DOC. 6845A...
- Page 21 Connection, MAC and IP addresses and to access the Keypad Test, Touch Test, Sensor Test, Calibrate Touch and Mic Test buttons. Touch Back to return to the “Panel Setup Options” screen. “Diagnostics” Screen ® Wall Mount Touchpanel Media Center: TPMC-4SM • 17 Operations & Installation Guide – DOC. 6845A Isys i/O...
- Page 22 NOTE: When touching the screen during calibration, be as accurate as possible. Use the tip of a capped pen or the eraser end of a pencil. ® 18 • Isys i/O Wall Mount Touchpanel Media Center: TPMC-4SM Operations & Installation Guide – DOC. 6845A...
- Page 23 Inactive to Active as appropriate for each sensor’s activity. Similarly, the TPMC-4SM’s own proximity sensor’s indicator will change from Inactive to Active when the TPMC-4SM senses motion in front of the unit. Touch Back to return to the main “Diagnostics” screen.
-
Page 24: Changing The Button Inserts
Wall Mount Touchpanel Media Center Crestron TPMC-4SM Changing the Button Inserts The TPMC-4SM ships with 10 “hard key” pushbuttons for quick access to commonly used functions. For a clean appearance, either column of buttons may be removed and covered using the no-button covers provided. -
Page 25: Installation
The TPMC-4SM is supplied with screws for installation into an electrical box. Mounting in a US Electrical Box NOTE: When mounting the TPMC-4SM into an electrical box, the box must be installed horizontally. To mount the TPMC-4SM into an electrical box, use the following procedure: 1. - Page 26 NOTE: Use the left and right screw holes for attachment to the electrical box. Mounting the TPMC-4SM into an Electrical Box 3. Carefully position the front of the TPMC-4SM over the back panel and gently snap it into place, as shown in the following illustration.
- Page 27 ® Crestron TPMC-4SM Isys i/O Wall Mount Touchpanel Media Center 4. Use two of the included #04-40 x 1/4” screws to secure the TPMC-4SM, as shown in the following illustration: For standard applications, use the Phillips screws (2007152 or 2007160).
- Page 28 1. Insert a small slot head screwdriver into the hole shown in the illustration at the top of page 21 and gently separate the back of the TPMC-4SM. 2. Use the two included #4B x 3/4” screws (2019088) to attach the back panel to the electrical box, as shown in the following illustration.
-
Page 29: Hardware Hookup
Make the necessary connections as called out in the illustration that follows this paragraph. Apply power after all connections have been made. When making connections to the TPMC-4SM, use Crestron power supplies for Crestron equipment. Hardware Connections for the TPMC-4SM... -
Page 30: Programming Software
Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at www.crestron.com/support. - Page 31 IP ID as shown in the following illustration. C2Net Device, Slot 8 3. Additional TPMC-4SM devices are assigned different IP ID numbers as they are added. 4. If necessary, double click a device to open the “Device Settings” window and change the IP ID, as shown in the following figure.
-
Page 32: Programming With Visiontools Pro-E
There are no special programming requirements to use the functions of the TPMC-4SM in a room control system. “Accessing the embedded applications,” should be included only for i/O devices. - Page 33 WAV files to a touchpanel project. Pre-recorded WAV files for voice prompts and responses are available from Crestron. These files can be stored into and programmed for use in the touchpanel directly or may be edited with the Sound Recorder. For example, the individual files can be combined to create custom messages.
- Page 34 Properties” windows in VT-Pro-e. Refer to the following illustrations. VT Pro-e “Page Properties” Window – Bit Depth Selection VT Pro-e “Image Properties” Window – Bit Depth Selection ® 30 • Isys i/O Wall Mount Touchpanel Media Center: TPMC-4SM Operations & Installation Guide – DOC. 6845A...
-
Page 35: Out Of The Box Programming
Out of the Box Programming For out-of-the-box programming information, refer to the TPMC-4SM RoomView Interface Operations Guide (Doc. 6846). Example Program An example program for the TPMC-4SM is available from the Crestron website (www.crestron.com/exampleprograms). ® Wall Mount Touchpanel Media Center: TPMC-4SM • 31 Operations &... -
Page 36: Uploading And Upgrading
Injector 120 V The TPMC-4SM connects to PC via Ethernet: 1. Enter the IP address, IP mask and default router of the TPMC-4SM via Crestron Toolbox (Functions | Ethernet Addressing); otherwise enable DHCP. NOTE: Use the Device Discovery Tool in Crestron Toolbox to detect all Ethernet devices on the network and their IP configuration. -
Page 37: Programs, Projects And Firmware
3. A defined IP table can be saved to a file or sent to the device. Edit the control system’s IP table to include an entry for the TPMC-4SM. The entry should list the TPMC-4SM’s IP ID (specified on the TPMC-4SM’s IP table) and the internal gateway IP address 127.0.0.1. -
Page 38: Problem Solving
Reference Documents The latest version of all documents mentioned within the guide can be obtained from the Crestron website (www.crestron.com/manuals). This link will provide a list of product manuals arranged in alphabetical order by model number. List of Related Reference Documents... -
Page 39: Further Inquiries
Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 40: Software License Agreement
This Agreement may only be modified by a writing signed by an authorized officer of Crestron. Updates may be licensed to You by Crestron with additional or different terms. This is the entire agreement between Crestron and You relating to the Software and it supersedes any prior representations, discussions, undertakings, communications or advertising relating to the Software. - Page 41 “applets” incorporated into the Software), the accompanying media and printed materials and any copies of the Software are owned by Crestron or its suppliers. The Software is protected by copyright laws and international treaty provisions. Therefore, you must treat the Software like any other copyrighted material, subject to the provisions of this Agreement.
-
Page 42: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. - Page 43 ® Crestron TPMC-4SM Isys i/O Wall Mount Touchpanel Media Center This page is intentionally left blank. ® Wall Mount Touchpanel Media Center: TPMC-4SM • 39 Operations & Installation Guide – DOC. 6845A Isys i/O...
- Page 44 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6845A 15 Volvo Drive Rockleigh, NJ 07647 (2024510) Tel: 888.CRESTRON 11.09 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
