Crestron Isys i/O TPMC-15-CH Operation Manual page 41

™
Crestron Isys i/O
"Video Setup" Window – Manage Presets Tab
Operations Guide - DOC. 6344
TPMC-15/17 Tilt Series
For more information on peak, boost, and skew settings, refer to the latest revision of
the Crestron MediaManager Control, Switching and Management Applications
Guide (Doc. 6244) which can be downloaded from the Crestron website.

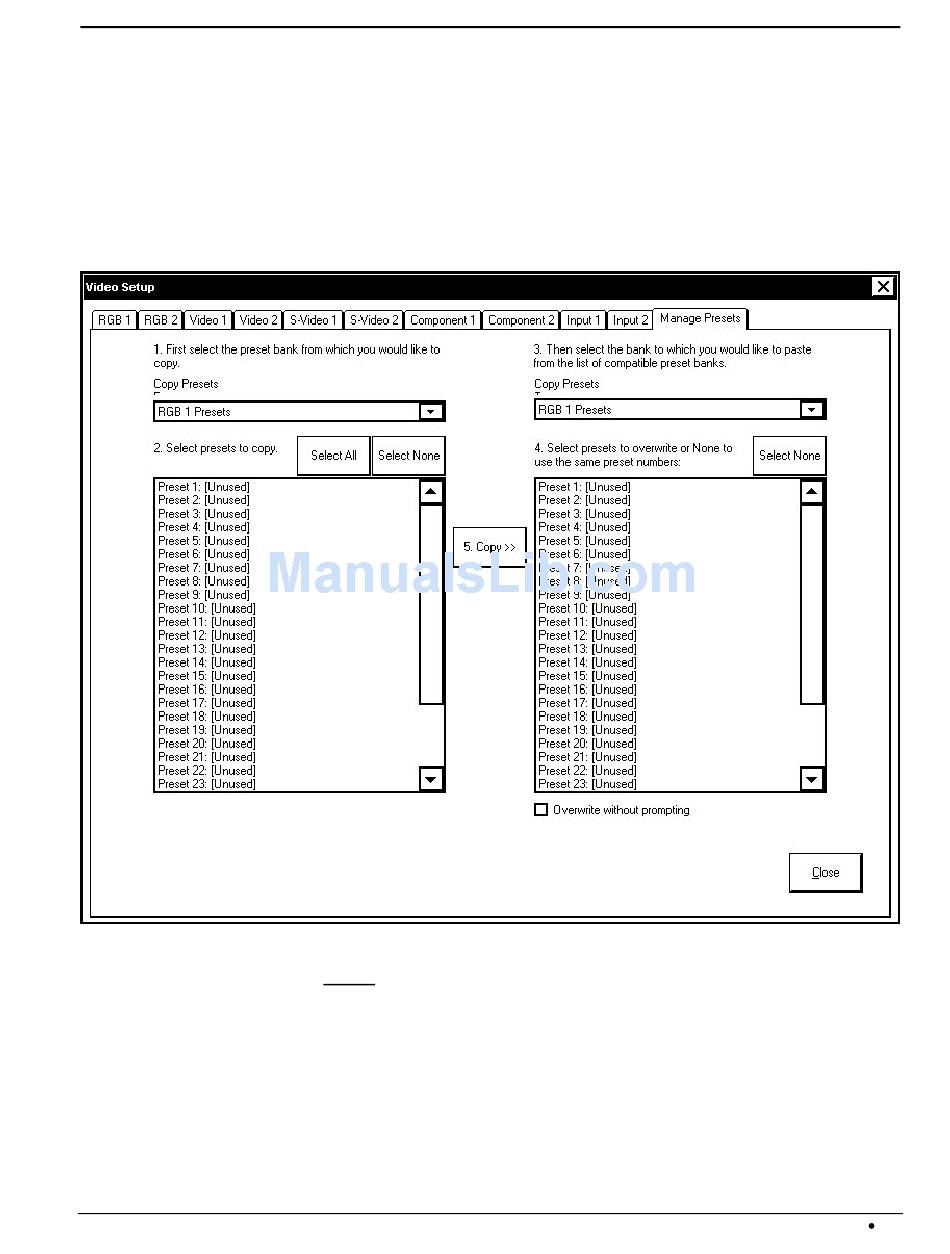

Manage Presets
Use the Manage Presets tab to copy presets for size, position, and color for one
source to other sources.
Audio
For all versions of the TPMC-15/17,pressing Play Test plays a short internal audio
file. Volume and balance adjustments are available for the Local Audio, Microphone,
Headphones, and an overall Speaker volume and balance control. In addition, the
key click sound can be enabled or disabled by pressing Key Click. Defaults are 25
for volume and zero for balance.
Changes to audio settings are made in real time.
The "Audio Setup" window on CH versions includes volume and balance controls
for the line input volume that is labeled Input as shown in the following diagram.
Touchpanel Media Centers: Crestron Isys i/O™ TPMC-15/17 Tilt Series
Touchpanel Media Centers
37
