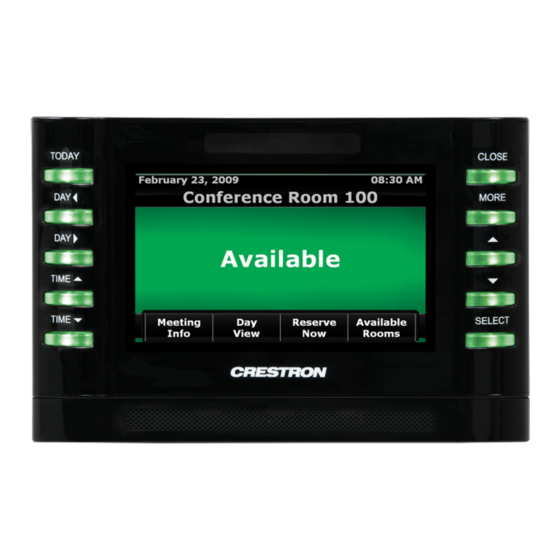

Crestron TPMC-4SM
4.3" Touch Screen
with Room Scheduling
Operations & Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPMC-4SM and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron TPMC-4SM

Summary of Contents for Crestron TPMC-4SM

  • Page 1 Crestron TPMC-4SM 4.3” Touch Screen with Room Scheduling Operations & Installation Guide...

  • Page 2: Regulatory Compliance

    Microsoft Corporation in the United States and/or other countries. Other trademarks, registered trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.

  • Page 3: Table Of Contents

    Crestron TPMC-4SM 4.3” Touch Screen with Room Scheduling Contents 4.3” Touch Screen with Room Scheduling: TPMC-4SM Introduction ..........................1 Features and Functions ....................1 Applications......................... 5 Specifications ......................6 Physical Description ....................8 Setup ............................11 Network Wiring ......................11 Identity Code ......................

  • Page 5: Touch Screen With Room Scheduling: Tpmc-4Sm

    An incredibly thin profile and small footprint allow the TPMC-4SM to be installed in places other touch screens just cannot go, providing the choice of mounting to a standard electrical box or to virtually any flat surface, even glass, granite or marble.
  • Page 6 Available with black or white smooth finish Advanced Touch Screen Control A Crestron touch screen offers an ideal user interface for controlling all the technology in a home, boardroom, classroom, courtroom or command center. Touch screens do away with piles of remote controls, cluttered wall switches and cryptic computer screens, simplifying and enhancing the technology.
  • Page 7 High performance streaming video capability makes it possible to view security cameras and other video sources over the network right on the touch screen. Native support for H.264 and MJPEG formats allows the TPMC-4SM to display live video images from IP cameras and servers such as the Crestron CEN-NVS200 Network Video Streamer (sold separately).
  • Page 8 Single Wire Connectivity A simple Ethernet LAN connection is all that is required to wire the TPMC-4SM, containing all control, video, intercom and power signals within a single wire. Power over Ethernet Using PoE technology, the TPMC-4SM gets its operating power right through the LAN wiring.

  • Page 9: Applications

    Crestron TPMC-4SM 4.3” Touch Screen with Room Scheduling Applications The following diagram shows a TPMC-4SM in a typical application. TPMC-4SM in a Typical Application Operations & Installation Guide – DOC. 6845E 4.3” Touch Screen with Room Scheduling: TPMC-4SM • 5...

  • Page 10: Specifications

    4.3” Touch Screen with Room Scheduling Crestron TPMC-4SM Specifications Specifications for the TPMC-4SM are listed in the following table. TPMC-4SM Specifications SPECIFICATION DETAILS Touch Screen Display Display Type TFT active matrix color LCD Size 4.3 inch (109 mm) diagonal Aspect Ratio...
  • Page 11 Virtual Mouse & Keyboard ® Software for Windows 1. Wakes the touch screen and backlight. 2. Refer to “Identity Code” on page 11 for details. Operations & Installation Guide – DOC. 6845E 4.3” Touch Screen with Room Scheduling: TPMC-4SM • 7...

  • Page 12: Physical Description

    4.3” Touch Screen with Room Scheduling Crestron TPMC-4SM Physical Description This section provides information on the connections, controls and indicators available on the TPMC-4SM. TPMC-4SM Physical View 8 • 4.3” Touch Screen with Room Scheduling: TPMC-4SM Operations & Installation Guide – DOC. 6845E...
  • Page 13 1.21 in (31 mm) 0.46 in (12 mm) 1.70 in (44 mm) 2.36 in (60 mm) 2.00 in (51 mm) 3.25 in (83 mm) Operations & Installation Guide – DOC. 6845E 4.3” Touch Screen with Room Scheduling: TPMC-4SM • 9...
  • Page 14 The pin out table indicates signal connections. dc power applied by Ethernet power sourcing equipment (PSE) can connect to either signal pins or N/C pins. 10 • 4.3” Touch Screen with Room Scheduling: TPMC-4SM Operations & Installation Guide – DOC. 6845E...

  • Page 15: Setup

    The IP ID is set within the TPMC-4SM’s IP table using Crestron Toolbox™. For information on setting an IP table, refer to the Crestron Toolbox help file. The IP IDs of multiple TPMC-4SM devices in the same system must be unique.

  • Page 16: Configuring The Touch Screen

    NOTE: The only connection required to configure the touch screen is power. Refer to “Hardware Hookup” on page 26 for details. NOTE: The TPMC-4SM can take up to 45 seconds to boot to a display after initial power up. The setup screens allow basic configuration procedures prior to regular operation of the touch screen.
  • Page 17 For example, touching the IP Address / Hostname field opens the keyboard illustrated on the following page. Operations & Installation Guide – DOC. 6845E 4.3” Touch Screen with Room Scheduling: TPMC-4SM • 13...
  • Page 18 “Edit Control System Settings” screen, touch Save to keep the new setting or Cancel to cancel it. On the TPMC-4SM, DHCP is enabled by default. To switch to a static IP address, touch IP Address Settings on the “Ethernet Setup” menu, to access the “Edit IP Address Settings”...

  • Page 19: Audio Setup

    Volume, Wave Volume, Mute controls for all three and a Play Test Wave button. Touch Back to return to the “Panel Setup Options” menu. “Audio Settings” Screen Operations & Installation Guide – DOC. 6845E 4.3” Touch Screen with Room Scheduling: TPMC-4SM • 15...

  • Page 20: Display Settings

    Touch Left LED Color Settings to enter the “Display Settings” screen for Left Bank LED Color. Options are Green, Red and Off. Touch Back to return to the main “Display Settings” menu. 16 • 4.3” Touch Screen with Room Scheduling: TPMC-4SM Operations & Installation Guide – DOC. 6845E...
  • Page 21 On the “Panel Setup Options” menu, the About button opens a small window displaying the Firmware Version and the OS Image Version. Click OK to close the window. Operations & Installation Guide – DOC. 6845E 4.3” Touch Screen with Room Scheduling: TPMC-4SM • 17...
  • Page 22 On the main “Diagnostics” menu, the Touch Test button displays the following screen, with a Calibrate button to initiate touch screen calibration. The Calibrate Touch button on the “Diagnostics” menu also initiates touch screen calibration. 18 • 4.3” Touch Screen with Room Scheduling: TPMC-4SM Operations & Installation Guide – DOC. 6845E...
  • Page 23 Inactive to Active as appropriate for each sensor’s activity. Similarly, the TPMC-4SM’s own proximity sensor’s indicator changes from Inactive to Active when the TPMC-4SM senses motion in front of the unit. Touch Back to return to the main “Diagnostics” menu.
  • Page 24 4.3” Touch Screen with Room Scheduling Crestron TPMC-4SM “Test Patterns” Menu On the main “Diagnostics” menu, to perform a test of the TPMC-4SM’s built-in microphone, touch Mic Test. The button label changes to RECORDING/PLAYBACK. Speak into the microphone on the front of the TPMC-4SM and the recording is played back to confirm the microphone is functioning.

  • Page 25: Changing The Button Inserts

    4.3” Touch Screen with Room Scheduling Changing the Button Inserts The TPMC-4SM ships with 10 “hard key” push buttons for quick access to commonly used functions. For a clean appearance, either column of buttons may be removed and covered using the no-button covers provided.

  • Page 26: Installation

    The TPMC-4SM is supplied with screws for installation into an electrical box. Mounting in a US Electrical Box NOTE: When mounting the TPMC-4SM into an electrical box, the box must be installed horizontally. To mount the TPMC-4SM into an electrical box, use the following procedure: Insert a small slot head screwdriver into the hole shown in the following illustration and gently separate the back of the TPMC-4SM.
  • Page 27 NOTE: Use the left and right screw holes for attachment to the electrical box. Mounting the TPMC-4SM into an Electrical Box Carefully position the front of the TPMC-4SM over the back panel and gently snap it into place, as shown in the following illustration.
  • Page 28 4.3” Touch Screen with Room Scheduling Crestron TPMC-4SM Use two of the included #04-40 x 1/4” screws to secure the TPMC-4SM, as shown in the following illustration: For standard applications, use the Phillips screws (2007152 or 2007160). For secure applications, use the security type Torx screws (2025311 or 2025312) along with the included Torx screwdriver bit (2025915).
  • Page 29 Insert a small slot head screwdriver into the hole shown in the illustration at the top of page 21 and gently separate the back of the TPMC-4SM. Use the two included #4B x 3/4” screws (2019088) to attach the back panel to the electrical box, as shown in the following illustration.

  • Page 30: Hardware Hookup

    Make the necessary connections as called out in the illustration that follows this paragraph. Apply power after all connections have been made. When making connections to the TPMC-4SM, use Crestron power supplies for Crestron equipment. Hardware Connections for the TPMC-4SM...

  • Page 31: Uploading And Upgrading

    Finally, program checks can be performed (such as changing the device ID or creating an IP table) to ensure proper functioning. NOTE: Crestron software and any files on the Web site are for authorized Crestron dealers and Crestron Service Providers (CSPs) only. New users must register to obtain access to certain areas of the site (including the FTP site).

  • Page 32: Programs, Projects And Firmware

    A defined IP table can be saved to a file or sent to the device. Edit the control system’s IP table to include an entry for the TPMC-4SM. The entry should list the TPMC-4SM’s IP ID (specified on the TPMC-4SM’s IP table) and the internal gateway IP address 127.0.0.1.

  • Page 33: Problem Solving

    Crestron TPMC-4SM 4.3” Touch Screen with Room Scheduling Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. TPMC-4SM Troubleshooting TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION...

  • Page 34: Further Inquiries

    Crestron worldwide offices on the Crestron Web site (www.crestron.com/offices) for assistance within a particular geographic region. To post a question about Crestron products, log onto the Online Help section of the Crestron Web site (www.crestron.com/onlinehelp). First-time users must establish a user account to fully benefit from all available features.

  • Page 35: Return And Warranty Policies

    (property or economic damages inclusive) arising from the sale or use of this equipment. Crestron is not liable for any claim made by a third party or made by the purchaser for a third party.
  • Page 36 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6845E (2024510) 15 Volvo Drive Rockleigh, NJ 07647 Tel: 888.CRESTRON 05.13 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
