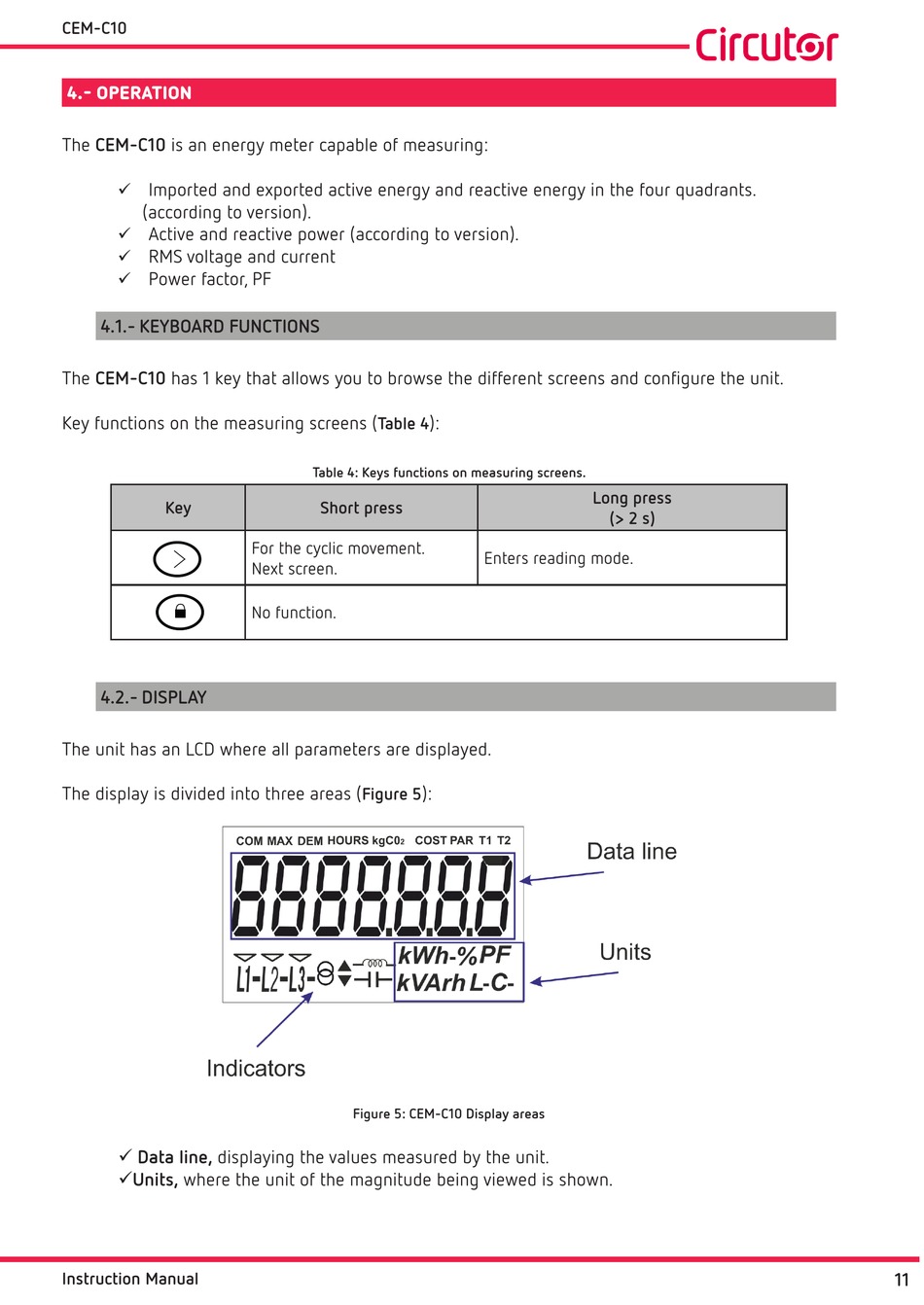

4.- OPERATION
The CEM-C10 is an energy meter capable of measuring:
Imported and exported active energy and reactive energy in the four quadrants.

(according to version).
Active and reactive power (according to version).

RMS voltage and current

Power factor, PF

4�1�- KEYBOARD FUNCTIONS
The CEM-C10 has 1 key that allows you to browse the different screens and configure the unit.
Key functions on the measuring screens (
Key
4�2�- DISPLAY
The unit has an LCD where all parameters are displayed.
The display is divided into three areas (
 Data line, displaying the values measured by the unit.
Units, where the unit of the magnitude being viewed is shown.
Instruction Manual
Table 4
Table 4: Keys functions on measuring screens�
Short press
For the cyclic movement.
Next screen.
No function.
):
Figure 5
Figure 5: CEM-C10 Display areas
):
Long press
Enters reading mode.
(> 2 s)
