Only displayed if the reactive energy display option has been selected in the setup menu. (see "4.7.6.
(1)
Display").
The standby mode is activated again when no key is pressed for 60 seconds.
4�4�2� READING MODE DISPLAY
The reading mode is activated by a long press on the key.
In reading mode you can:
 View the voltage, current, active power, apparent power and power factor of the installation.
 View the energies of the partial energy meters.
 Enter the programming menu.
 View the manufacturer information.
The navigation diagram is shown in
Note: PC is a short press on the
PL is a long press
14
:
Figure 7

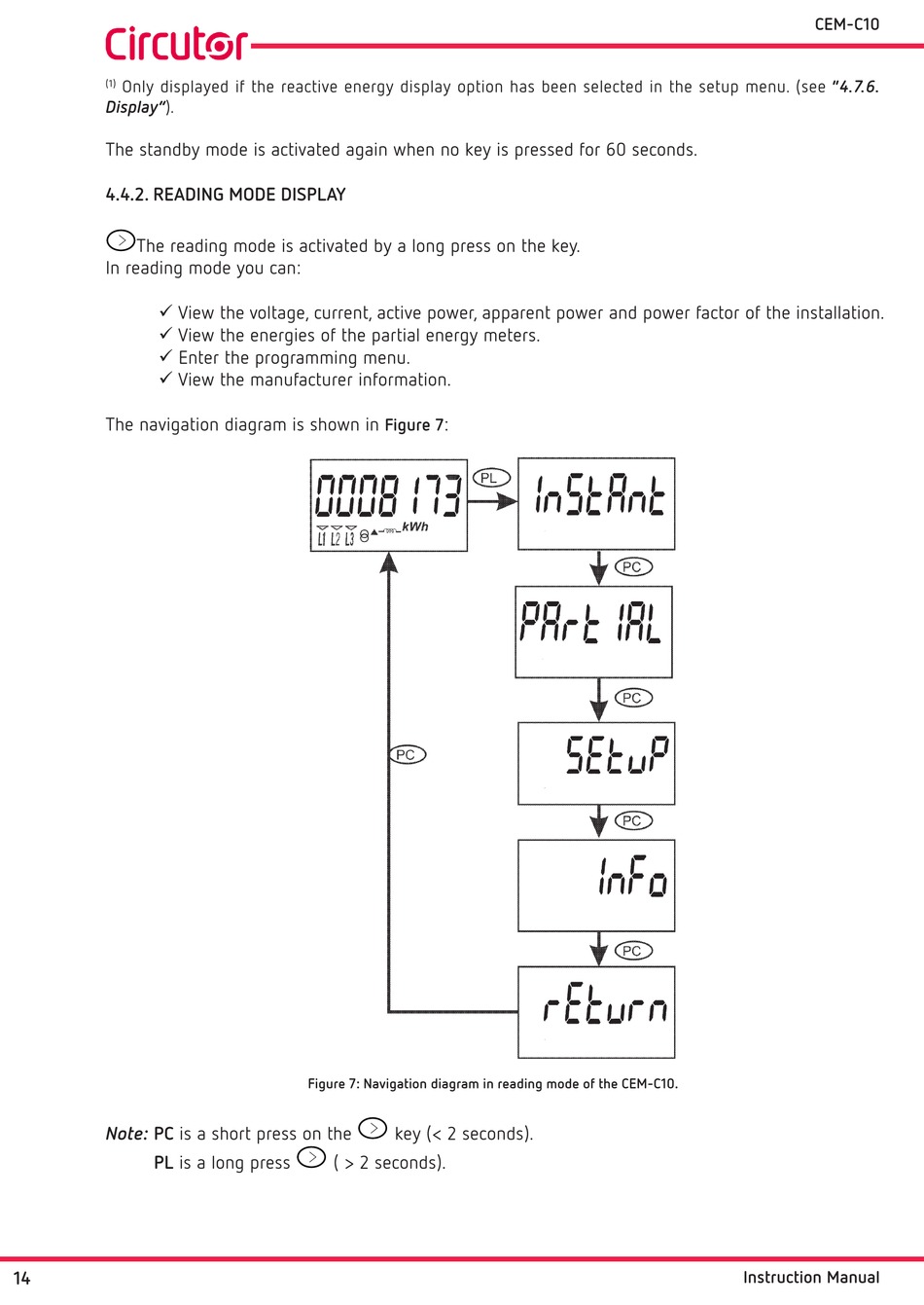

Figure 7: Navigation diagram in reading mode of the CEM-C10�
key (< 2 seconds).
( > 2 seconds).
