  • Page 1 Multifunctional Energy Meter CEM-C12c CEM-C12c-MID INSTRUCTION MANUAL (M362B01-03-22A)
  • Page 2 CEM-C12c Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR S�A�U� reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S�A�U� on its web site, supplies its customers with the latest versions of the device specifi- cations and the most updated manuals.
  • Page 4: Table Of Contents

    CEM-C12c CONTENTS SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������3 DISCLAIMER ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �����������������������������������������������������������������������������������������������������������������������������������������������������������������������5 SYMBOLS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������5 1�- VERIFICATION UPON RECEPTION ������������������������������������������������������������������������������������������������������������������������������������6 2�- PRODUCT DESCRIPTION �������������������������������������������������������������������������������������������������������������������������������������������������6 3�- DEVICE INSTALLATION ����������������������������������������������������������������������������������������������������������������������������������������������������7 3�1�- PRELIMINARY RECOMMENDATIONS ������������������������������������������������������������������������������������������������������������������������7 3�2�- INSTALLATION ���������������������������������������������������������������������������������������������������������������������������������������������������������8 3�3�- DEVICE TERMINALS �������������������������������������������������������������������������������������������������������������������������������������������������9 3�4�- CONNECTION DIAGRAM �������������������������������������������������������������������������������������������������������������������������������������������9 4�- OPERATION �������������������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 5: Revision Log

    CEM-C12c REVISION LOG Table 1: Revision log� Date Revision Description 06/22 M362B01-03-22A Initial Version SYMBOLS Table 2: Symbols� Symbol Description In compliance with the relevant European directive. Device covered by European directive 2012/19/EC. At the end of its useful life, do not leave the unit in a household waste container.
  • Page 6: 1�- Verification Upon Reception

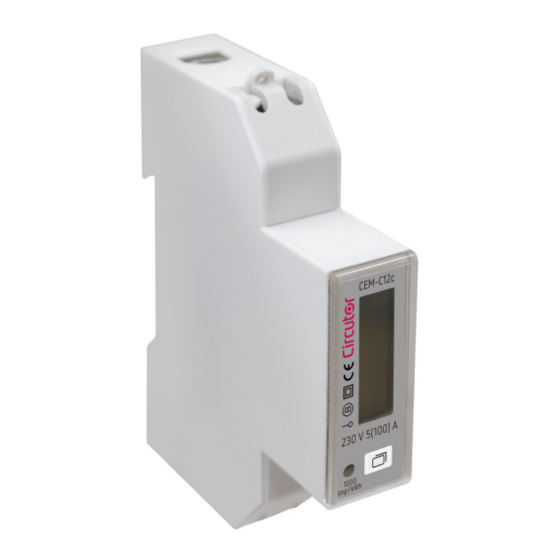

    CIRCUTOR's after-sales service. 2.- PRODUCT DESCRIPTION The CEM-C12c static single-phase energy meter measures class 1 (IEC 62053-21) / class B (EN50470), with multifunction, RS-485 communications and DIN rail standard installations. It is the ideal solution for residential and commercial installations.
  • Page 7: 3�- Device Installation

    The CEM-C12c device must be installed by authorised and qualified staff. The measuring systems switched off before handling, altering the connections or replacing the device.
  • Page 8: 3�2�- Installation

    CEM-C12c 3�2�- INSTALLATION Terminals, opening covers or removing elements can expose parts that are hazardous to the touch while the device is powered. Do not use the device until it is fully installed. Installation instruction: 1�- Choose 35mm standard DIN rail (the length is confirmed by yourself), fixed them in the location which are waiting for installation.
  • Page 9: 3�3�- Device Terminals

    CEM-C12c 3�3�- DEVICE TERMINALS Table 3:List of CEM-C12c terminals� Device terminals 1 : L, Input, connected to the mains phase B-: B-, RS-485 connection 3: LOAD, Output S: S, RS-485 connection N: N, Input, connected to neutral A+: A+, RS-485 connection Figure 4:Terminals of the CEM-C12c�...
  • Page 10: 4�- Operation

    CEM-C12c 4.- OPERATION The CEM-C12c measures in the 4 quadrants (consumption and generation). Single-phase Single-phase Three-phase Three-phase 90º Inductive Capacitive 180º 0º Inductive Capacitive Single-phase Three-phase Single-phase Three-phase -90º Generation Consumption Power Power Figure 6: Sign convention� Table 4: CEM-C12c Measurement parameters�...
  • Page 11 15 minutes. The result would be 60 values per hour. Integration period Integration period Sliding window Calculation time Integration period Figure 8:Sliding Window� The CEM-C12c calculates the Maximum demand with a fixed window and a 15-minute integration period Instruction Manual...
  • Page 12: 4�1�- Keyboard Functions

    CEM-C12c 4�1�- KEYBOARD FUNCTIONS The CEM-C12c has one key to move around the different screens and configure the communications Figure 9 Display Keyboard Figure 9: CEM-C12c, description� 4�2�- DISPLAY The device has an LCD where all parameters are displayed ( Figure 9 4�3�- LED INDICATORS...
  • Page 13 CEM-C12c 5.- DISPLAY The data can be displayed through 2 methods:  Automatically, the device automatically switches screens every 5 seconds.  Pressing the key. Total Active Energy (consumed + generated) (kWh) Inductive Reactive Energy consumed (kVArh) Voltage (V) Current (A) Frequency (Hz) Power factor (cos Φ)
  • Page 14: 6�- Configuring Rs-485 Communications

    CEM-C12c 6.- CONFIGURING RS-485 COMMUNICATIONS To go into the communications configuration menu, press > 5 seconds while in any display screen. > 5s > 3s Peripheral number > 3s Modbus Baud rate > 3s > 3s Data bits > 3s Parity >...
  • Page 15: 6�1�- Peripheral Number

    CEM-C12c 6�1�- PERIPHERAL NUMBER This screen enables peripheral number configuration. To go into the configuration screen, press > 3 seconds. > 3s Press to change the digit value. Press > 3 seconds to change digits. If the last digit is pressed for >...
  • Page 16: 6�3�- Data Bits

    CEM-C12c Press to skip to the next programming step. 6�3�- DATA BITS This screen shows the number of data bits. Press > 3 seconds to open the configuration screen. > 3s Note: This parameter cannot be modified. Press to skip to the next programming step.
  • Page 17: 6�6�- Exit From Menu

    CEM-C12c Press to change options. Press > 3 seconds to save the change. The screen shown in indicates that the changes Figure 11 have been saved correctly. Configuration values  Table 8: Configuration values: Stop bits� Stop bits 1 stop bit...
  • Page 18: 7�- Rs-485 Communications

    CEM-C12c 7.- RS-485 COMMUNICATIONS The CEM-C12c has one RS-485 communications port to view the measurement data and configure the devices. The visualization and configuration can also be done through the CIRCUTOR PowerStudio software. Note: Default values of RS-485 communication: No. of peripheral 1, 9600 bps, No parity, 8 data bits and 1 stop bit.
  • Page 19: 7�2�- Modbus Commands

    CEM-C12c Address: 01, Peripheral number: 1 in decimals. Function: 10, Writing function. Initial Register: 0064, Address of the Baud rate parameter. No of registers: 0001, number of registers write. No of bytes: 02, number of bytes write. Value: 0001, 0001 → 9600 bps.
  • Page 20 CEM-C12c Tabla 10(Continuación) : Mapa de memoria Modbus (Tabla 2) Modbus Parameter Function Units address Total active Energy (Consumed + Generated) 5B - 5C kWh x 100 Total reactive energy (Consumed + Generated) 5D - 5E kvarh x 100 Table 11: Modbus memory map (Table 3)�...
  • Page 21: 8�- Technical Features

    CEM-C12c 8.- TECHNICAL FEATURES Power supply Mode Self-powered Voltage Measurement Connection Single-phase Reference voltages 230 V ~ CEM-C12c 50 / 60 Hz Frequency CEM-C12c-MID 50 Hz Power consumption ≤ 12 VA, ≤ 1 W Current measurement CEM-C12c Rated Current (In) CEM-C12c-MID 0.25 ...
  • Page 22 Electricity metering equipment (a�c�) -- Part 3: Particular requirements - Static me- EN 50470-3 ters for active energy (class indexes A, B and C) CEM-C12c-MID MID (Measuring Instruments Directive): EU Directive 2014/32/EU on Measuring Instruments Annex II, Module B 47.8 Figure 12: Dimensions of the CEM-C12c� Instruction Manual...
  • Page 23: 9�- Maintenance And Technical Service

    CEM-C12c 9.- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR S�A�U� Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 24: 11�- Ce Certificate

    CEM-C12c 11.- CE CERTIFICATE Instruction Manual...
  • Page 25 CEM-C12c Instruction Manual...
  • Page 26 CEM-C12c Instruction Manual...
  • Page 27 CEM-C12c Instruction Manual...
  • Page 28 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 -Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
