4�6�- Partial Energy Display - Circutor CEM-C10 Instruction Manual

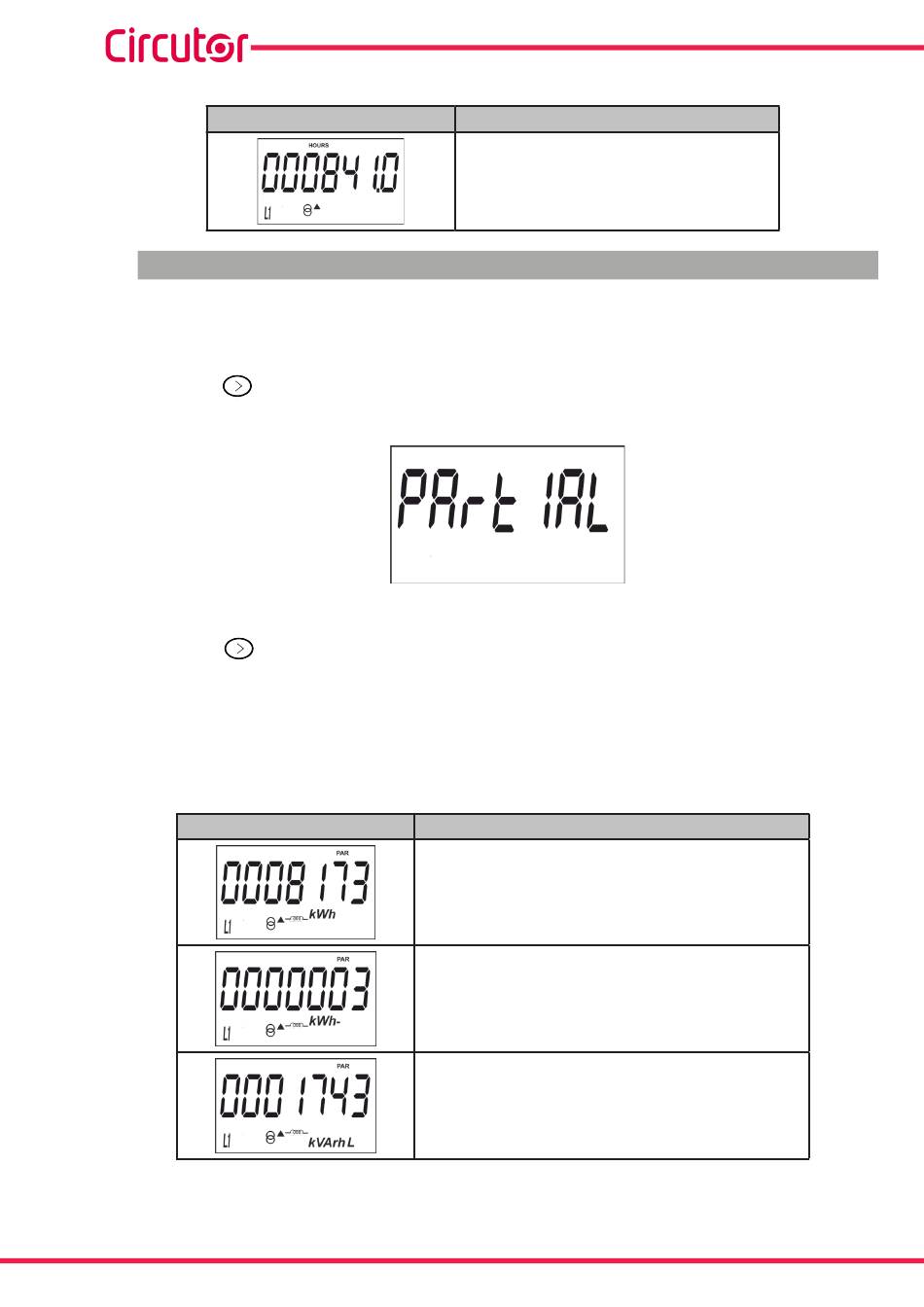

4�6�- PARTIAL ENERGY DISPLAY
Note: The partial energy display menu is only displayed if the partial energy display option has been
selected in the setup menu (see
Long press the
to display the partial energy main screen,
Long press the
Short press the key to browse the different screens (see Table 7).
The PAR icon on the screen indicates that you are viewing the partial energies.
The standby mode is activated again when no key is pressed for 60 seconds.
16
Table 6 (Continuation): Instantaneous value screens
Screen
"4.7.6. Display" ).
key in the standby mode screen to open these display screens. Short press the key
Figure 9
Figure 9: Partial energy main screen�
key to open the different screens.
Table 7:Partial energy screens�
Screen
Parameters
Hours of operation from manufacture
:
Parameters
Partial imported active energy.
Partial exported active energy.
Only displayed in the 4-quadrant version.
Partial reactive energy, quadrant 1 (L+).
CEM-C10
(2)
Instruction Manual
