Exploded View Drawings; Cabinet Assembly - CMA Dishmachines CMA-L-1X Parts Manual

1.3.

Exploded View Drawings

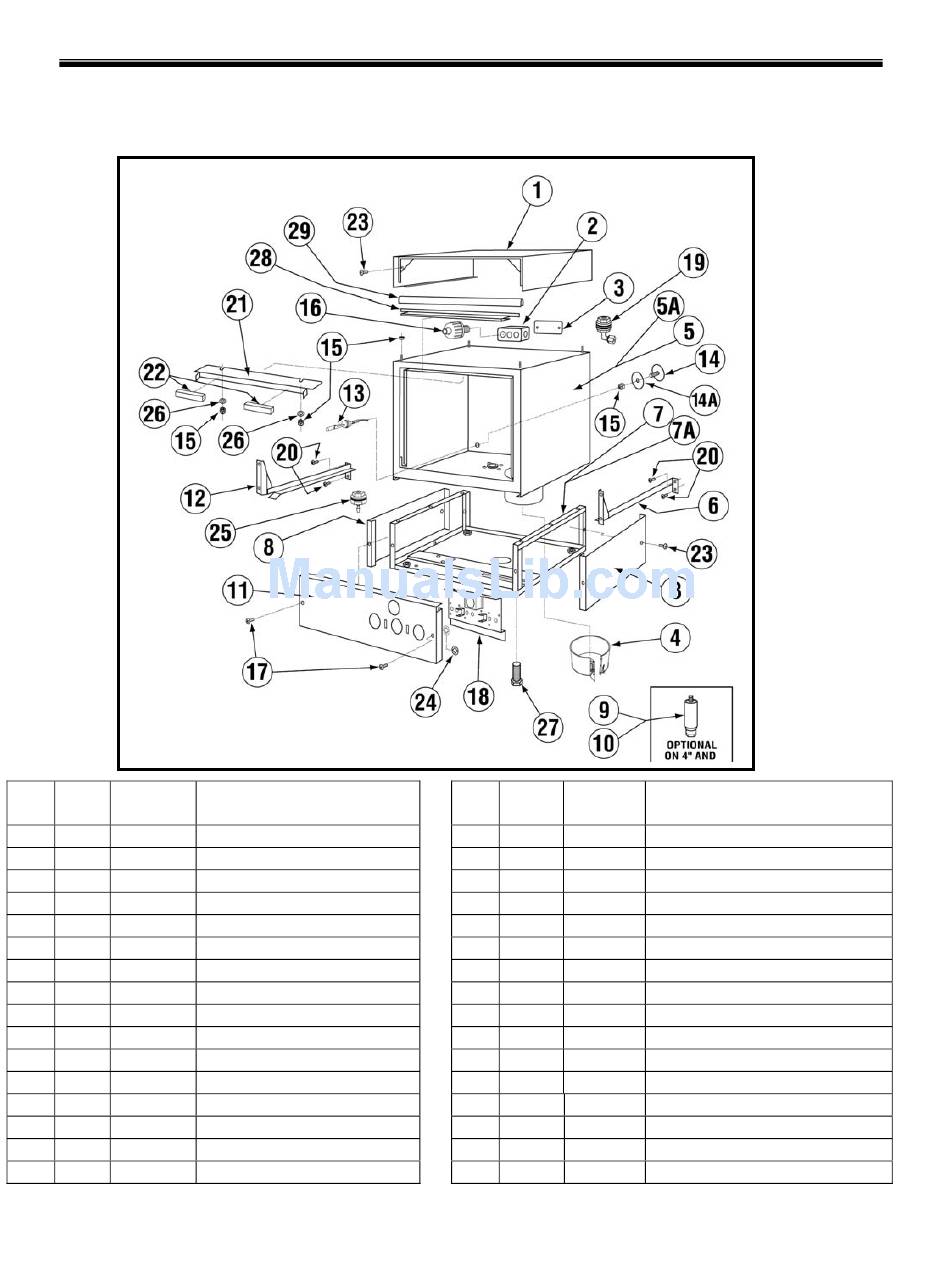

1.3.1. Cabinet Assembly

ITEM NO.
P/N
NO. REQ'D
1 1 04903.60
2 1 03420.00
3 1 03423.00
4 1 04109.10
5 1 04901.60
5A 1 04901.73
6 1 04911.60
7 1 04902.82
7A 1 04902.73
8 2 04902.84
9 4 01146.50
10 4 01146.00
11 1 04915.86
12 1 04912.60
13 2 13463.00
14 1 01513.60
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16
DESCRIPTION
EZ top
Undercounter Bell Box
Undercounter Bell Box Cover
Sump Heater (Optional)
Stainless Steel Body
Stainless Steel Body L-1X16
Tray Track (RH)
Stand "Open Style" L-1X
Stand "Open Style" L-1X16
Panels for Open Style Stand
4" Leg (Optional)
6" Leg (Optional)
Front Peri Pump Panel
Tray Track (LH)
Liquid Level Switch (Optional)
Hole Stopper
ITEM NO.
P/N
NO. REQ'D
14A 1 00752.60
15 9 00912.00
16 1 00401.50
17 2 00941.00
18 1 04914.86
19 2 03415.00
20 4 00914.00
21 1 14558.00
22 1 00557.80
23 10 00940.50
24 2 03816.00
25 1 03415.60
26 2 00924.00
27 4 01310.60
28 1 14506.45
29 1 14506.50
Parts Manual
DESCRIPTION
Hole Stopper Gasket
Nylon Lock Nut 1/4"-20
3/8" Black Nylon Straight Connector
10-32 x 5/8" Pan head Screw
L-1C and L-1X Peri Pump Mount
Chemical Tube Bulkhead
1/4-20 x 3/4" Hex Head Bolt
Body Magnet Holder
Door Magnet
10-32 x 3/8" Truss Head Screw
Nylon Retaining Washer
Chemical Tube Bulkhead Barbed
Washer SS 1/4"
Leg Adjusters
Gasket Bracket
Door Gasket
Page
5
