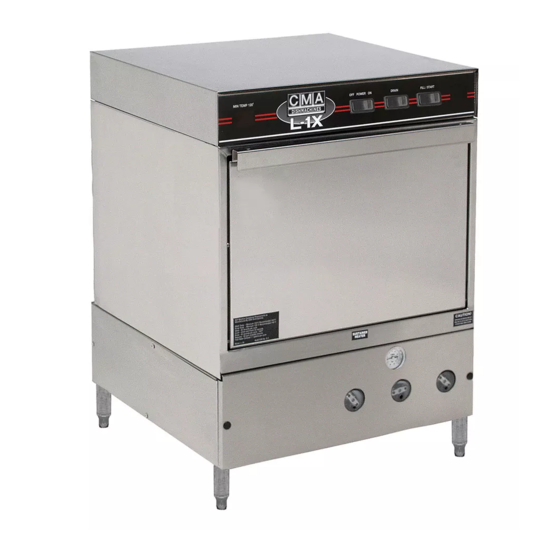

Summary of Contents for CMA Dishmachines L-1X
- Page 1 MODEL L-1X & L-1X16 PARTS MANUAL Rev 1.18B C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841...
-
Page 2: Table Of Contents
RAWINGS 1.2.1. Cabinet Assembly ........................4 1.2.2. Cabinet Assembly (Effective 06/2007) ..................5 1.2.3. L-1X Door Assembly (Old Style) .................... 6 1.2.4. L-1X/L-1X16 Door Assembly ....................7 1.2.5. Spray System Assembly ......................8 1.2.6. S/S Pump Assembly (Effective August 2009) ................9 1.2.7. -
Page 3: Parts Manual
NOTE: CMA recommends that the initial parts kit be kept on hand as a back up supply of critical parts in the event your machine should require emergency service. All the parts included in this kit are unique to the L-1X and L-1X16 dishmachine. Page... -
Page 4: Exploded View Drawings
Peri Pump Panel w/ Prime Switch 00924.00 Washer SS 1/4" 04912.60 Tray Track (LH) 01310.60 Leg Adjusters 13463.10 Liquid Level Switch) 14506.45 Gasket Bracket 01513.60 Hole Stopper 14506.50 Door Gasket Thermometer 03202.00 not shown Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 5: Cabinet Assembly (Effective 06/2007)
Leg Adjusters 04912.60 Tray Track (LH) 14506.45 Gasket Bracket 13463.10 Liquid Level Switch (Optional) 14506.50 Door Gasket 01513.60 Hole Stopper 03475.00 Prime Switches 00752.60 Hole Stopper Gasket 03476.00 Prime Switch Boots Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 6: L-1X Door Assembly (Old Style)
Washer 1/4" SS 04510.00 L-1C Door Catch Plate 00912.00 Lock Nut Nylon 1/4"-20 04511.00 L-1C Catch Hemi-Ball SS 04512.00 L-1C Catch Ball Spring *Excludes Item #2, 11, 14, 15 & 16 Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 7: L-1X/L-1X16 Door Assembly
Door Support Rod Right 00914.10 1/4"-20 x 5/8” Hex Head Bolt 04919.50 Door Support Rod Left 14518.00 Splash Guard 00557.80 Door Magnet 00924.00 1/4 SS Washer 00970.60 6 32 x 1/2" Flathead Screw Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 8: Spray System Assembly
1/4"-20 x 3/4" Truss Head Bolt 04306.00 Square Manifold Gasket 04305.10 Silicon Gasket 04303.00 L-1X Spray Arm Bearing 00304.03 Spray Arm 00308.50 Spray Arm End Plug 04301.00 L-1X Spray Manifold 04301.60 L1-X16 Spray Manifold Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 9: S/S Pump Assembly (Effective August 2009)
SS Pump Seal Shaft Nut 8mm 03222.60 SS Pump Impeller 00914.70 Socket Head Screw 10 mm 50302.10 1" MPT x 1" Barb Brass 00208.21 Slip Joint Nut Friction Ring Plastic 04206.75 SS Pump Cover Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 10: Pump Assembly
1/2" Comp x 3/8” MIP Adapter 03222.05 Impeller (universal) open 00208.21 Slip Joint Nut Friction Ring Plastic 04206.30 Pump cover for L-1X/L-1X16 03232.00 1/8” Male Plug 00208.40 Slip Joint Nut O Ring Gasket Buna Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 11: Plumbing System Assembly (Effective August 2012)
^ 1/2 Ball Valve Strainer Only 00760.00 5/8” Comp. X 1/2" MIP Adapter 00970.40 6-32 x 1/4" Phillips Pan Head Screw 04606.00 L-1X “L” Tube 00706.10 Plunger Spring Only 04606.60 L-1X16 “L” Tube Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 12: Plumbing System Assembly
L-1X “L” Tube 41015.60 1/4 Water Solenoid Coil Only 110V 04606.60 L-1X16 “L” Tube 03604.30 Dema Valve Repair Kit 1/2" 00915.00 1/4"-20 Hex Nut 41062.10 ^ 1/2 Ball Valve Strainer Only Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 13: Drain System Assembly
Drain Valve 115V 04113.00 Drain Valve 115V New Style 03108.51 1” Goose Neck Drain Hose 03109.00 Drain Hose 90DEG 1" 04110.00 L-1X Drain Screen SS 50302.06 1” MIP x 1” Barb PVC Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 14: Control Box
06231.00 L-1X Drawer Label 03470.00 Toggle Switch (Momentary) 06231.02 L-1X16 Drawer Label 03406.64 Drain Toggle Switch DPST 00940.50 10-32 x 3/8” Truss Head Screw *Second relay present only with heater option. Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 15: Control Box (Effective 06/2007)
03408.50 Counter (Panel Mount – Small) 03202.60 Thermometer Transformer 00916.00 6-32 PM Nut 00438.00 Snap bushing, Universal 00421.51 6-32 X 1/4 SS Panhead Screw 13826.50 4-40 Hex Nuts 03485.00 Switch Guard Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 16: Peristalic Pump Assembly
00415.00 Complete Peristaltic Pump 02257.00 Squeeze Tube 8" Norprene 03415.60 Bulk Head For Sanitizer 00419.00 Peristaltic Rotor Assembly 02257.22 Squeeze Tube 22" Norprene For L-1X *Item 16 includes items 1-4, 6-10. Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 17: Drain Valve
Drain Valve Housing 00941.00 #10-32 x 5/8” Pan Head Screw 04103.24 Drain Valve Housing Spacer 04103.16 Hinge/Seal 04103.15 Drain Housing Gasket 04103.13 Drain Valve Housing Cover 04103.18 #8 x 5/8” Self-Threading Screw Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 18: Drain Valve (Effective January 2011)
Drain Seal Bearing (White Washer) 04103.13 Drain Valve Housing Cover 04113.18 Valve Cover Screw 04103.16 Drain Valve Hinge/Seal 04103.15 Drain Valve Housing Gasket 04113.12 Drain Valve Housing 04103.18 #8 X 5/8 Self Threading Screw Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B... -
Page 19: Exploded View
Squeeze Tube, 8” 40126.10 #10 x 3/4" Sheet metal Screw 00521.00 Wire, 18 Gauge, Orange, 6 ft. 40127.00 Wall Anchors 00531.00 Wire, 18 Gauge, White, 6 ft. 00426.00 Y Hose Connector, 3/16” Page MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18B...
