Exploded View Drawings; Cabinet Assembly - CMA Dishmachines L-1C Parts Manual

1.3.

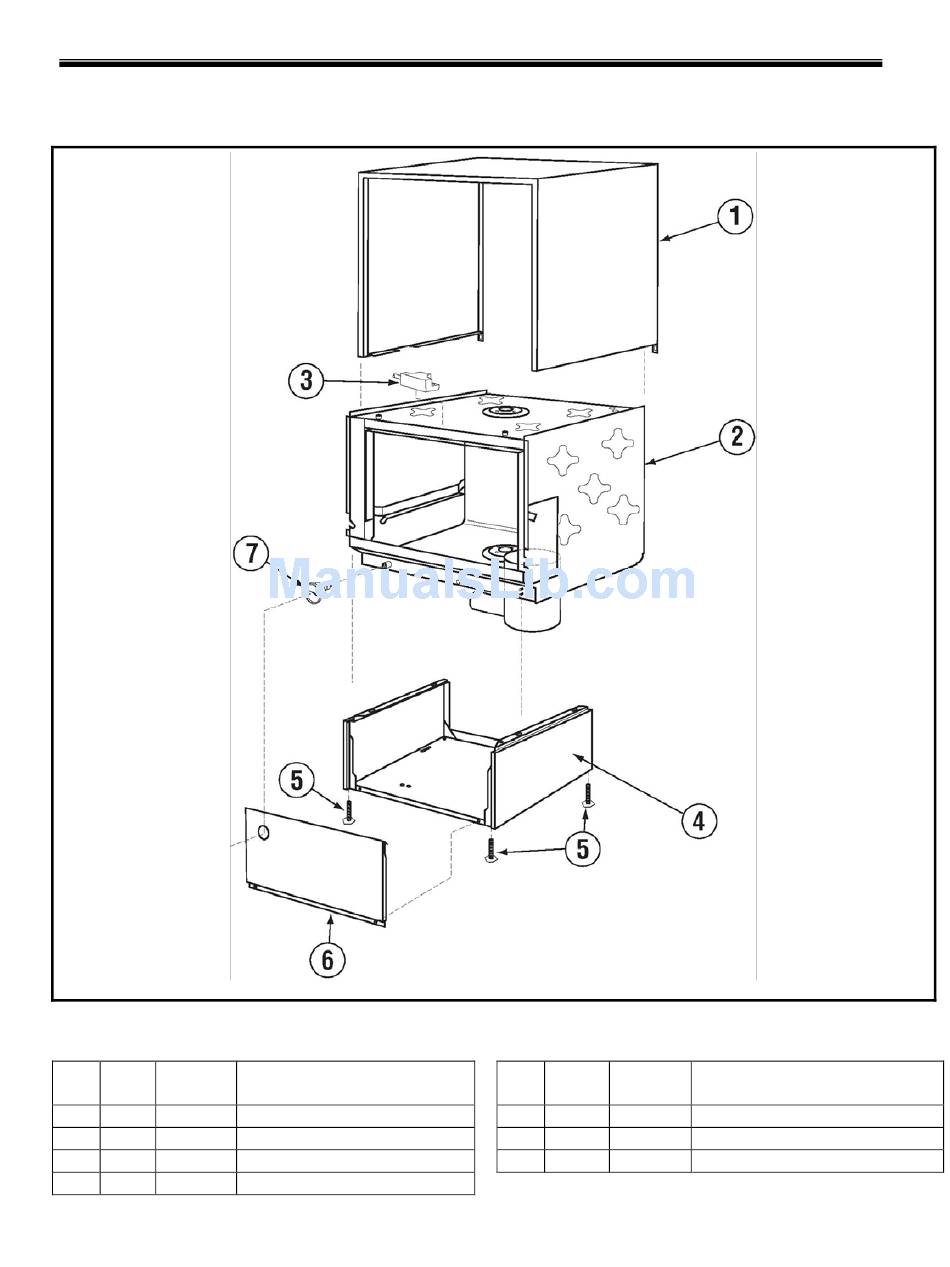

Exploded View Drawings

1.3.1. Cabinet Assembly

ITEM NO.
P/N
NO. REQ'D
1 1 05903.00
2 1 05901.00
3 1 00556.10
4 1 5902.00
MODEL L-1C PARTS MANUAL Rev. 1.00
DESCRIPTION
Energy Mizer L-1C Wrapper
Energy Mizer L-1C Body
Reed Switch
Energy Mizer L-1C Base
Parts Manual
ITEM NO.
P/N
NO. REQ'D
5 4 05933.00
6 1 05904.00
7 1 00120.01
DESCRIPTION
Energy Mizer L-1C Feet
Energy Mizer L-1C Front Panel
BiMetal Thermometer
5
Page
