Drain System Assembly - CMA Dishmachines CMA-L-1X Parts Manual

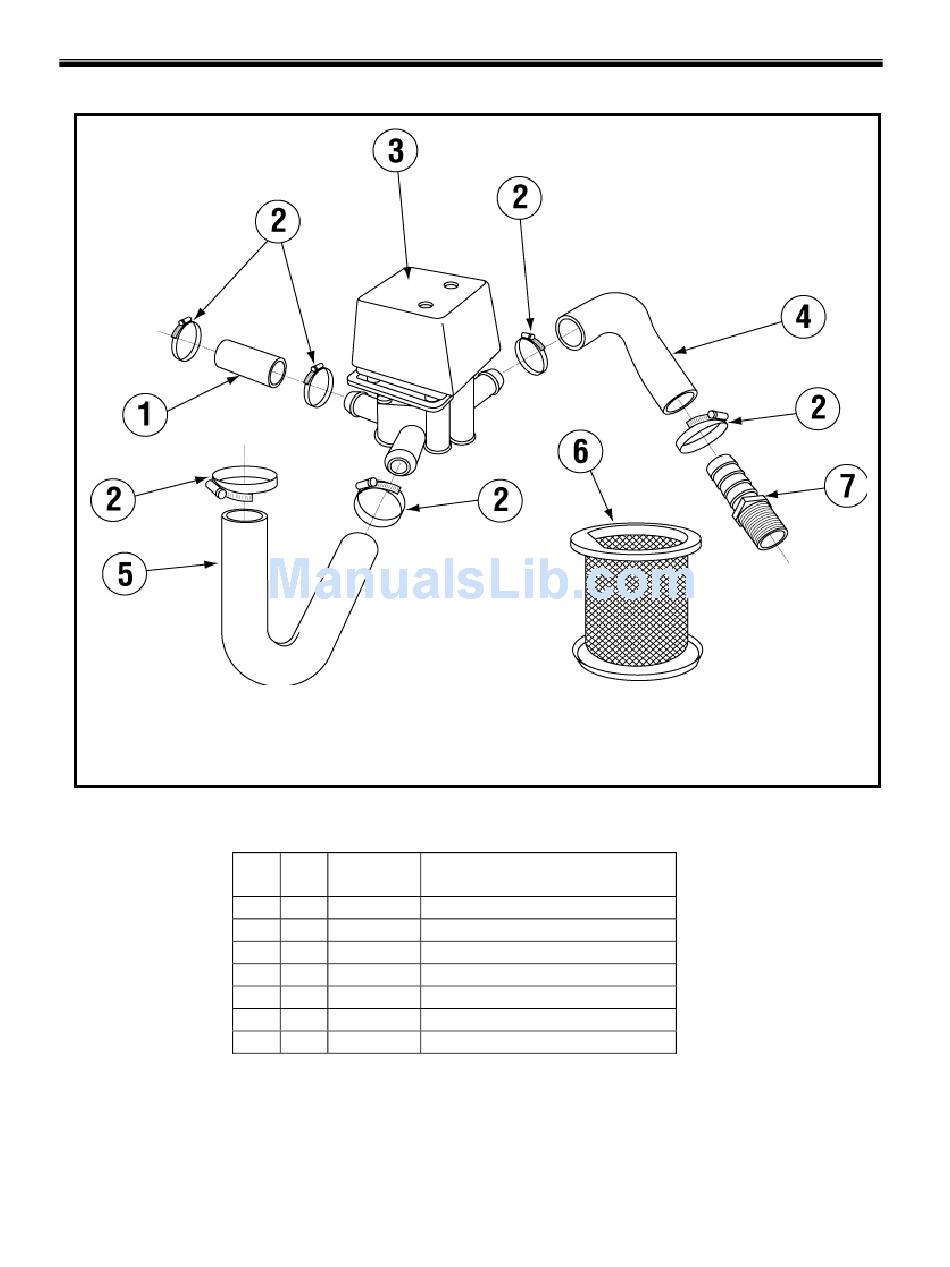

1.3.8. Drain System Assembly

ITEM
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16
NO.
P/N
NO. REQ'D
1 2 04105.00
2 8 03101.00
3 1 04103.00
4 1 03108.51
5 1 03109.00
6 1 04110.00
7 1 50302.06
DESCRIPTION
Pump Hose 6.5"
1" Hose Clamp #16
L-1X Drain Valve (Depend-O-Drain)
1" Goose Neck Drain Hose
Drain Hose 90DEG 1"
L-1X Drain Screen SS
1" MIP x 1" Barb PVC
Parts Manual
12
