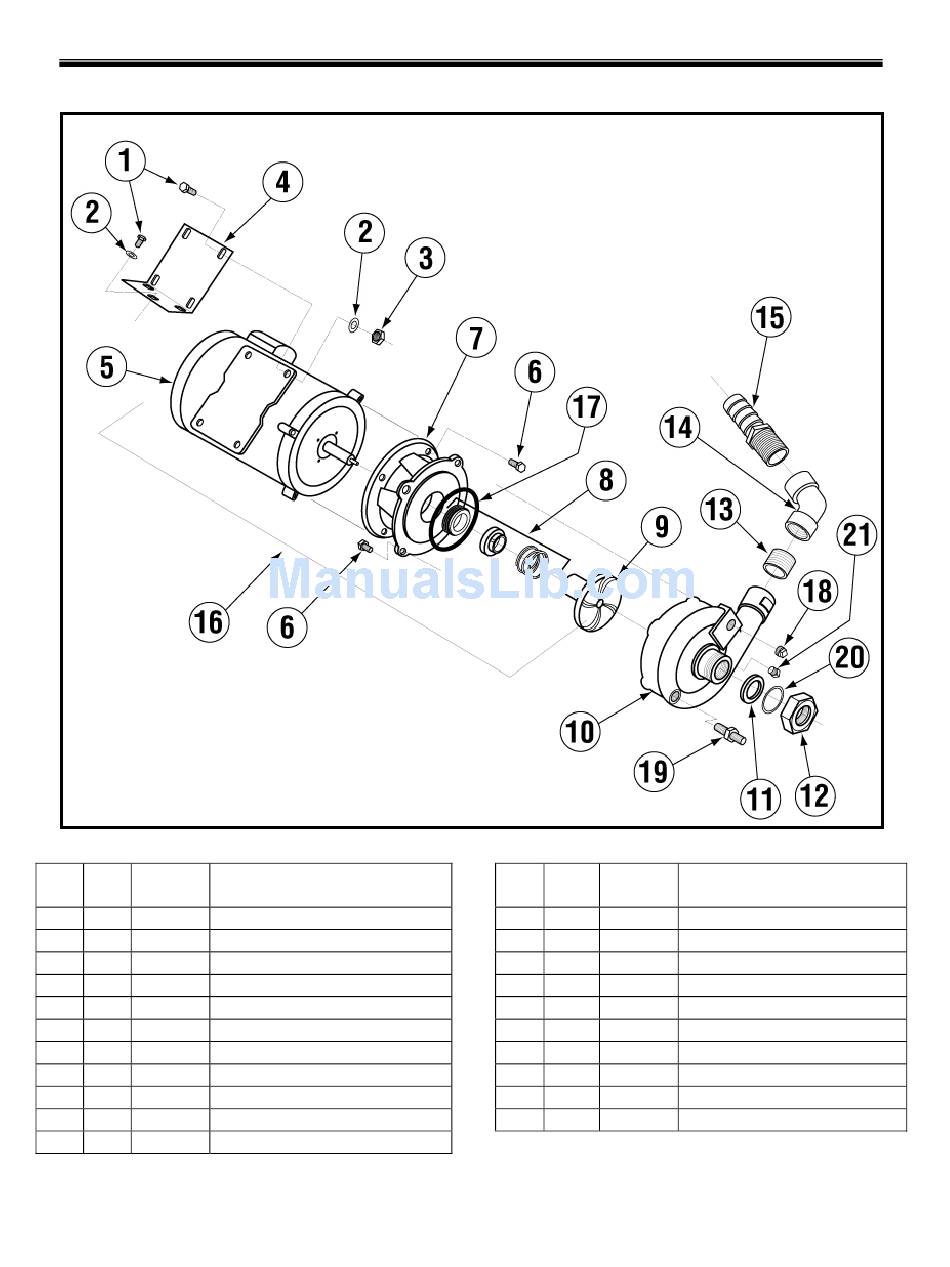

1.3.6. Pump Assembly

ITEM NO.
P/N
NO. REQ'D
1 7 00908.00 5/16"-18 x 5/8" SS Hexhead Bolt
2 7 00926.00 5/16" SS Washer
3 4 13805.00 5/16"-18 Nylon Lock Nut
4 1 04909.00 Motor Mount
5 1 00201.00 Water Pump Motor 1 HP
6 8 00921.00 3/8"-16 x 3/4" Hex Bolt
7 1 03224.00 Pump Base (Mount)
8 1 00206.00 Pump Seal Kit
9 1 03222.05 Impeller (universal) open
10 1 04206.30 Pump cover for L-1X/L-1X16
11 1 00208.00 Slip Joint Nut Gasket
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16
DESCRIPTION
Parts Manual
ITEM NO.
P/N
NO. REQ'D
12 1 04204.00
13 1 14004.00
14 1 04601.00
15 1 50302.06
16 1 00200.10
17 1 03226.00
18 1 00238.00
19 1 00214.50
20 1 00208.20
21 1 03232.00
DESCRIPTION
Compression Nut 2.5"
1" close Nipple SS
45 Degree Elbow FIP x FIP
1" MIP x 1" Barb PVC
Includes Items 5, 6, 7, 8 and 9
Pump "O" Ring Gasket
3/8" Male Plug
1/2" Comp x 3/8" MIP Adapter
Slip Joint Nut Friction Ring
1/8" Male Plug
10
