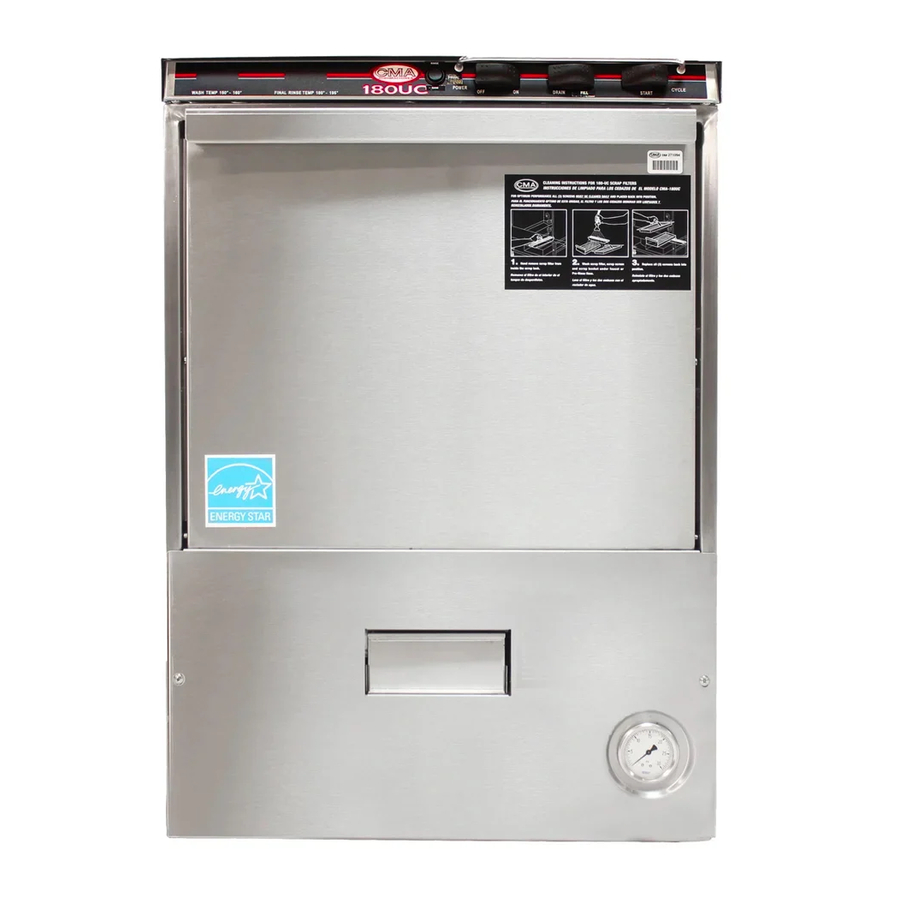

MODEL CMA-180UC
PARTS MANUAL
Rev 1.18
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1
wwwcmadishmachines.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMA-180UC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CMA Dishmachines CMA-180UC

  • Page 1 MODEL CMA-180UC PARTS MANUAL Rev 1.18 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841...
  • Page 2: Table Of Contents

    ABLE OF ONTENTS CMA-180UC ODEL 1. PARTS MANUAL..................3 1.1. (P/N 1100.66)..................3 NITIAL ARTS 1.2........................... 4 RAIN 1.3.................. 5 RAIN EMOVAL NSTRUCTIONS 1.4......................6 ECHANICAL RAWINGS 1.4.1. Cabinet Assembly......................6 1.4.2. Door Assembly....................... 7 1.4.3. Electrical Tray....................... 8 1.4.4.
  • Page 3: Parts Manual

    1/2” Water Solenoid Repair Kit – J/E 04103.00 L1X/L1-C Drain Valve 120V 00206.00 Pump Seal Kit 13417.89 Heater Thermostat 17523.60 High Limit Switch 200°F 00411.00 Microswitch 00738.15 3/4” Water Solenoid Valve Coil – J/E Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 4: Drain Pump

    Parts Manual 1.2. Drain Pump ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 15503.00 Drain Motor Ultra Jet for CMA-180UC 03101.00 Hose Clamp 1” 00432.50 Twist Tie 15603.00 Drain Line Gooseneck 15601.10 Black Drain Hose 1" ID X 3 1/2" 03801.10 10-32 SS Nut 15601.50...
  • Page 5: Drain Pump Removal Instructions

    Remove this hose clamp over Drain Valve. Remove drain hose from the drain gooseneck Disconnect 3- inch pump inlet drain hose. Figure 1 Figure Figure 2 Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 6: Mechanical Drawings

    Gasket Bracket for CMA-180UC 14561.00 Scrap Trap Filter (CMA 180-UC) 00940.50 10-32 x 3/8 Trusshead Screw 03415.00 Chemical Bulk Head 00941.00 10-32 x 5/8 Panhead Screw * For the machines with chemical dispenser Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 7: Door Assembly

    Door Hinge R.H. for CMA-180UC 00605.20 Door Rod Spacer 14570.50 Door Hinge L.H. for CMA-180UC 04517.15 Door Stop (Parallel) 04919.00 Door Rod Screw Pin for CMA-180UC 00912.00 1/4”-20 Nylon Lock Nut 04918.60 Door Support Rod Right 00924.00 1/4” SS Washer 04919.50 Door Support Rod Left 00914.10...
  • Page 8: Electrical Tray

    15504.50 Heater Contactor, 2-Pole 35 Amp 00401.85 3/4” Conduit Connector, Straight 15520.50 Power Block, 3-Position 00400.85 3/4” Conduit, Sealtite 00438.00 Snap Bushing, Universal 13304.61 HT Plumbing Bracket 01001.00 6-32 x 1” Panhead Screw Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 9: Control Panel

    8-32 PM Nut 15523.50 Rocker Switch Drain/Fill DPDT/Mom. 03705.82 Sponge Strip 15524.00 Rocker Switch Power Maintained 03202.66 Thermocouple 13426.50 Ground Block 00971.10 4-40 Nylon Lock Nut 00438.00 Snap Bushing, Universal *Kit includes 2 of #03202.66 Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 10: Chemical Dispenser (Optional)

    4-40 X 5/8 Pan Head Screw 00821.00 GL-C/GW-100 Transformer 00820.50 Circuit Board Stand-off Bushing 00820.20 Circuit Board Connector 00971.10 4-40 Nylon Lock Nut 00820.00 GL-C/GW-100 Peri Pump Circuit Board 14508.00 UC180 Peri Pump Box Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 11: Plumbing System Assembly

    Pressure Gauge for CMA-180UC 00743.10 1/2" T,FxFxF 41015.60 Water Solenoid Coil Only 05007.60 Vacuum Breaker Line 13658.00 Inlet Check Valve 03624.00 1/2” Vacuum Breaker – Watts * For the machines with chemical dispenser Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 12: Drain System Assembly

    04103.00 L1X/L1-C Drain Valve 120V 04106.00 1” 90° Barb x Barb Elbow 03101.00 Hose Clamp #16-1” 15601.10 Black Drain Hose 1" ID X 3 1/2" 15601.60 Hose 1” ID 14” Pump to Manifold Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 13: Wash System

    Parts Manual 1.4.8. Wash System ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 00304.45 Wash Arm 04305.17 Red Silicon Gasket 1/16” Thick 00308.20 Wash Arm End Plug Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 14: Rinse System

    Parts Manual 1.4.9. Rinse System ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 00304.65 Rinse Arm CMA-180UC 04305.17 Red Silicon Gasket 1/16” Thick 13304.55 SS Final Rinse Spray Jet – HT 00308.17 Rinse Arm End Cap Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 15: S/S Pump Assembly (Effective August 2009)

    Shaft Nut Lock Washer 8mm 00206.70 SS Pump Seal Kit 13809.70 SS Pump Seal Shaft Nut 8mm 03222.70 SS Pump Impeller 00914.70 Socket Head Screw 10 mm 04604.00 ^35 Deg Elbow MIP X Barb Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 16: Pump System Assembly

    1” Hose Clamp #16 00921.00 3/8”-16 x 3/4” Hex Bolt 03108.61 Transfer Hose 1" Reinforced 22" 03224.00 Pump Base (Mount) 03226.00 Pump “O” Ring Gasket 00206.00 Pump Seal Kit 00238.00 3/8” Male Plug 03222.05 Impeller L-1M Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 17: Old Heater Assembly (Square Flange)

    13417.89 Heater Thermostat 40116.00 1/4” Compression x 1/4” MIP FTG 00965.00 6-32 Lock Nut 17523.60 High Limit Switch 200°F 15517.10 Heater Gasket 17524.00 High Limit Switch Spacer 13805.00 5/16”-18 Nylon Insert Lock Nut Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 18: New Heater Assembly (Triangular Flange)

    40116.00 1/4” Compression x 1/4” MIP FTG 17523.60 High Limit Switch 200°F 00965.00 6-32 Lock Nut 15518.10 Gasket for Triangular Flange Heater 17524.00 High Limit Switch Spacer 13805.00 5/16”-18 Nylon Insert Lock Nut Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
  • Page 19: Drain Valve

    04103.12 Drain Valve Housing 00941.00 #10-32 x 5/8” Pan Head Screw 04103.24 Drain Valve Housing Spacer 04103.16 Hinge/Seal 04103.15 Drain Housing Gasket 04103.13 Drain Valve Housing Cover 04103.18 #8 x 5/8” Self-Threading Screw Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18...
