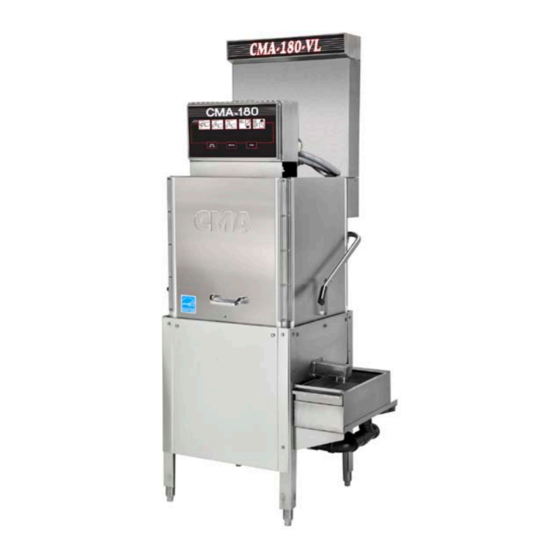

MODELS CMA-180 VL
PARTS MANUAL
Rev 2.00A
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1
www.cmadishmachines.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMA-180 VL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CMA Dishmachines CMA-180 VL

Summary of Contents for CMA Dishmachines CMA-180 VL

  • Page 1 MODELS CMA-180 VL PARTS MANUAL Rev 2.00A C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS CMA-180 VL ODEL 1. PARTS MANUAL ..................3 1.1......................3 XPLODED RAWINGS 1.1.1 Straight Frame System Assembly ....................3 1.1.2 Heat Recovery System......................4 1.1.3 Drain System Assembly ......................5 1.1.4 Plumbing System Assembly ..................... 6 1.1.5...

  • Page 3: Model Cma-180 Vl

    Scrap Body SS 17506.60 Door Panel Splash Guard 01579.20 Scrap Trap Drawer 17506.62 180 Splash Shield - lever side 17579.00 Scrap Trap Holder 17546.00 CMA-180VL Skirt 17511.00 Overflow 00449.50 Keyless Lock Model CMA-180 VL Parts Manual Rev. 2.00A page 3...

  • Page 4: Heat Recovery System

    UC 50e Stainless Steel Rinse Nozzle 17598.00 CMA-180 Ventless Support L.H. 03107.51 Flexible Black Hose 3/8” 17597.00 CMA-180 Ventless Support R.H. 03107.00 Flexible Black Hose ½” 40014.00 1/2m x 1/2 Barb Straight 17594.00 CMA-180 Ventless Shroud Model CMA-180 VL Parts Manual Rev. 2.00A page 4...

  • Page 5: Drain System Assembly

    ¼-20 Nylon Lock Nut 01320.17 2” PVC Tee SxSxS 17580.00 Drain Lever 05030.10 2” x 3” PVC Tubing 00910.00 ¼”-20 x 1 ½” Hex Head Bolt 01315.17 2” No Hub * #00121.17 includes #00121.18 Model CMA-180 VL Parts Manual Rev. 2.00A page 5...

  • Page 6: Plumbing System Assembly

    03603.20 Water Sol Valve Bonnet ½” 13605.45 Pressure Gauge 180-UC 00786.00 Water Sol Plunger ½” & ¾” w/spring 03202.00 Thermometer Capillary 00707.00 Water Sol Repair Kit JE ½” 17534.50 Gauge Bracket Model CMA-180 VL Parts Manual Rev. 2.00A page 6...

  • Page 7: Wash Spray System

    1” Comp. Fit.x1”MIP SS 00924.00 SS Washer ¼” 00759.17 Base Quick Release W/Nipple 00341.00 Spray Arm Bearing **P/N 00361.10 Includes Items 11,12 & 6 *P/N 00360.24 Includes Items 11, 12 & 6 Model CMA-180 VL Parts Manual Rev. 2.00A page 7...

  • Page 8: Final Rinse System Assembly

    13607.10 3/8 Compression Fitting Nut (Plated) 13669.45 13642.00 1/2" Male Plug Brass Mixing Chamber SS CMA 180UC 03232.00 1/8 Male Plug 4305.17 Red Silicone Gasket (CMA-180) 13629.00 ½” S.S. Close Nipple Model CMA-180 VL Parts Manual Rev. 2.00A page 8...

  • Page 9: Door Handle Assembly

    Door Handle Spacer (Large) 00606.00 5/16”-18 x 7” Eyebolt 00607.04 Door Handle Grip 00913.00 5/16”-18” Nut 01555.50 Left Door Handle Support 00926.00 5/16” SS Washer 00903.00 ¼”-20 x 1 ¾” Hex Screw Model CMA-180 VL Parts Manual Rev. 2.00A page 9...

  • Page 10: Pump System Assembly

    ¼”-20 Nylon Lock Nut 03226.00 Pump “O” Ring 00238.00 3/8” Male Plug 03222.05 Impeller Assy. 00200.10 Pump Assy 04206.00 Pump Cover 00208.20 Slip Joint Nut Friction Ring *P/N 00200.10 Includes Items 1,2,3,4,5 and 6 Model CMA-180 VL Parts Manual Rev. 2.00A page 10...

  • Page 11: Wash Tank Heater (Triangular Flange)

    Heater 6kW 220V Triangular Flange 13417.92 Heater Thermostat 13463.14 Liquid Level Switch 13463.51 Liquid Level Switch Shield 17523.51 Hi-Limit Switch - Wash 250 Degrees 13477.20 7/8” Probe Hole Plug 15518.10 Gasket for Triangular Flange Heater Model CMA-180 VL Parts Manual Rev. 2.00A page 11...

  • Page 12: Booster Tank Heater (Triangular Flange)

    Washer SS 5/16” 13422.71 240V 12KW Triangular Immersion Htr 13417.92 Thermostat 12KW Heater 17523.51 Hi-Limit Switch-Booster 250 degrees 17520.00 Booster Heater Shield* 15518.10 Gasket for Triangular Flange Heater 17560.00 Complete Assembly Model CMA-180 VL Parts Manual Rev. 2.00A page 12...

  • Page 13: Control Box Assembly

    85 Amp Terminal Block-Natural 13426.50 Ground Block 17400.08 30 Amp Terminal Block-Blue 00421.78 Illuminated Plug * Includes timer motor p/n 501.17 and microswitch p/n 411.00 ** Only for the machines with booster heater Model CMA-180 VL Parts Manual Rev. 2.00A page 13...

  • Page 14: Heat Recovery System Control Box

    Ice Cube Relay 220V 12 Amp 00940.50 10-32 X 3/8 Truss Head Screw 0013805 5/16-18 Nylon Insert Lock Nut 00926.00 5/16 SS Washer 00907.00 6-32 X 1/2 SS Panhead Screw 00965.00 6-32 Nylon Insert Lock Nut Model CMA-180 VL Parts Manual Rev. 2.00A page 14...
