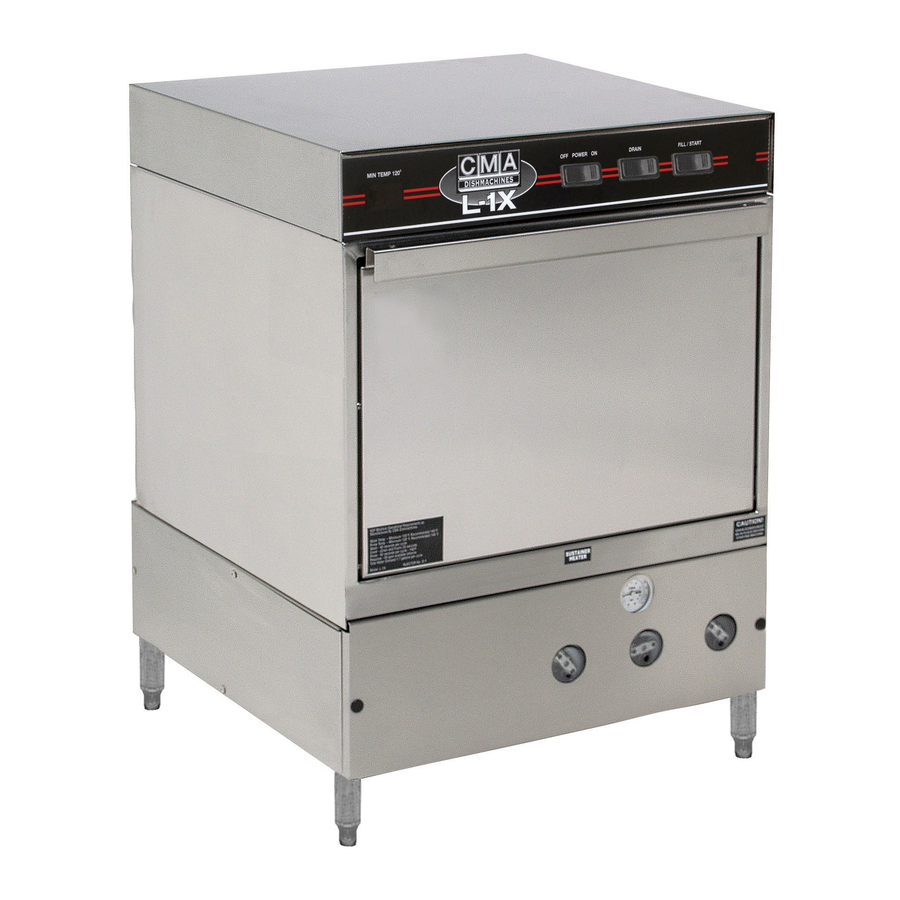

MODEL L-1X & L-1X16
PARTS MANUAL
Rev 1.16
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMA-L-1X and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines CMA-L-1X

Summary of Contents for CMA Dishmachines CMA-L-1X

  • Page 1 MODEL L-1X & L-1X16 PARTS MANUAL Rev 1.16 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841 8 0 0 - 8 5 4 - 6 4 1 7 F A X 7 1 4 - 8 9 5 - 2 1 4 1...

  • Page 2: Table Of Contents

    Plumbing System Assembly... 9 1.3.8. Drain System Assembly... 9 1.3.9. Control Box ... 9 1.3.10. Control Box (Effective 06/2007) ... 9 1.3.11. Peristaltic Pump Assembly ... 9 1.3.12. Drain Valve ... 9 ABLE OF ONTENTS CMA-L-1X & L-1X16 ODEL ... 4 ... 5...

  • Page 3: Parts Manual

    04517.15 Door Stop (Parallel) NOTE: CMA recommends that the initial parts kit be kept on hand as a back up supply of critical parts in the event your machine should require emergency service. All the parts included in this kit are unique to the L-1X and L-1X16 dishmachine.

  • Page 4: Exploded View

    1.2. Optional Sani Alarm ITEM REQ’D 00400.00 Conduit, 3/8” Sealtite 00401.00 S.T. 3/8” Straight Connector 00402.00 S.T. 90 Degree 3/8” Connector 00406.00 Control Box Light, .5” Diameter, Red 00435.00 Squeeze Tube, 8” 00521.00 Wire, 18 Gauge, Orange, 6 ft. 00531.00 Wire, 18 Gauge, White, 6 ft.

  • Page 5: Exploded View Drawings

    1.3. Exploded View Drawings 1.3.1. Cabinet Assembly ITEM DESCRIPTION REQ’D 04903.60 EZ top 03420.00 Undercounter Bell Box 03423.00 Undercounter Bell Box Cover 04109.10 Sump Heater (Optional) 04901.60 Stainless Steel Body 04901.73 Stainless Steel Body L-1X16 04911.60 Tray Track (RH) 04902.82 Stand “Open Style”...

  • Page 6: Cabinet Assembly (Effective 06/2007)

    1.3.2. Cabinet Assembly (Effective 06/2007) ITEM DESCRIPTION REQ’D 04903.60 EZ top 03420.00 Undercounter Bell Box 03423.00 Undercounter Bell Box Cover 04109.10 Sump Heater (Optional) 04901.60 Stainless Steel Body 04901.73 Stainless Steel Body L-1X16 04911.60 Tray Track (RH) 04902.82 Stand “Open Style” L-1X 04902.73 Stand “Open Style”...

  • Page 7: L-1X Door Assembly (Old Style)

    1.3.3. L-1X Door Assembly (Old Style) ITEM DESCRIPTION REQ’D 04906.90 Inner & Outer Panel Assy. 00605.30 Door Rod Spacer 00557.60 Reed Switch Magnet 13805.00 5/6” 18 Lock Nut 00926.00 5/15” SS Washer 04517.15 Door Stop (Silicone) Parallel 04918.10 Door Support Rod Angled 04916.00 Door Clevis 13825.00...

  • Page 8: L-1X/L-1X16 Door Assembly

    1.3.4. L-1X/L-1X16 Door Assembly ITEM DESCRIPTION REQ’D 04907.90 Door (New 7-2002) 14506.00 Door for L-1X16 04517.60 Door Support Rod Block 14570.00 Door Hinge (RH) 14570.50 Door Hinge (LR) 04919.00 Door Rod Screw Pin for Door 04918.60 Door Support Rod Right 04919.50 Door Support Rod Left 00557.80...

  • Page 9: Spray System Assembly

    1.3.5. Spray System Assembly ITEM REQ’D MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 DESCRIPTION 00912.00 1/4"-20 Nylon Lock Nut 00924.00 1/4" SS Washer 00929.00 1/4"-20 x 3/4" Truss Head Bolt 04306.00 Square Manifold Gasket 04305.10 Silicon Gasket 04303.00 L-1X Spray Arm Bearing 00304.03 Spray Arm 00308.50...

  • Page 10: Pump Assembly

    1.3.6. Pump Assembly ITEM DESCRIPTION REQ’D 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 00926.00 5/16” SS Washer 13805.00 5/16”-18 Nylon Lock Nut 04909.00 Motor Mount 00201.00 Water Pump Motor 1 HP 00921.00 3/8”-16 x 3/4" Hex Bolt 03224.00 Pump Base (Mount) 00206.00 Pump Seal Kit 03222.05...

  • Page 11: Plumbing System Assembly

    1.3.7. Plumbing System Assembly ITEM DESCRIPTION REQ’D 03623.00 1/2" Vac. Brkr Repair Kit – WATTS 03624.00 1/2" Vacuum Breaker – WATTS 00721.00 1/2" Jamb Nut 03614.00 1/2" Brass (Close) Nipple 00748.50 1/2" Shrub Head 04605.00 L-1X “U” Tube 04605.60 L-1X 16“U” Tube 00715.00 Ball Check Valve 00798.00...

  • Page 12: Drain System Assembly

    1.3.8. Drain System Assembly ITEM REQ’D MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 DESCRIPTION 04105.00 Pump Hose 6.5” 03101.00 1” Hose Clamp #16 04103.00 L-1X Drain Valve (Depend-O-Drain) 03108.51 1” Goose Neck Drain Hose 03109.00 Drain Hose 90DEG 1" 04110.00 L-1X Drain Screen SS 50302.06...

  • Page 13: Control Box

    1.3.9. Control Box ITEM DESCRIPTION REQ’D 04904.60 Top Drawer 00408.80 Timer 2 Minute 8 Cam 00411.00 Micro switch 00501.00 Timer Motor 03408.50 Counter (Panel Mount – Small) 04415.00 Wire Harness (L-1X) 00404.82 Contactor Relay 00433.10 Master Switch 00475.30 Toggle Switch DPDT 16A, 2 pos 03470.00 Toggle Switch (Momentary) 03406.64...

  • Page 14: Control Box (Effective 06/2007)

    1.3.10. Control Box (Effective 06/2007) ITEM DESCRIPTION REQ’D 04904.60 Top Drawer 00411.00 Micro switch 00408.80 Timer 2 Minute 8 Cam 00501.00 Timer Motor 00965.00 6-32 Nylon Insert Lock Nut 1 (2*) 00631.00 Ice Cube Relay 00470.10 Rubber Boot 15520.00 Power Block 12 Position 13826.10 4-40 X 3/4"...

  • Page 15: Peristaltic Pump Assembly

    1.3.11. Peristaltic Pump Assembly ITEM DESCRIPTION REQ’D 00416.00 Peristaltic Pump Motor 00417.00 Peristaltic Pump Block 00919.00 10-32 x 1 1/2" Pan Head Screw 00918.00 10-32 x 1 1/2" Fillister HD Screw 00932.00 Twist Tye 00418.00 Peristaltic Pump Block Cover 00911.00 8-32 x 1/2"...

  • Page 16: Drain Valve

    1.3.12. Drain Valve ITEM REQ’D MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 DESCRIPTION 04103.21 L-1X Drain Motor 115V, 60Hz 04103.14 L-1X Drain Valve Spring 04103.20 L-1X Drain Valve Drive Pin 04103.19 L-1X Drain Valve Washer (Thin) 04103.17 L-1X Drain Seal Washer (Black) 04103.23 Drain Seal Washer (White) 04103.12...
