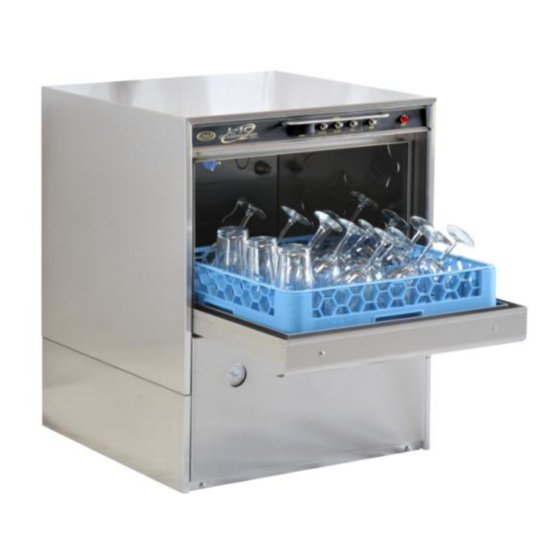

MODEL L-1C
PARTS MANUAL
Rev 1.00
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1
www.cmadishmachines.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-1C and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines L-1C

Summary of Contents for CMA Dishmachines L-1C

  • Page 1 MODEL L-1C PARTS MANUAL Rev 1.00 C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841...

  • Page 2: Table Of Contents

    PTIONAL LARM 1.3......................5 XPLODED RAWINGS 1.3.1. Cabinet Assembly ........................5 1.3.2. L-1C Door Assembly ......................6 1.3.3. Spray System Assembly ......................7 1.3.4. S/S Pump Assembly ......................... 8 1.3.5. Plumbing System Assembly ..................... 9 1.3.6. Drain System Assembly......................10 1.3.7.

  • Page 3: Parts Manual

    NOTE: CMA recommends that the initial parts kit be kept on hand as a back up supply of critical parts in the event your machine should require emergency service. All the parts included in this kit are unique to the L-1C dishmachine. Page...

  • Page 4: Optional Sani Alarm

    00435.00 Squeeze Tube, 8” 40126.10 #10 x 3/4" Sheet metal Screw 00521.00 Wire, 18 Gauge, Orange, 6 ft. 40127.00 Wall Anchors 00531.00 Wire, 18 Gauge, White, 6 ft. 00426.00 Y Hose Connector, 3/16” Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 5: Exploded View Drawings

    REQ’D 05903.00 Energy Mizer L-1C Wrapper 05933.00 Energy Mizer L-1C Feet 05901.00 Energy Mizer L-1C Body 05904.00 Energy Mizer L-1C Front Panel 00556.10 Reed Switch 00120.01 BiMetal Thermometer 5902.00 Energy Mizer L-1C Base Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 6: L-1C Door Assembly

    Energy Mizer L-1C Door Spring 00940.50 10-32 X 3/8 Truss Head Screw 556.60 Reed Switch Magnet 05912.00 Energy Mizer L-1C Door Handle 00911.00 8-32 X 1/2 Panhead Screw 05913.00 Energy Mizer L-1C Door Spring Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 7: Spray System Assembly

    05936.00 Energy Mizer L-1C Tee 1"X1"X1" 13109.00 Drain Hose 90Deg 1” 05930.00 Energy Mizer L-1C Spray Base 03108.67 Transfer Hose 1" Reinforced 2" 03108.60 Transfer Hose 1" Reinforced 00307.10 Spray Arm Assy L1X/GL-X Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 8: S/S Pump Assembly

    03224.70 SS Pump Backplate 00207.00 Slip Joint Nut 1 1/2 x 1 1/4 03226.70 Volute O-Ring For SS Pump 00238.00 3/8” Male Plug 00206.70 SS Pump Seal Kit 00200.75 Includes Items 4,5,6,7,8,9,and 11 Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 9: Plumbing System Assembly

    6-32 x 1/4" Phillips Pan Head Screw 00760.00 5/8” Comp. X 1/2" MIP Adapter 00706.10 Plunger Spring Only 04606.00 L-1X “L” Tube 00770.20 5/8 Compression Fitting Ring 04606.60 L-1X16 “L” Tube 14508.50 Plumbing Support Bracket 00915.00 1/4"-20 Hex Nut Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 10: Drain System Assembly

    03101.00 1” Hose Clamp #16 04103.00 L-1X Drain Valve (Depend-O-Drain) 03108.51 1” Goose Neck Drain Hose 03109.00 Drain Hose 90DEG 1" 04110.00 L-1X Drain Screen SS 50302.06 1” MIP x 1” Barb PVC Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 11: Control Panel

    Toggle Switch DPDT 16A, 2 pos 03801.00 10-32 Lock Nut 03476.00 Rubber Boot 04806.00 #10 Brass Washer 00406.00 Control Box Light .5" D Red 03485.00 Switch Guard 06231.73 L1C-NST Panel Label (2013) 15524.00 Power Rocker Switch Red 115V Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 12: Electrical Panel

    Counter (Panel Mount – Small) 15520.50 Power Block 3 Position 00475.30 Delimer Switch DPDT 20A,2Pos. 00907.00 6-32 X 1/2 SS Panhead Screw 00470.00 Toggle switch DPDT Momentary 05911.00 Energy Mizer L-1C Control Panel 00470.10 Rubber Boot Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 13: Peristaltic Pump Assembly

    Squeeze Tube – Orange 22” 00415.00 Complete Peristaltic Pump 00419.00 Peristaltic Rotor Assembly 03415.20 Bulk Head For Sanitizer 00423.00 Rotor Bearing 00435.62 24” Squeeze Tube 00422.00 Rotor Bearing Pin *Item 16 includes items 1-4, 6-10. Page MODEL L-1C PARTS MANUAL Rev. 1.00...

  • Page 14: Drain Valve

    Drain Seal Bearing (White Washer) 04103.13 Drain Valve Housing Cover 04113.18 Valve Cover Screw 04103.16 Drain Valve Hinge/Seal 04103.15 Drain Valve Housing Gasket 04113.12 Drain Valve Housing 04103.18 #8 X 5/8 Self Threading Screw Page MODEL L-1C PARTS MANUAL Rev. 1.00...
