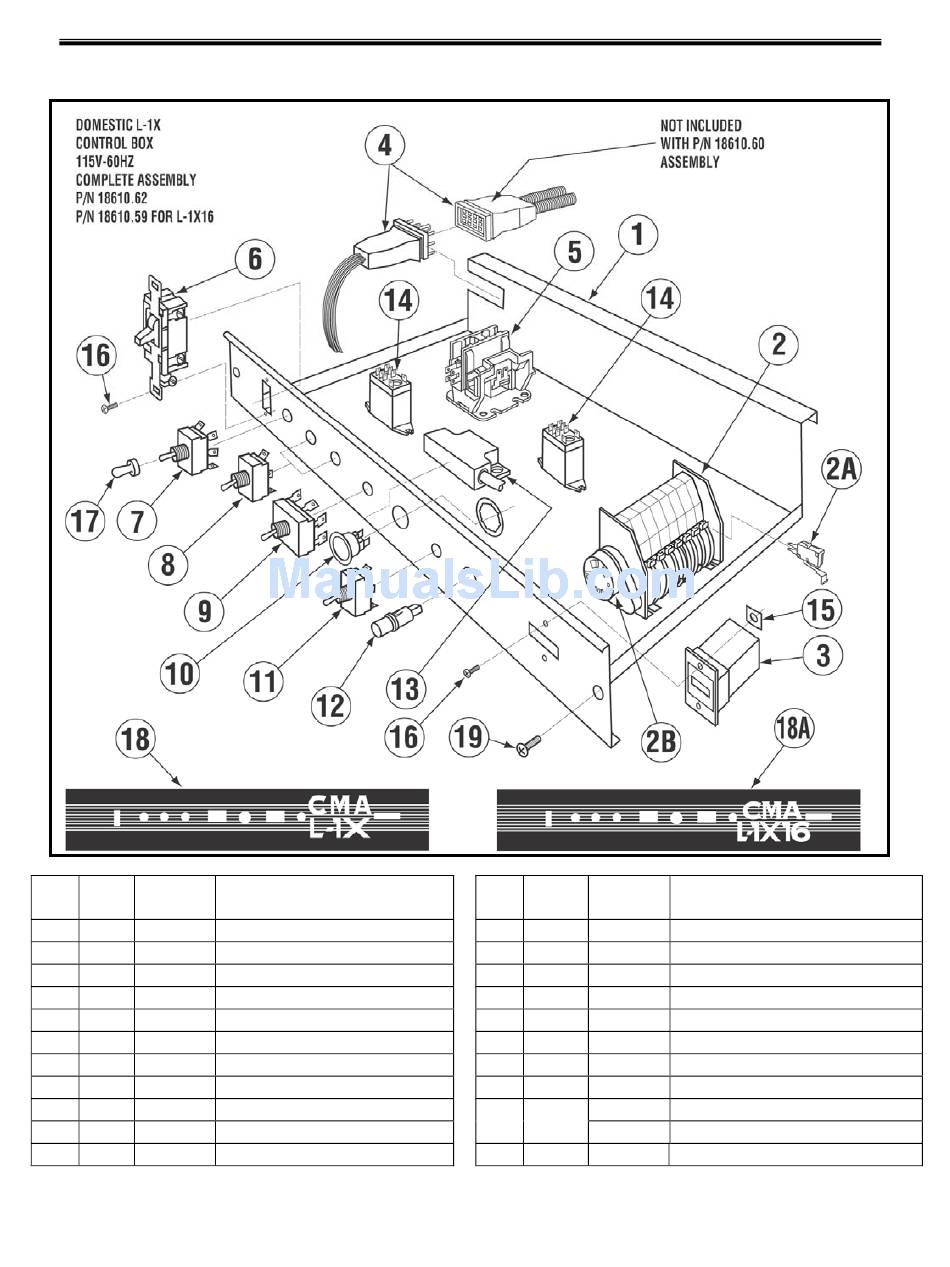

1.3.9. Control Box

ITEM NO.
P/N
NO. REQ'D
1 1 04904.60
2 1 00408.80
2A 8 00411.00
2B 1 00501.00
3 1 03408.50
4 1 04415.00
5 1 00404.82
6 1 00433.10
7 1 00475.30
8 2 03470.00
9 1 03406.64
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16
DESCRIPTION
Top Drawer
Timer 2 Minute 8 Cam
Micro switch
Timer Motor
Counter (Panel Mount – Small)
Wire Harness (L-1X)
Contactor Relay
Master Switch
Toggle Switch DPDT 16A, 2 pos
Toggle Switch (Momentary)
Drain Toggle Switch DPST
ITEM NO.
P/N
NO. REQ'D
10 1 00476.00
11 1 03470.01
12 1 00406.00
13 1 00557.55
14 1 or 2* 00631.00
15 2 00917.00
16 4 00911.00
17 4 00470.10
18 1 06231.00
18A 1
06231.02
19 2 00940.50
*Second relay present only with heater option.
Parts Manual
DESCRIPTION
Running Light 120V, Green
Toggle Switch, mom., (.25 flat term.)
Control box Light Red
Magnetic Reed Switch (NEW)
Ice Cube Relay
8-32 PM Nut
8-32 x 1/2" Pan Head Screw
Rubber Boot
L-1X Drawer Label
L-1X16 Drawer Label
10-32 x 3/8" Truss Head Screw
13
