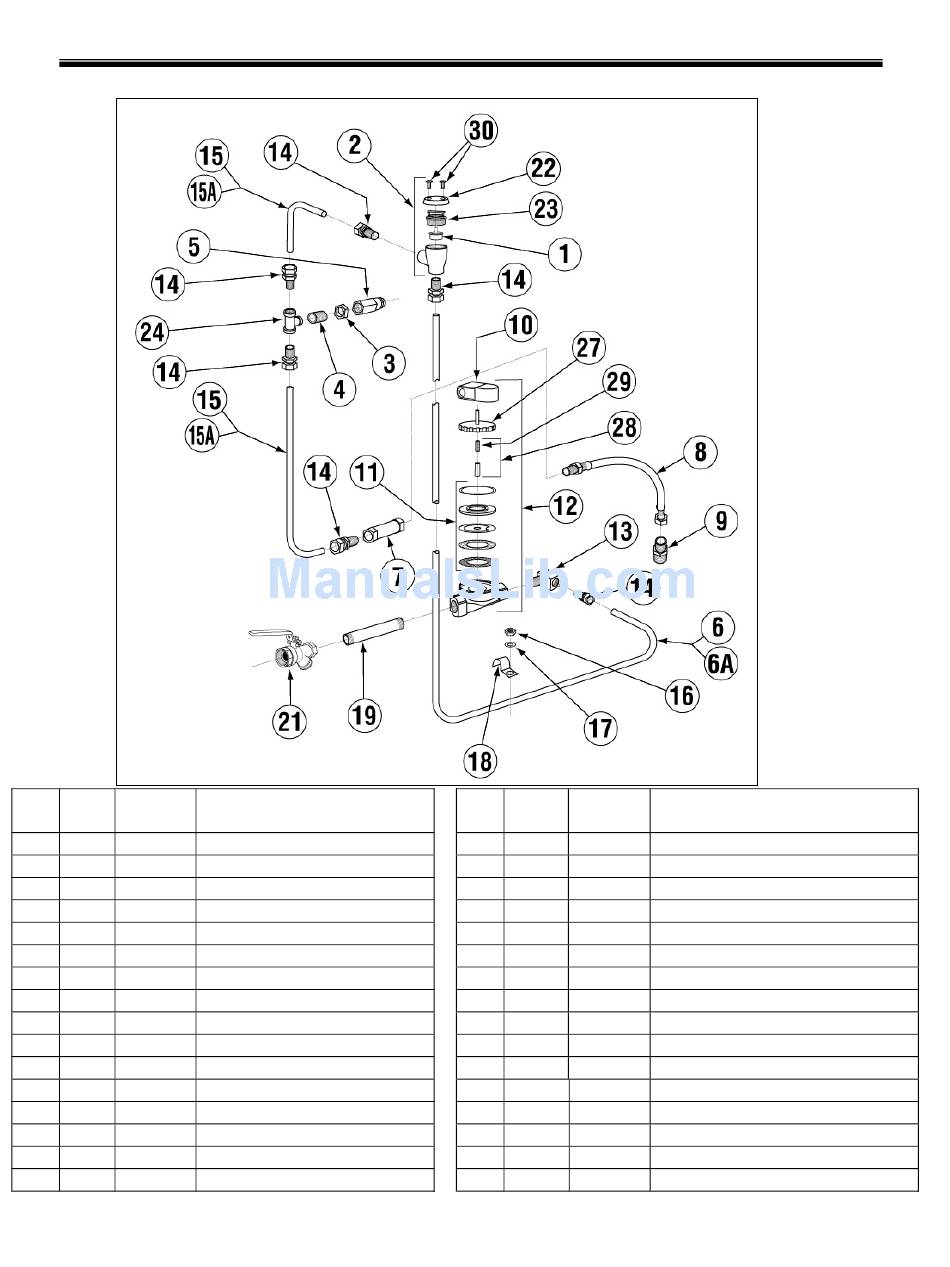

1.3.7. Plumbing System Assembly

ITEM NO.
P/N
NO. REQ'D
1 1 03623.00
2 1 03624.00
3 2 00721.00
4 1 03614.00
5 1 00748.50
6 1 04605.00
6A 1 04605.60
7 1 00715.00
8 1 00798.00
9 1 00214.50
10 4 00738.10
11 1 00707.00
12 1 03603.10
13 1 00745.00
14 6 00760.00
15 1 04606.00
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16
DESCRIPTION
1/2" Vac. Brkr Repair Kit – WATTS
1/2" Vacuum Breaker – WATTS
1/2" Jamb Nut
1/2" Brass (Close) Nipple
1/2" Shrub Head
L-1X "U" Tube
L-1X 16"U" Tube
Ball Check Valve
SS Braided Hose
1/2" Comp x 3/8" MIP FTG
Water Solenoid Coil J/E
1/2" Water Solenoid Repair Kit J/E
1/2" Water Solenoid Valve J/E
1/2" 90 Degree Street Elbow
5/8" Comp. X 1/2" MIP Adapter
L-1X "L" Tube
ITEM NO.
P/N
NO. REQ'D
15A 1 04606.60
16 1 00915.00
17 1 00924.00
18 1 00725.50
19 1 00747.10
20 1 03602.50
21 1 41061.00
22 1 00739.50
23 1 03624.25
24 1 00743.10
25 1 00742.00
26 1 00744.00
27 1 03603.20
28 1 00786.00
29 1 00706.10
30 2 00970.40
Parts Manual
DESCRIPTION
L-1X16 "L" Tube
1/4"-20 Hex Nut
1/4" SS Washer
1/2" Plumbing Strap
Nipple Brass 1/2" x 5"
1/2" Y Strainer – Optional
1/2" Ball Valve
Vacuum Breaker Cap SS
Vacuum Breaker Bonnet Brass
1/2" Tee FxFxF
Nipple Brass 1/2" x 1-1/2" (Optional)
Nipple Brass 1/2" x 2" (Optional)
1/2" Water Solenoid Bonnet
Water Solenoid Valve Plunger
Plunger Spring Only
6-32 x 1/4" Phillips Pan Head Screw
