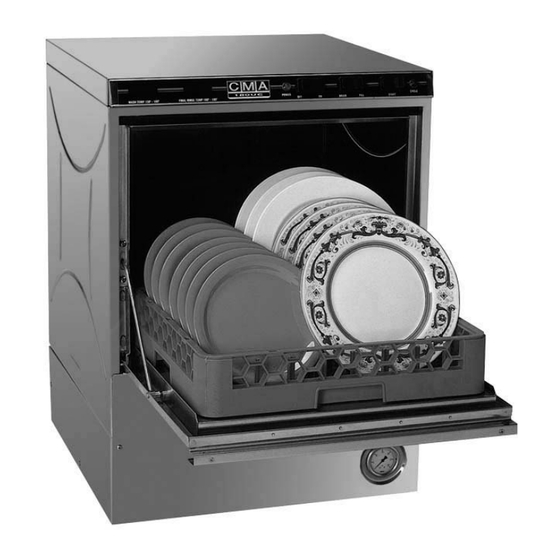

MODEL CMA-180UC
PARTS MANUAL
Rev 1.18B
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4- 8 9 5 - 2 1 4 1
wwwcmadishmachines.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMA-180UC and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines CMA-180UC

Summary of Contents for CMA Dishmachines CMA-180UC

  • Page 1 MODEL CMA-180UC PARTS MANUAL Rev 1.18B C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E GARDEN GROVE, CALIFORNIA 92841...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS CMA-180UC ODEL 1. PARTS MANUAL ..................3 1.1. (P/N 1100.66) ........E NITIAL ARTS RROR OOKMARK NOT DEFINED 1.2........................... 4 RAIN 1.3.................. 5 RAIN EMOVAL NSTRUCTIONS 1.4......................6 ECHANICAL RAWINGS 1.4.1. Cabinet Assembly......................6 1.4.2.

  • Page 3: Parts Manual

    L1X/L1-C Drain Valve 120V 00206.30 Pump Seal Kit 13417.89 Heater Thermostat 17523.60 High Limit Switch 200°F 00411.00 Microswitch 03203.01 Dual Temperature Display Kit 00707.00 1/2 Water Solenoid Repair Kit JE 00738.15 Solenoid Coil JE115V/60Hz Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 4: Drain Pump

    Parts Manual 1.2. Drain Pump ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 15503.00 Drain Motor Ultra Jet for CMA-180UC 03101.00 Hose Clamp 1” 00932.50 Twist Tie 15603.00 Drain Line Gooseneck 15601.10 Black Drain Hose 1" ID X 3 1/2" 03801.10 10-32 SS Nut 15605.00...

  • Page 5: Drain Pump Removal Instructions

    Remove this hose clamp over Drain Valve. Remove drain hose from the drain gooseneck Disconnect 3- inch pump inlet drain hose. Figure 1 Figure Figure 2 Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 6: Mechanical Drawings

    10-32 x 3/8 Trusshead Screw 14508.20 Peri Pump Back R Side Cover(180-UC) 00941.00 10-32 x 5/8 Panhead Screw 01147.50 Leg 4" 1/2-13 1" Diameter (UC) 03801.00 10-32 Lock Nut 01147.00 ^Leg 6" 1/2"-13 1" Diameter (UC) Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 7: Door Assembly

    Door Hinge R.H. for CMA-180UC 00605.20 Door Rod Spacer 14570.50 Door Hinge L.H. for CMA-180UC 04517.15 Door Stop (Parallel) 04919.00 Door Rod Screw Pin for CMA-180UC 00912.00 1/4”-20 Nylon Lock Nut 04918.60 Door Support Rod Right 00924.00 1/4” SS Washer 04919.50 Door Support Rod Left 00914.10...

  • Page 8: Electrical Tray

    15504.50 Heater Contactor, 2-Pole 35 Amp 00401.85 3/4” Conduit Connector, Straight 15520.50 Power Block, 3-Position 00400.85 3/4” Conduit, Sealtite 00438.00 Snap Bushing, Universal 13304.61 HT Plumbing Bracket 01001.00 6-32 x 1” Panhead Screw Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 9: Control Box Assembly P/N 18611.61

    4-40 Nylon Lock Nut 13426.50 Ground Block 03485.00 Switch Guard (Undercounter) 00438.00 Snap Bushing, Universal 06232.61 CMA180-UC Panel Label 01001.00 6-32 x 1” Panhead Screw *Switch covers for the switches p/n 3481 00 421 41 Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 10: Chemical Dispenser (Optional)

    4-40 X 5/8 Pan Head Screw 00821.00 GL-C/GW-100 Transformer 00820.50 Circuit Board Stand-off Bushing 00820.20 Circuit Board Connector 00971.10 4-40 Nylon Lock Nut 00820.00 GL-C/GW-100 Peri Pump Circuit Board 14508.00 UC180 Peri Pump Box Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 11: Plumbing System Assembly (Effective August 2012)

    Vacuum Breaker Line 03603.20 1/2” Water Solenoid Valve Bonnet 03624.00 1/2” Vacuum Breaker – Watts 00738.10 Solenoid Coil JE115V/60Hz 00739.50 Vacuum Breaker Cap, SS 00706.10 Solenoid JE Spring Only 03624.25 Vacuum Breaker Bonnet, Brass Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 12: Plumbing System Assembly

    1/4” Compression x 1/2” MIP FTG 13605.45 Pressure Gauge for CMA-180UC 00743.10 1/2" T,FxFxF 41015.60 Water Solenoid Coil Only 05007.60 Vacuum Breaker Line 13658.00 Inlet Check Valve 03624.00 1/2” Vacuum Breaker – Watts 41062.10 Ball Strainer Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 13: Drain System Assembly

    1.4.8. Drain System Assembly ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 04113.00 Drain Valve 120V 15601.60 Hose 1” ID 14” Pump to Manifold 03101.00 Hose Clamp #16-1” 15601.10 Black Drain Hose 1" ID X 3 1/2" Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 14: Wash System

    Parts Manual 1.4.9. Wash System ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 00304.46 Wash Arm 04305.17 Red Silicon Gasket 1/16” Thick 00308.20 Wash Arm End Plug Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 15: Rinse System

    Parts Manual 1.4.10. Rinse System ITEM ITEM DESCRIPTION DESCRIPTION REQ’D REQ’D 00304.65 Rinse Arm CMA-180UC 04305.17 Red Silicon Gasket 1/16” Thick SS Final Rinse Spray Jet – HT welded 00308.17 Rinse Arm End Cap Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 16: S/S Pump Assembly (Effective August 2009)

    03222.70 SS Pump Impeller 00208.21 Slip Joint Nut Friction Ring 04604.00 ^35 Deg Elbow MIP X Barb 03101.00 Hose Clamp # 16 1" 04206.75 SS Pump Cover 03108.62 Transfer Hose 1" Reinforce 25" Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 17: Pump System Assembly

    1” Hose Clamp #16 00921.00 3/8”-16 x 3/4” Hex Bolt 03108.62 Transfer Hose 1" Reinforce 25" 03224.00 Pump Base (Mount) 03226.00 Pump “O” Ring Gasket 00206.30 Pump Seal Kit 00238.00 3/8” Male Plug 03222.10 Impeller L-1M Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 18: Old Heater Assembly (Square Flange)

    Heater Thermostat 40116.00 1/4” Compression x 1/4” MIP FTG 17523.60 High Limit Switch 200°F 00965.00 6-32 Lock Nut 15517.10 Heater Gasket 17524.00 High Limit Switch Spacer 13805.00 5/16”-18 Nylon Insert Lock Nut *Gasket included Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 19: New Heater Assembly (Triangular Flange)

    1/4” Compression x 1/4” MIP FTG 17523.60 High Limit Switch 200°F 00965.00 6-32 Lock Nut 15518.10 Gasket for Triangular Flange Heater 17524.00 High Limit Switch Spacer 13805.00 5/16”-18 Nylon Insert Lock Nut * Gasket included Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 20: Drain Valve

    04103.12 Drain Valve Housing 00941.00 #10-32 x 5/8” Pan Head Screw 04103.24 Drain Valve Housing Spacer 04103.16 Hinge/Seal 04103.15 Drain Housing Gasket 04103.13 Drain Valve Housing Cover 04103.18 #8 x 5/8” Self-Threading Screw Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...

  • Page 21: Drain Valve (Effective January 2011)

    Drain Seal Bearing (White Washer) 04103.13 Drain Valve Housing Cover 04113.18 Valve Cover Screw 04103.16 Drain Valve Hinge/Seal 04103.15 Drain Valve Housing Gasket 04113.12 Drain Valve Housing 04103.18 #8 X 5/8 Self Threading Screw Page MODEL CMA-180UC PARTS MANUAL Rev. 1.18B...
