1.2.

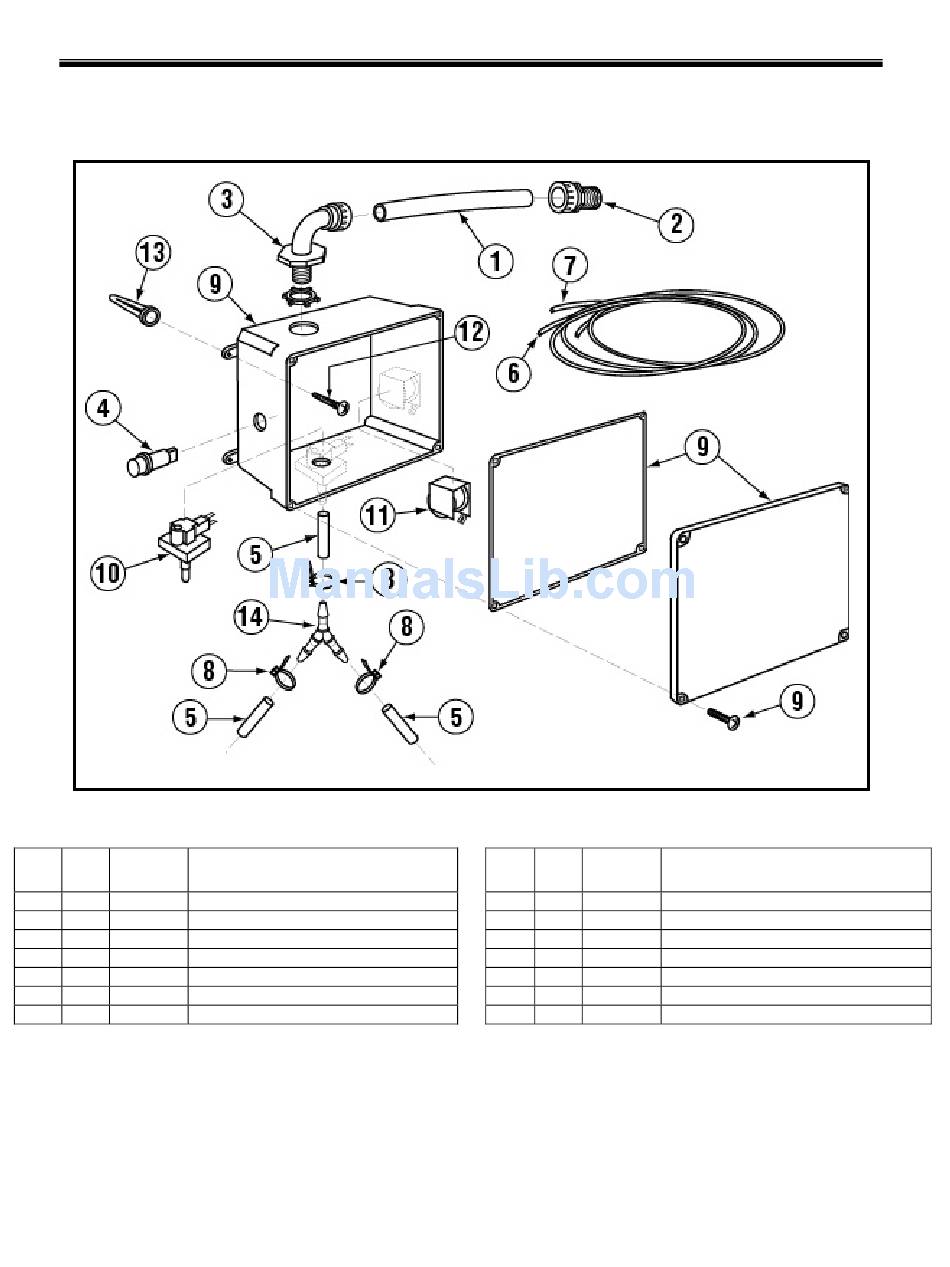

Optional Sani Alarm
ITEM
NO.
P/N
NO.
REQ'D
1
3
00400.00
Conduit, 3/8" Sealtite
2
1
00401.00
S.T. 3/8" Straight Connector
3
1
00402.00
S.T. 90 Degree 3/8" Connector
4
1
00406.00
Control Box Light, .5" Diameter, Red
5
1
00435.00
Squeeze Tube, 8"
6
1
00521.00
Wire, 18 Gauge, Orange, 6 ft.
7
1
00531.00
Wire, 18 Gauge, White, 6 ft.
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16
Part Number 12508.00
Exploded View
DESCRIPTION
Parts Manual
ITEM
NO.
P/N
NO.
REQ'D
8
5
00931.00
Wire Tie, Small
9
1
12510.00
Sanitizer Alarm Box Assembly
10
1
12511.00
Sanitizer Low Level Vacuum Switch
11
1
12512.00
Sanitizer Alarm Buzzer, 120 Volts
12
4
40126.10
#10 x 3/4" Sheet metal Screw
13
4
40127.00
Wall Anchors
14
1
00426.00
Y Hose Connector, 3/16"
DESCRIPTION
4
Page
