L-1X/L-1X16 Door Assembly - CMA Dishmachines CMA-L-1X Parts Manual

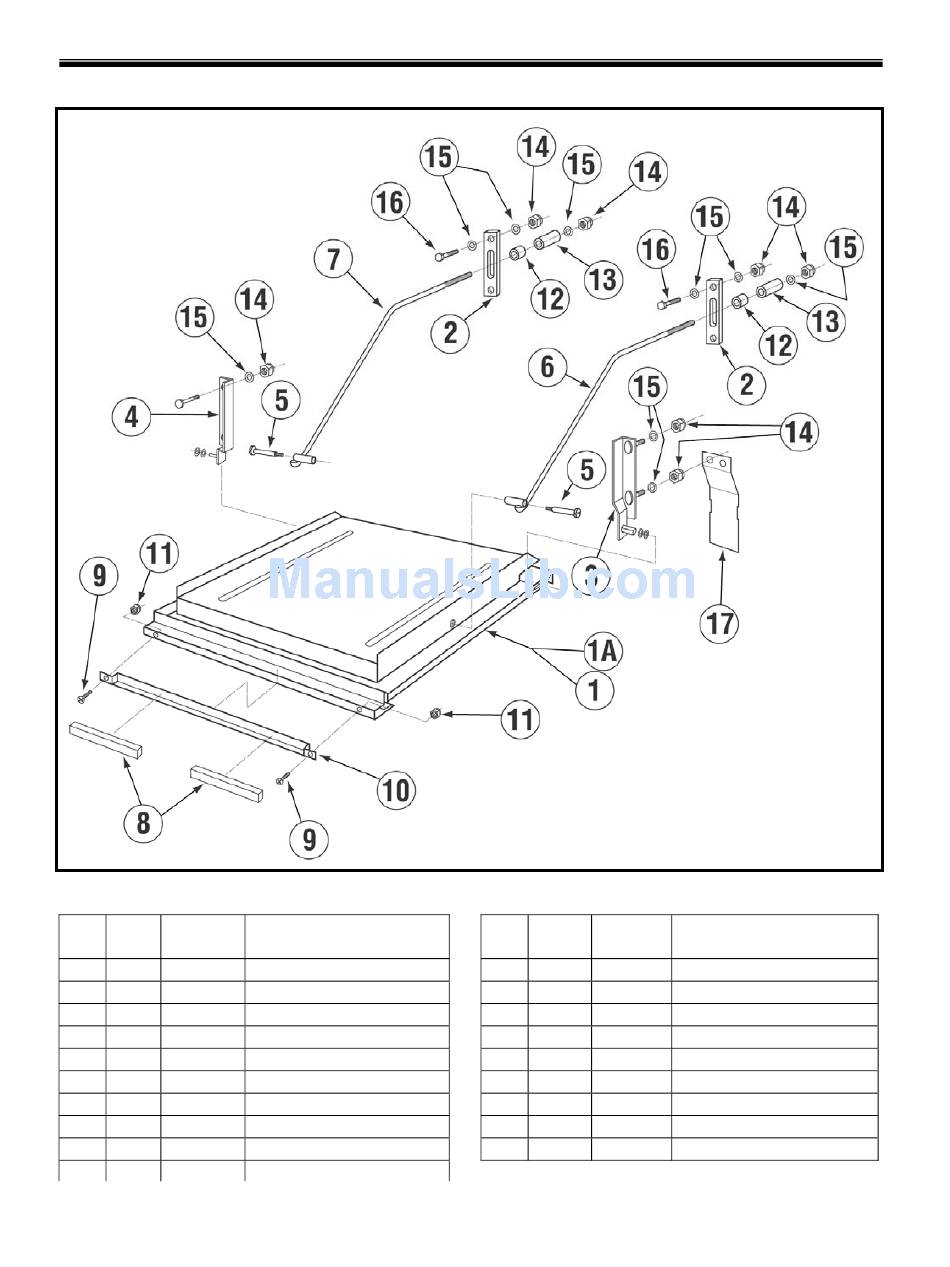

1.3.4. L-1X/L-1X16 Door Assembly

ITEM NO.
P/N
NO. REQ'D
1 1 04907.90
1A 1 14506.00
2 2 04517.60
3 1 14570.00
4 1 14570.50
5 2 04919.00
6 1 04918.60
7 1 04919.50
8 2 00557.80
9 2 00970.60
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16
DESCRIPTION
Door (New 7-2002)
Door for L-1X16
Door Support Rod Block
Door Hinge (RH)
Door Hinge (LR)
Door Rod Screw Pin for Door
Door Support Rod Right
Door Support Rod Left
Door Magnet
6 32 x 1/2" Flathead Screw
ITEM NO.
P/N
NO. REQ'D
10 1 14558.61
11 2 00965.00
12 2 00605.20
13 2 04517.15
14 10 00912.00
15 14 00924.00
16 4 00914.10
17 2 14518.00
Parts Manual
DESCRIPTION
Door Magnet Holder
06-32 Lock Nut
Door Rod Spacer
Door Stop (Parallel)
1/4"-20 Nylon Lock Nut
1/4" SS Washer
1/4"-20 x 5/8" Hex Head Bolt
Splash Guard
8
Page
