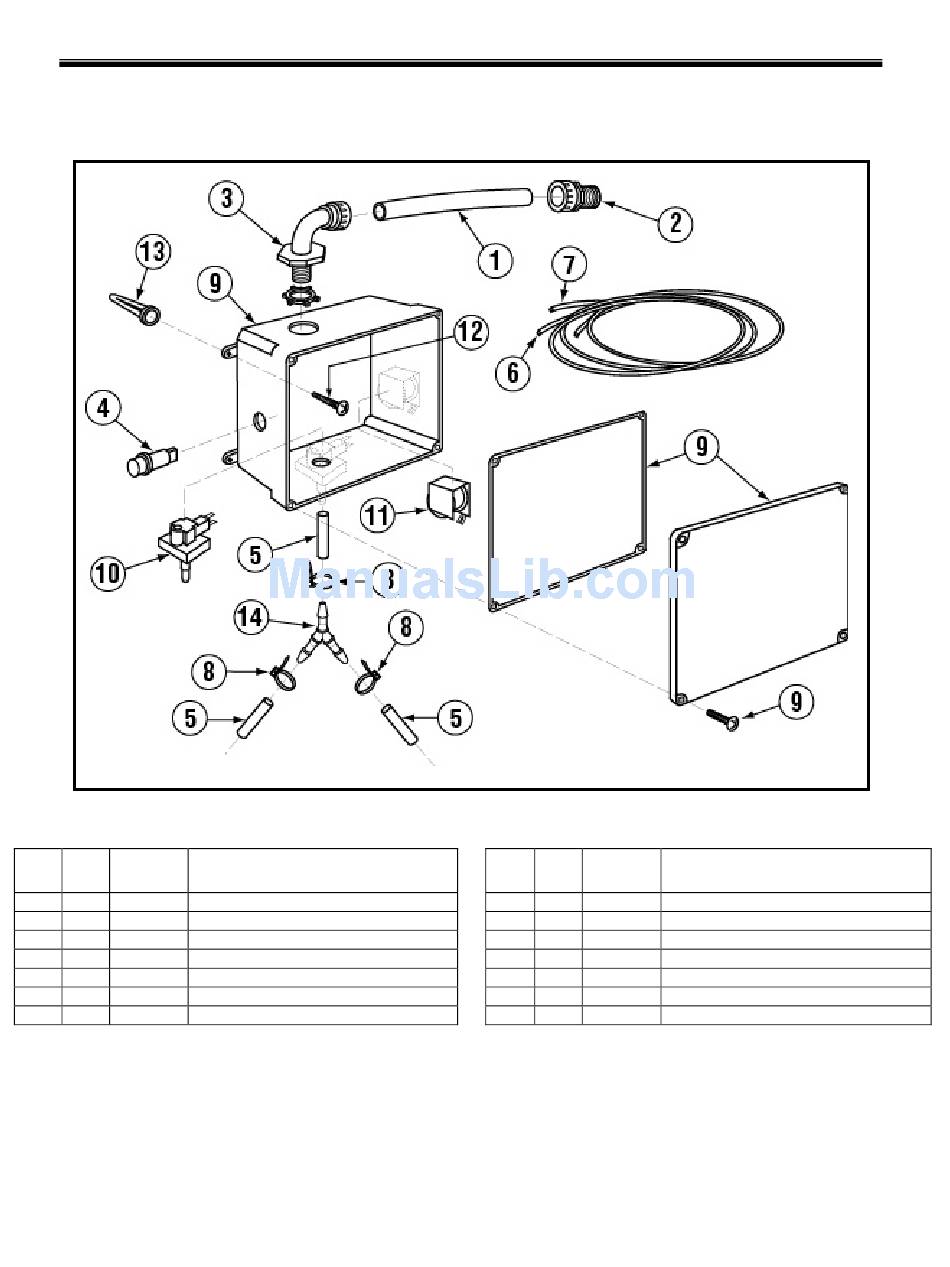

Optional Sani Alarm; Exploded View - CMA Dishmachines L-1C Parts Manual

1.2.

Optional Sani Alarm

ITEM NO.
P/N
NO. REQ'D
1 3 00400.00 Conduit, 3/8" Sealtite
2 1 00401.00 S.T. 3/8" Straight Connector
3 1 00402.00 S.T. 90 Degree 3/8" Connector
4 1 00406.00 Control Box Light, .5" Diameter, Red
5 1 00435.00 Squeeze Tube, 8"
6 AR 00521.00 Wire, 18 Gauge, Orange, 6 ft.
7 1 00531.00 Wire, 18 Gauge, White, 6 ft.
MODEL L-1C PARTS MANUAL Rev. 1.00
Part Number 12508.00

Exploded View

DESCRIPTION
Parts Manual
ITEM NO.
P/N
NO. REQ'D
8 5 00931.00 Wire Tie, Small
9 1 12510.00 Sanitizer Alarm Box Assembly
10 1 12511.50 Sanitizer Low Level Vacuum Switch
11 1 12512.00 Sanitizer Alarm Buzzer, 120 Volts
12 4 40126.10 #10 x 3/4" Sheet metal Screw
13 4 40127.00 Wall Anchors
14 1 00426.00 Y Hose Connector, 3/16"
DESCRIPTION
