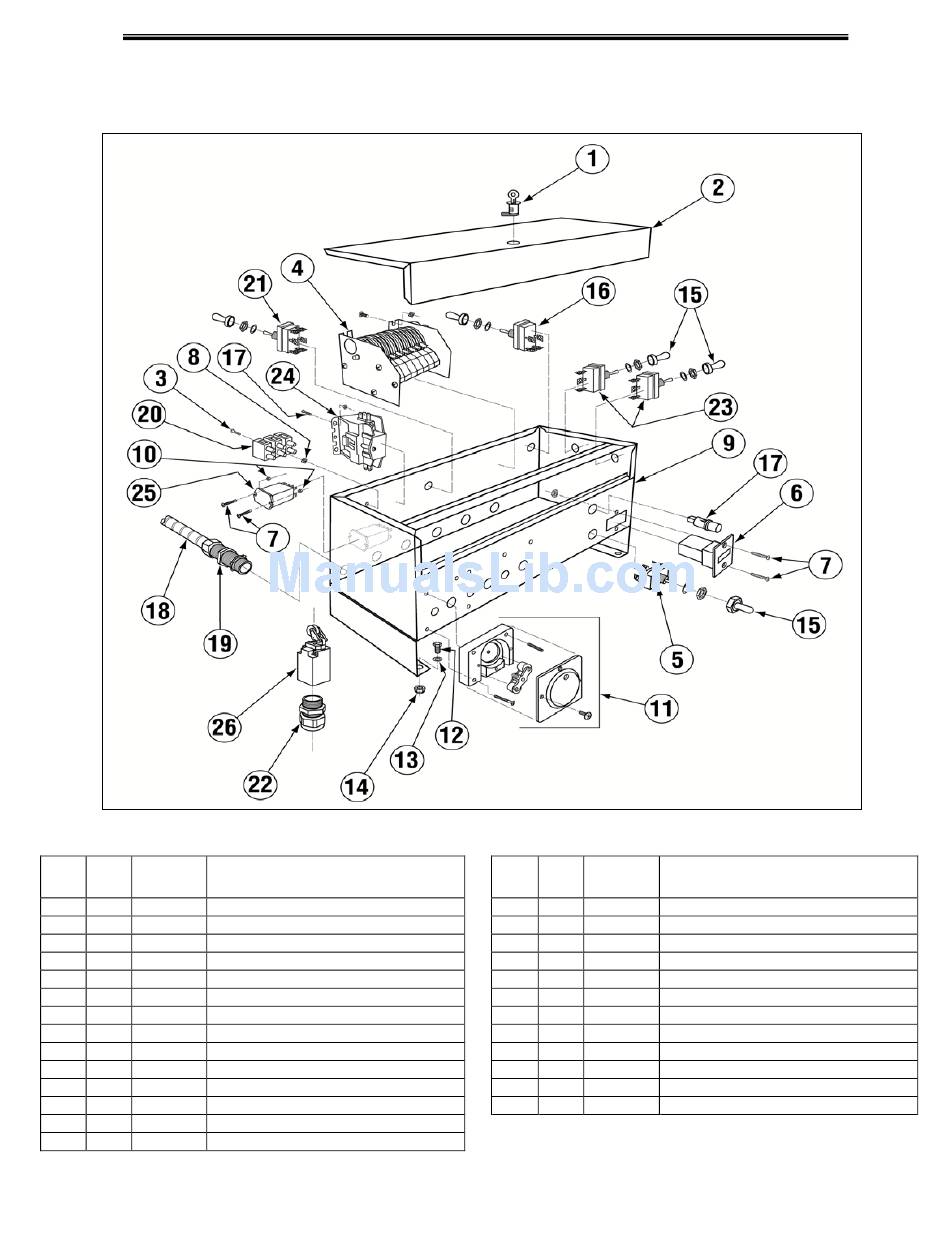

5.3.2. Control Box Assembly

Note: Wiring Harness (V)—Part Number 00414.82—(not shown).
ITEM NO.
P/N
NO. REQ'D
1 1 00449.00 Lock and Key
2 1 01504.09 Control Box Lid
3 5 00911.50 8-32 x 3/8" Pan Head Screw
4 1 00407.83 Timer, 90 Seconds
5 1 03470.01 Toggle Switch, Momentary
6 1 03408.50 Counter (Face Mount)
7 4 00907.00 6-32 x 1/2" SS Pan Head Screw
8 4 00917.00 8-32 PM Nut
9 1 01503.09 Control Box Body
10 4 00916.00 6-32 pm nut
Peristaltic Pump Assembly*
11 3 00415.00
12 4 00906.00 1/2-20 x 1/2" Hex Head Bolt
13 4 00924.00 1/4" SS Washer
14 4 00912.00 1/4-20 Nylon Lock Nut
MODEL EST SERVICE & PARTS MANUAL Rev. 1.08
DESCRIPTION
Parts Manual
ITEM NO.
P/N
NO. REQ'D
15 5 00470.10 Toggle Switch Boot
16 1 00471.10 Toggle Switch Off/On 20 Amp
17 2 00406.00 Control Box Light, 120V, 60Hz
18 1 00400.00 Conduit, 3/8" Sealtite
19 3 00401.00 S.T. 3/8" Straight Connector
20 1 00454.10 3-Pole Socket Terminal Block
21 1 00475.00 Toggle Switch, 15 Amp
22 1 00562.60 Connector, #562 Door Limit Switch
23 2 03470.00 Toggle Switch
24 1 00404.82 Contactor Relay
25 1 00631.00 Ice Cube Relay
26 1 00562.00 Door Limit Switch, Roller Action
*See section 5.3.10 Peristaltic Pump Assembly for details
DESCRIPTION
Page
15
