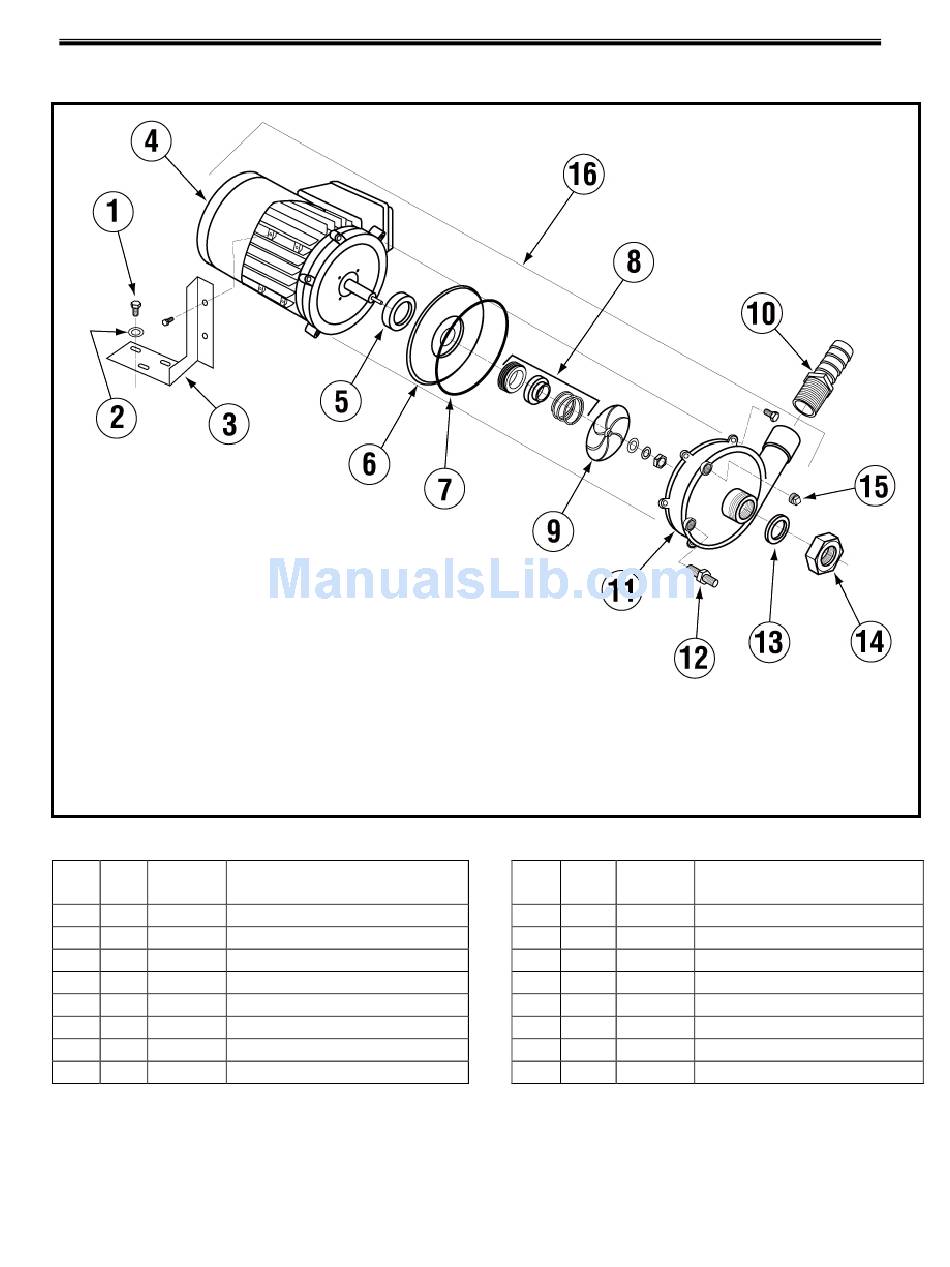

1.3.4. S/S Pump Assembly

ITEM NO.
P/N
NO. REQ'D
1 3 00908.00 5/16"-18 x 5/8" SS Hexhead Bolt
2 3 00926.00 5/16" SS Washer
3 1 00200.78 SS Pump Motor Holder "L"
4 1 00201.75 SS Wash Pump Motor 115v
5 1 03224.72 Back Plate Spacer
6 1 03224.70 SS Pump Backplate
7 1 03226.70 Volute O-Ring For SS Pump
8 1 00206.70 SS Pump Seal Kit
MODEL L-1C PARTS MANUAL Rev. 1.00
DESCRIPTION
Parts Manual
ITEM NO.
P/N
NO. REQ'D
9 1 03222.70
10 1 50302.10
11 1 04206.75
12 1 00214.50
13 1 00208.40
14 1 00207.00
15 1 00238.00
16 1 00200.75
DESCRIPTION
SS Pump Impeller
1" MPT x 1" Barb Brass
SS Pump Cover
1/2" Comp x 3/8" MIP Adapter
Slip Joint Nut O Ring Buna
Slip Joint Nut 1 1/2 x 1 1/4
3/8" Male Plug
Includes Items 4,5,6,7,8,9,and 11
8
