1.2.

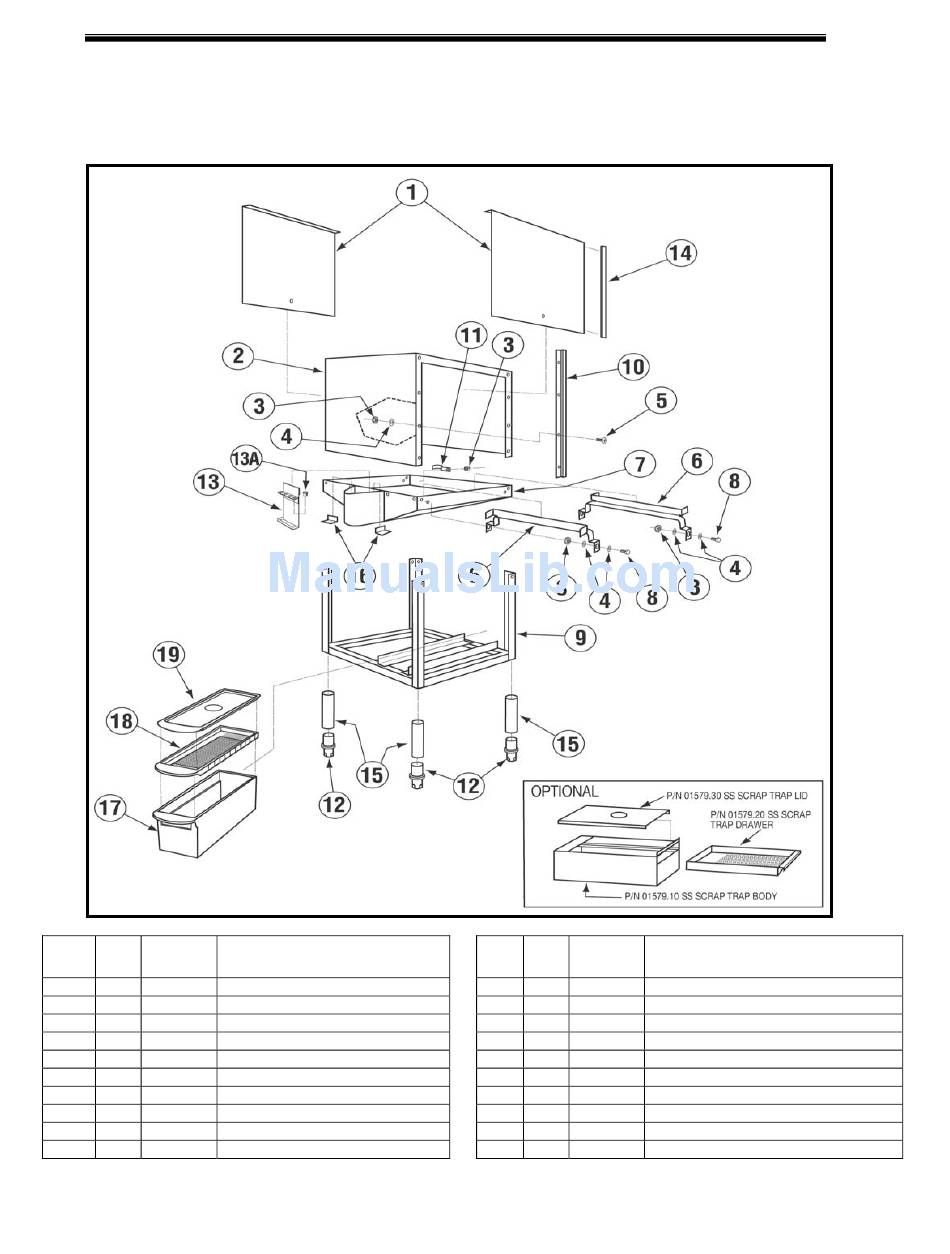

Exploded View Drawings

1.2.1. Cabinet Assembly for Model AH

ITEM NO.
P/N
NO. REQ'D
1 2 01506.30 Door
2 1 01530.02 Wrapper
3 33 00912.00 1/4-20 Lock Nut
4 50 00926.00 SS Washer 1/4"
5 16 00905.00 1/4-20 x 1/2" Truss Head Bolt
6 1 01505.02 Tray Track (Set)
7 1 01531.02 Pan
8 17 00906.00 1/4-20 x 1/2" Hex Head Bolt
9 1 01532.52 Frame Stand
10 4 01554.30 EZ Glide Door Guide SS
MODEL AH, B & C PARTS MANUAL Rev. 1.02
DESCRIPTION
Parts
ITEM NO.
P/N
NO. REQ'D
11 3 00725.50 1/2" Plumbing Strap
12 4 01310.00 Bullet Foot
13 1 01558.20 Chemical Tube Support Bracket
13A 4 00427.00 Line Bracket Snap Bushing
14 4 00636.10 EZ Glide Plastic Guide
15 4 01572.10 SS Leg (A, AH, C, B)
16 2 01571.00 Drain Baffle
17 1 01577.10 Scrap Trap Body Molded
18 1 01577.20 Scrap Trap Drawer Molded
19 1 01577.25 Scrap Trap Lid Molded
DESCRIPTION
Page
4
