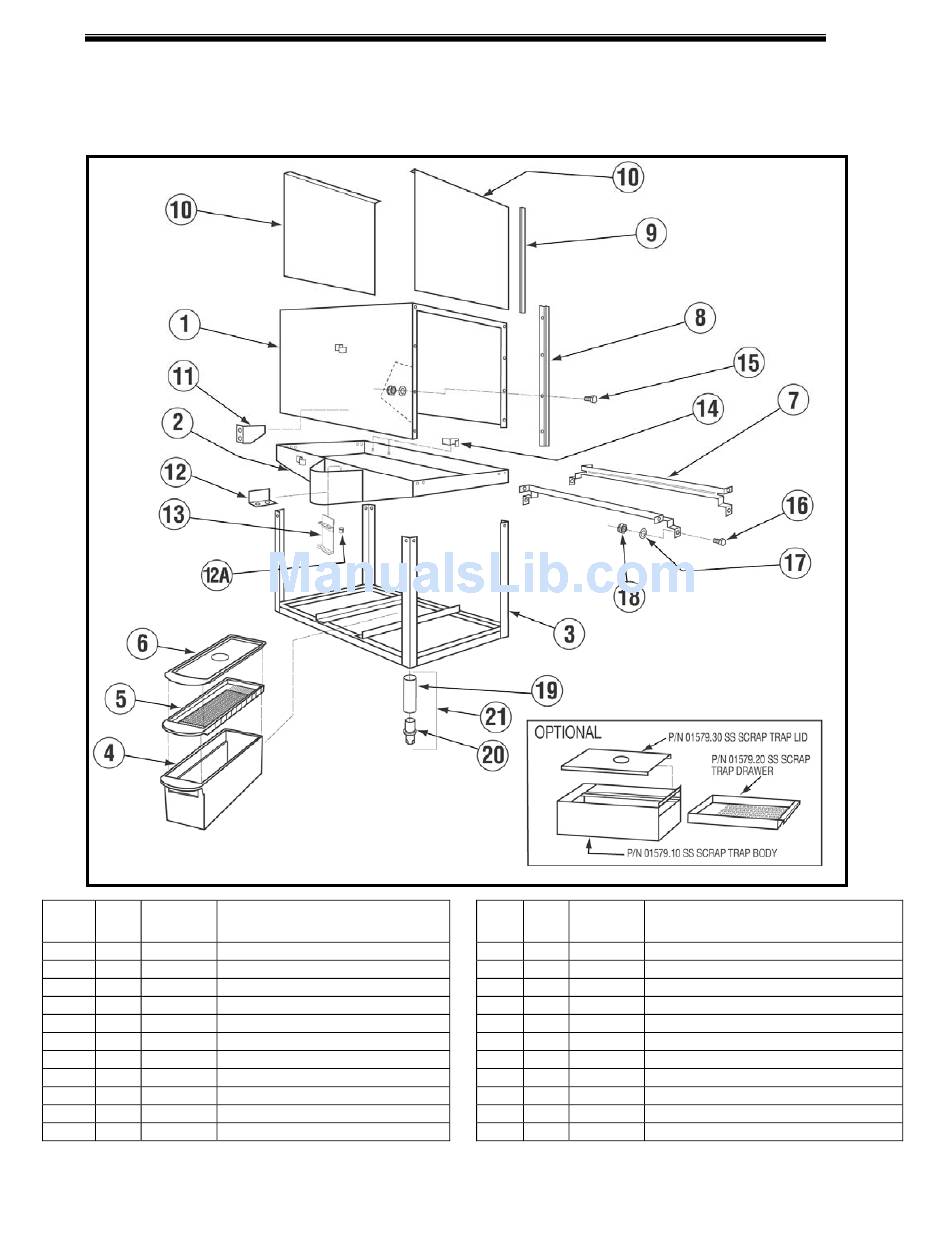

1.2.2. Cabinet Assembly for Model B

ITEM NO.
P/N
NO. REQ'D
1 1 01530.03 Wrapper (TM-B)
2 1 01501.03 Pan Double (B)
3 1 01532.53 Stand TM-B (w/o Legs)
4 1 01577.10 Scrap Trap Body Molded
5 1 01577.20 Scrap Trap Drawer Molded
6 1 01577.25 Scrap Trap Lid Molded
7 1 01505.03 Tray Track B (Set of 2)
8 4 01554.30 EZ Glide Door Guide SS 21 1/8"
9 4 00636.10 EZ Glide Door Guide (Plastic)
10 2 01506.30 SS Door (A, B, C, M, CMA-44)
11 2 01505.13 Support Bracket for B Tray Track
MODEL AH, B & C PARTS MANUAL Rev. 1.02
DESCRIPTION
Parts
ITEM NO.
P/N
NO. REQ'D
12 2 01571.00 Drain Baffle
12A 4 00427.00 Snap Bushing 375-4
13 1 01558.20 Chemical Tube Support Bracket
14 3 00725.50 1/2" Plumbing Strap
15 16 00905.00 Trusshead Bolt 1/4"-20 x 1/2"
16 22 00906.00 Hex Head Bolt 1/4"-20 x 1/2"
17 72 00924.00 SS Washer, 1/4"
18 38 00912.00 SS Nylon Lock Nut, 1/4"
19 4 01572.10 SS Leg (A, AH, C, B)
20 4 01310.00 Bullet Foot
21 --- 01145.00 Leg Assembly, 10" w/Bullet Foot
DESCRIPTION
Page
5
