Summary of Contents for CMA Dishmachines CMA-66H

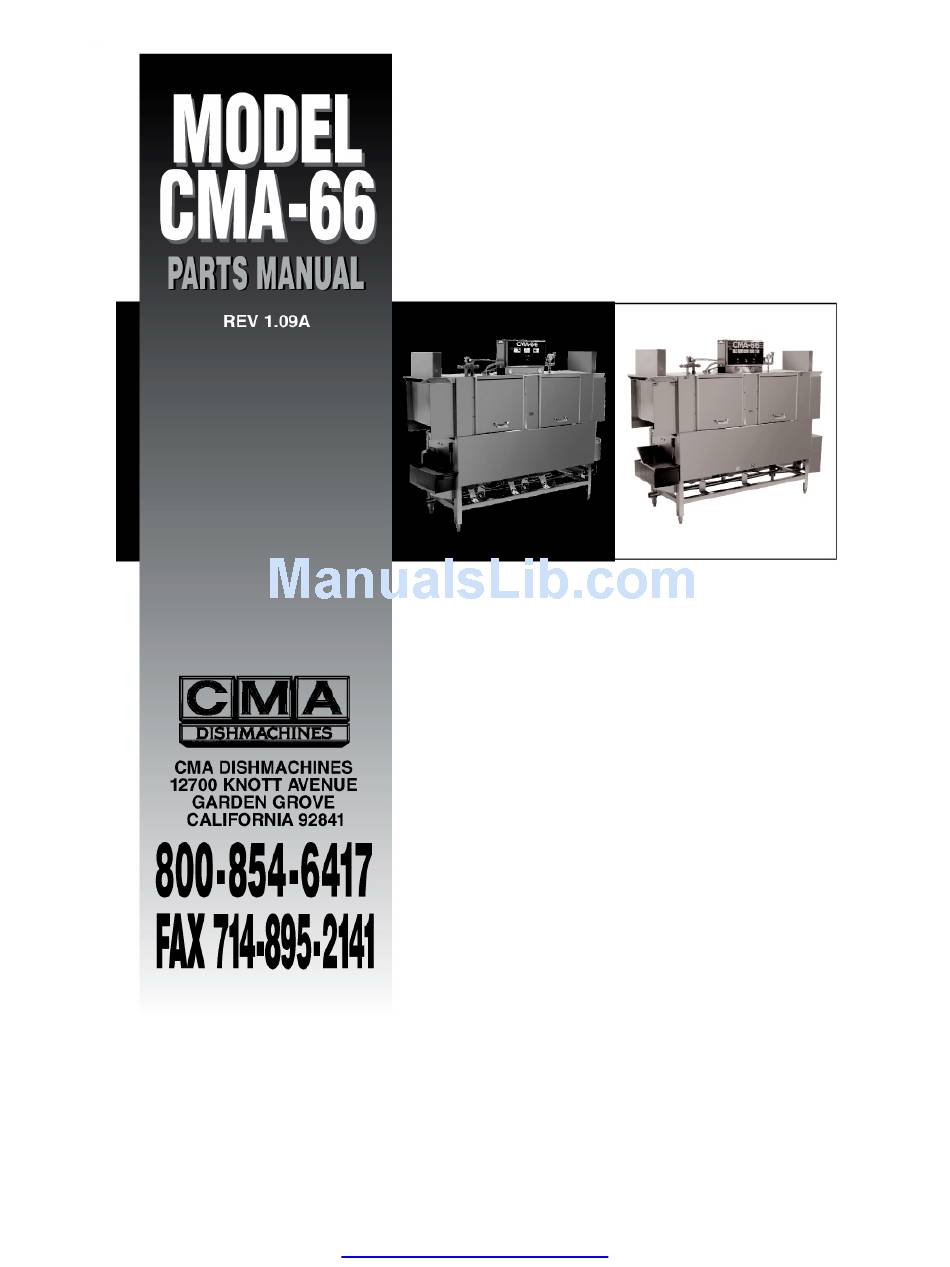

  • Page 1 www.cmadishmachines.com...

  • Page 2: Table Of Contents

    Rocker Arm Assembly ... 20 1.3.12. Rocker Arm Assembly (Old Models)... 21 1.3.13. Trip Switch Assembly... 22 1.3.14. Paddle Switch Assembly ... 23 TABLE LIMIT SWITCH INSTRUCTIONS (P/N 13469.20) ... 24 DRAIN WATER TEMPERING KIT P/N13470.00 INSTRUCTIONS ... 26 www.cmadishmachines.com CMA-66...

  • Page 3: Parts Manual

    Delay On Break Timer 230V 6-240Sec 13418.25 Auto Fill Timer 230v 13463.10 Liquid Level Switch, SS – M-2 13501.85 Motor 1/3Hp 200-230/460 60hz 3ph 13507.65 Cma Bearing Assy (New Dec 2007) 13508.70 Heavy Duty Clutch Spring MODEL CMA-66 PARTS MANUAL rev. 2.09 Parts Manual DESCRIPTION...

  • Page 4: Initial Parts Kit (P/N 13996.80)

    13403.26 Fuse, 3-Amp/250V Slow Blow 13417.80 Immersion Heater, 3Ph/1Ph, 208-230V, 10kW 13418.85 60-Second Timer Relay 13463.10 Liquid Level Switch, SS – CMA-44 13501.85 Motor 1/3Hp 200-230/460 60hz 3ph 13507.50 Cam Bearing, SS 13508.60 Swivel Hook Spring Assembly MODEL CMA-66 PARTS MANUAL rev. 2.09...

  • Page 5: Exploded View Drawings

    Tray Track Rail 00914.10 1/4-20 x 5/8” Hex Head Bolt 13511.26 Overflow Chute Gasket 13511.06 L-R Overflow Chute 13927.06 L-R Heater Cover MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 13927.16 R-L Heater Cover 13910.82 Strainer Basket, Wash/Rinse 13913.00 Drip Chute 13542.00...

  • Page 6: Parts Manual

    Tray Track Rail 00914.10 1/4-20 x 5/8” Hex Head Bolt 13511.26 Overflow Chute Gasket 13511.06 L-R Overflow Chute 13927.06 L-R Heater Cover MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 13927.16 R-L Heater Cover 13910.82 Strainer Basket, Wash/Rinse 13913.00 Drip Chute 13542.00...

  • Page 7: Cabinet Assembly (Effective 08/2001)

    1/4-20 x 5/8” Hex Head Bolt 13511.26 Overflow Chute Gasket 13511.06 L-R Overflow Chute 13511.16 R-L Overflow Chute 13408.82 Trip Switch Cover MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 13927.06 L-R Heater Cover 13927.16 R-L Heater Cover 13910.82 Strainer Basket, Wash/Rinse 13913.00...

  • Page 8: Control Box Assembly

    Ice Cube Relay 220 V 13003.70 Toggle Switch SPDT 20AMP 00470.10 Toggle Switch Rubber Boot 13003.62 Din Rail Mounting Bracket 17503.17 Control Box Sponge, Long MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 17503.18 Control Box Sponge, Short 00474.00 Toggle Switch Braket 00454.06 6-Pole Terminal Block 13418.20...

  • Page 9: Control Box Assembly (Old Models)

    Thermometer Bracket 00454.06 6-Pole Terminal Block 13003.70 Timer Relay Override Switch 00470.10 Toggle Switch Rubber Boot 13003.60 Starter DIN Rail MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 17503.17 Control Box Sponge, Long 17503.18 Control Box Sponge, Short 00421.87 Rocker Switch, White 00421.26...

  • Page 10: Curtain And Optional Vent System

    Double Curtain Splash Guard Bracket 13705.00 Curtain Rod, Short 13705.10 Curtain Rod, Long 13901.84 Hood Adapter Set MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 13704.16 Dual Curtain Holder (Right to Left) 13704.36 Dual Curtain Holder (Left to Right) 13704.46...

  • Page 11: Temperature Control System

    Liquid Level Switch, SS 13417.89 Thermostat 12KW Heater 03202.00 Thermometer 13463.50 Liquid Level Switch Shield * Includes P/N 13417.89 Thermostat w/c can be ordered separately MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 13416.10 Thermostat Bracket 13417.45 Heater Gasket 00901.00...

  • Page 12: Pump Assembly

    04204.00 Compression Nut, 2.5” 13916.00 Motor Support Bracket 00906.00 1/4-20 x 1/2” Hex Bolt 00922.00 1/4” Lock Star Washer MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM REQ’D 00924.00 1/4” SS Washer 00912.00 1/4-20 Nylon Lock Nut 00921.00 3/8-16 x 3/4” SS Hex Head Bolt 13829.00...

  • Page 13: Drain System Assembly

    Drain Manifold 20500.06 Waste Drain Valve 01317.17 1-1/2” x 2” No Hub 03001.82 Drain Pipe Support Bracket 50109.00 Hose Clamp MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 00912.00 1/4-20 Lock Nut 00924.00 1/4“ Washer, SS 13024.00 Dynamite Plug, 2”...

  • Page 14: Plumbing System Assembly (Auto-Fill)

    3/4” 90° Street Elbow 00781.00 3/4” x 3-1/2” Nipple, Brass 00749.00 Coupling 3/4” Brass 01525.06 Plumbing Support Bracket 00710.50 3/4” Vacuum Breaker*** MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 00735.00 3/4” Vacuum Breaker Repair Kit 00735.60 3/4” Vacuum Breaker Bonnet 00739.50 Vacuum Breaker Cap 00421.51...

  • Page 15: Plumbing System Assembly (Final Rinse)

    1/2” Vacuum Breaker Repair Kit 04204.00 Compression Nut, 2.5” 00421.51 6-32 x 1/4” SS Panhead Screw 00739.50 Vacuum Breaker Cap MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM REQ’D 00743.10 1/2” Tee, F x F x F 03614.00 1/2” Close Nipple, Brass 13602.20...

  • Page 16: Plumbing System Assembly (Old Models)

    1/2” Tee, F x F x F 01525.06 Plumbing Support Bracket 13610.30 1/2” Union, SS *Includes Items 2, 3 and 4. **Includes Items 7A, 7B, 25C and 25D. MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 00747.30 1/2” x 3” SS Nipple 13669.60 Mixing Chamber, 1/2”...

  • Page 17: Wash System Assembly

    Final Rinse Spray Jets, SS 13618.00 1/2” Coupling 00721.20 1/2" Jamb Nut, Brass 13629.00 1/2" Close Nipple, SS *Includes Item 7A MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 13630.00 1/2”F x F x F Tee, SS 13307.00 Final Rinse Tube, 23-1/2”...

  • Page 18: Wash System Assembly (Old Models)

    00721.20 1/2" Jamb Nut, Brass 13629.00 1/2" Close Nipple, SS 13630.00 1/2”F x F x F Tee, SS *Includes Item 7A MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 13307.00 Final Rinse Tube, 23-1/2” 13628.00 1/2" 90° Elbow, F x F, SS 13301.26...

  • Page 19: Rocker Arm Assembly

    13509.12 CMA 44 Rocker Shaft Bearing 13510.10 Bearing Shaft 00922.00 1/4" Lock Star Washer 00914.00 1/4-20 x 3/4" Hex Head Bolt MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 13808.00 1/2-13 x 3-1/2” 13809.00 1/2-13 Nylon Lock Nut 00912.00 1/4-20 Nylon Lock Nut 13514.85...

  • Page 20: Rocker Arm Assembly (Old Models)

    1/4" Lock Star Washer 00914.00 1/4-20 x 3/4" Hex Head Bolt 13808.00 1/2-13 x 3-1/2” 13809.00 1/2-13 Nylon Lock Nut *Includes Items 2 through 8. MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 00912.00 1/4-20 Nylon Lock Nut 13514.85 Conveyor Bar 13515.00...

  • Page 21: Trip Switch Assembly

    00557.56 Reed Switch 13408.63 Reed Switch Bracket 00965.00 6-32 Nylon Lock Nut 00924.00 ¼” SS Washer 00906.00 ¼” –20 x ½” Hex Head Bolt 00912.00 ¼” – 20 Nylon Lock Nut MODEL CMA-66 PARTS MANUAL rev. 2.09 DESCRIPTION DESCRIPTION Page...

  • Page 22: Paddle Switch Assembly

    Paddle Support Brackets 00557.56 Kynar Reed Switch 13409.30 PS Reed Switch Bracket 00914.00 1/4-20 x 3/4" Hex Head Bolt 00912.00 1/4-20 Nylon Lock Nut MODEL CMA-66 PARTS MANUAL rev. 2.09 ITEM DESCRIPTION REQ’D 00109.00 Shoulder Bolt 13409.85 Paddle Switch Assembly, R-L 13409.84 Paddle Switch Assembly, L-R 03801.00...

  • Page 23: Table Limit Switch Instructions (P/N 13469.20)

    Parts Manual 2. Table Limit Switch Instructions (P/N 13469.20) MODEL CMA-66 PARTS MANUAL rev. 2.09...
  • Page 24 (see note 1 of the wiring diagram). Then, attach the other ends of the two wires to the terminal block (it does not matter which table limit switch wire you attach to either terminal because it is only a loop). MODEL CMA-66 PARTS MANUAL rev. 2.09 DESCRIPTION 00400.00 Conduit 3/8 sealtite 00401.00...

  • Page 25: Drain Water Tempering Kit P/N13470.00 Instructions

    3. Mount solenoid valve (7) mounting bracket on the top of the machine next to rinse solenoid valve. 4. Attach flex fitting (4) to the overflow chute. 5. Attach 1/4” cold water copper line (not supplied) to the compression fitting (8). MODEL CMA-66 PARTS MANUAL rev. 2.09 Page...
